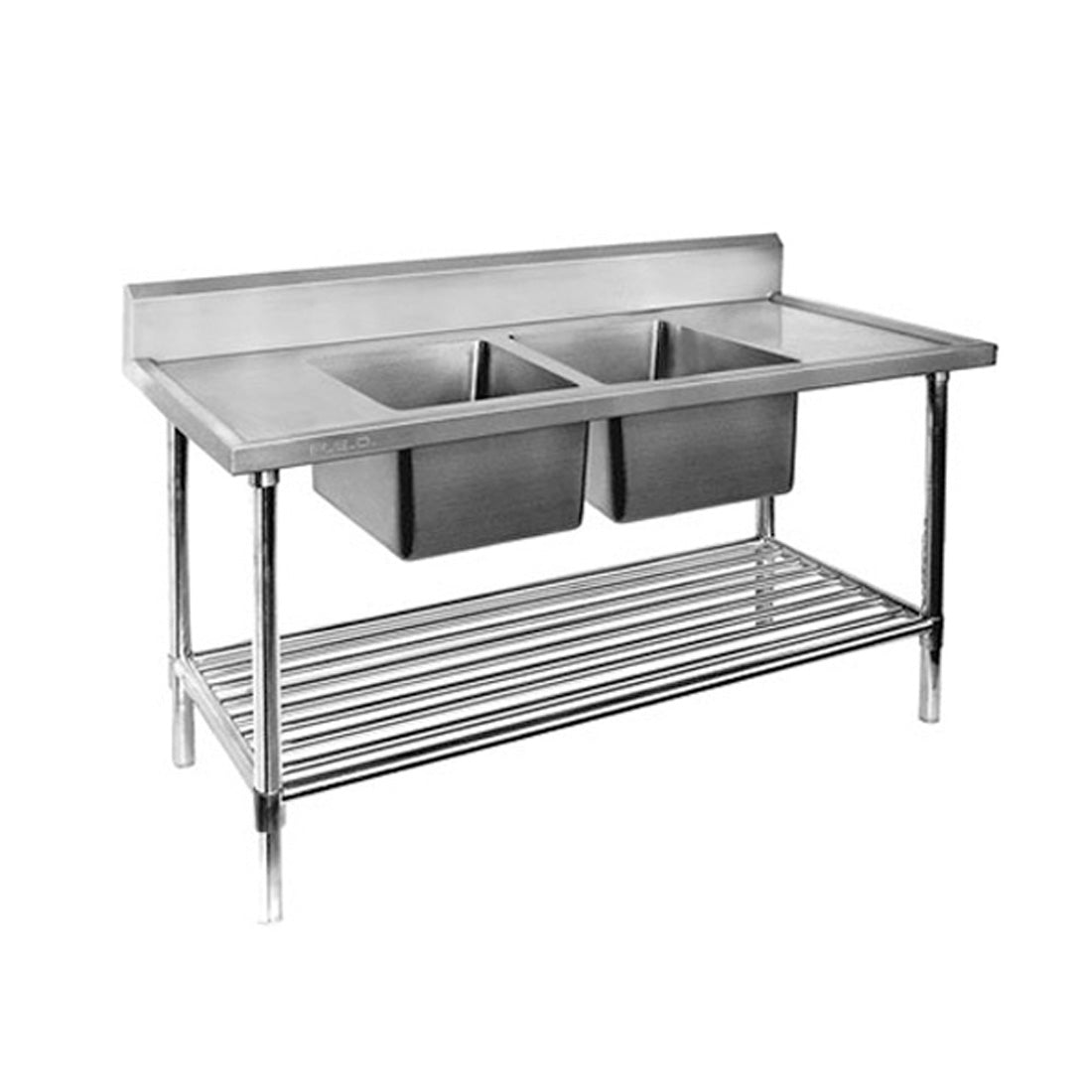

Modular Systems DSB7-2400C/A Double Centre Sink Bench with Pot Undershelf

Overview

Modular Systems DSB7-2400C/A Double Centre Sink Bench with Pot Undershelf

The Modular Systems DSB7-2400C/A is a 2400mm wide all-stainless steel double centre sink bench designed for the rigorous demands of commercial kitchens, restaurants, cafés, and catering facilities. Constructed from 1.2mm SUS304 (18/8) grade stainless steel throughout, it combines a fully welded, dual-bowl sink with generous benchtop workspace and a sturdy pot undershelf, delivering a complete washing and preparation station in a single unit.

Supplied flat-packed with an instruction manual and all required tools, the bench is engineered for quick and straightforward assembly. The 2400mm width requires six legs for enhanced structural support, and the benchtop is reinforced with XPS board lining and stainless steel 'U' channel supports beneath, ensuring the unit withstands the load and pace of high-volume food service operations day after day.

Key Benefits

• Centre-positioned bowls keep both sides of the bench free as active prep zones, improving workflow efficiency during busy service periods.
• Fully welded bowls polished inside and out eliminate crevices where bacteria can harbour, supporting food-safe hygiene standards.
• Flat-packed delivery with included tools and instruction manual simplifies transport and reduces installation time and cost.
• Fully adjustable stainless steel polished disc feet allow precise levelling on uneven kitchen floors, ensuring a stable working surface.
• Optional lockable castor kits (available separately) allow the bench to be repositioned easily for cleaning or kitchen reconfiguration.
• XPS board-lined benchtop with stainless steel 'U' channel reinforcements provides added rigidity and reduces flex under heavy loads.
• The free optional leg brace (in place of the pot undershelf, specified at time of order) offers configuration flexibility to suit different storage or workflow requirements.
• A two-year parts-only warranty provides added peace of mind for commercial kitchen operators investing in long-term infrastructure.

Key Features

• 2400mm wide configuration with six legs for increased structural stability
• Double centre sink bowl positioning with two bowls each measuring 450mm W x 450mm D x 300mm H
• 90mm diameter drain hole per bowl
• 15mm wet edge around sink bowls to contain splashing and direct water into the bowl
• All components manufactured from 1.2mm SUS304 (18/8) grade stainless steel
• Bowls are fully welded and polished both inside and out
• Benchtop lined with 15mm thick XPS board and a stainless steel panel for insulation and rigidity
• Special stainless steel 'U' channel reinforcements under the benchtop; number of channels increases with bench width
• Splashback: stainless steel backed, 150mm high, 40mm thick, bevelled and fully enclosed
• Legs: 1.2mm stainless steel, 42mm diameter round tube
• Fully adjustable stainless steel polished disc feet for precise levelling
• Lockable castor kits available as an optional accessory
• Pot undershelf constructed from 1.2mm SUS304 (18/8) stainless steel; outer frame tubes 38mm diameter x 1.2mm, inner tubes 25mm diameter x 1mm with 40mm spacing
• Free optional leg brace available as an alternative to the pot undershelf; must be specified at time of order
• Supplied flat-packed for ease of transport and storage prior to installation
• Includes instruction manual and assembly tools
• Specially designed for quick and simple assembly
• Two-year parts-only warranty

Specifications

• Width (mm): 2400
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 75.1
• Packed Width (mm): 770
• Packed Depth (mm): 2470
• Packed Height (mm): 530
• Shipping Weight: 252
• Warranty (months): 2 Years Parts Only
