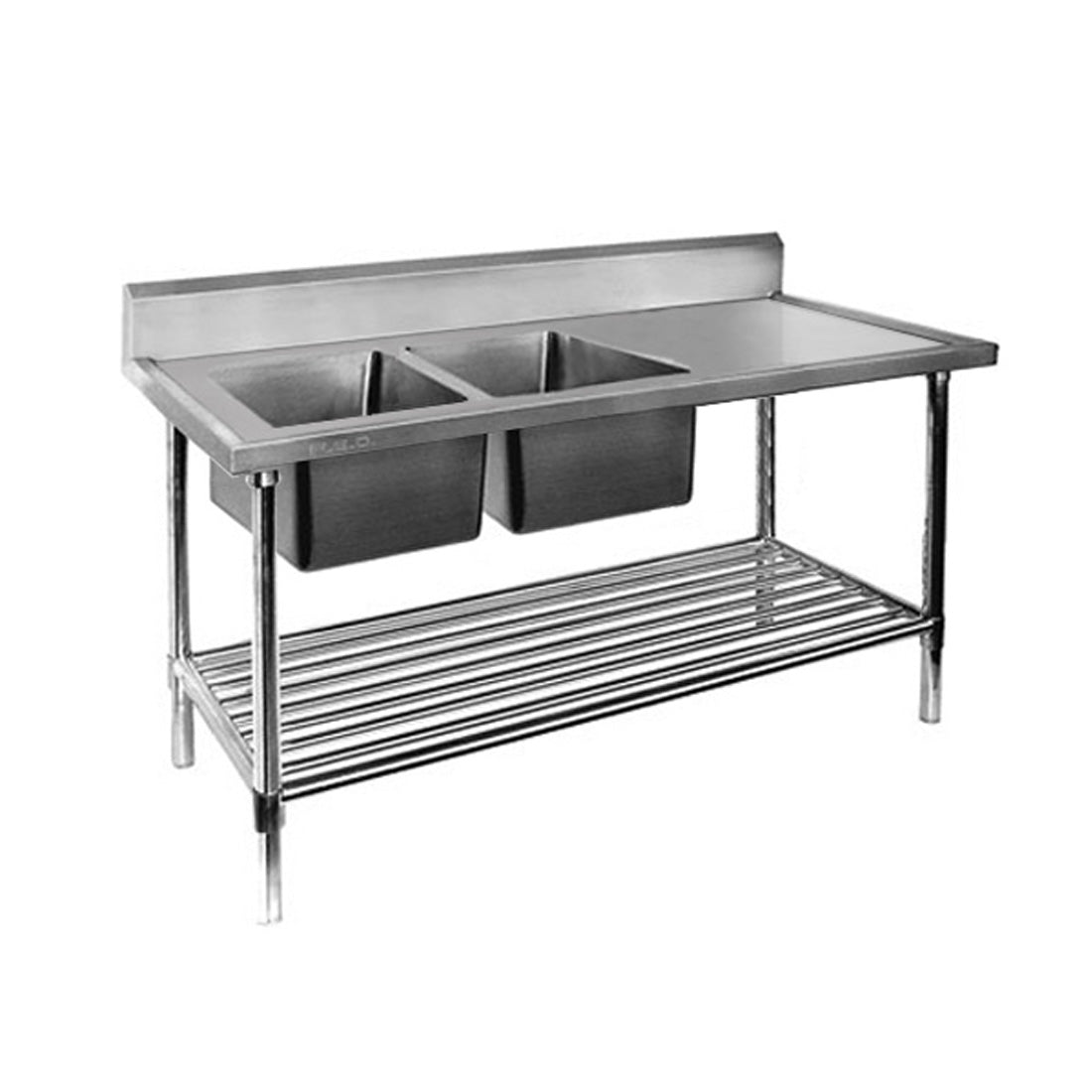

Modular Systems DSB7-2400L/A Double Left Sink Bench with Pot Undershelf

Overview

Modular Systems DSB7-2400L/A Double Left Sink Bench with Pot Undershelf 2400mm

The Modular Systems DSB7-2400L/A is a 2400mm wide all-stainless-steel sink bench purpose-built for demanding commercial kitchen environments. Featuring dual bowls in a left-positioned layout, a generous benchtop work surface, and an integrated pot undershelf, it delivers a complete washing and preparation station in a single robust unit suited to restaurants, cafes, catering facilities, and hospitality venues.

Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, this bench arrives flat-packed with an instruction manual and tools for quick, straightforward on-site assembly. The 2400mm width requires six legs for added structural support, and a free optional leg brace is available as an alternative to the pot undershelf if preferred. Fully adjustable polished stainless steel disc feet provide stable, level placement on uneven floors, while optional lockable castor kits allow easy repositioning for cleaning or reconfiguration.

Key Benefits

• Left-positioned dual-bowl layout supports logical workflow sequencing, separating rinsing and washing tasks to improve kitchen efficiency.
• Fully welded bowls polished inside and out eliminate crevices where bacteria can harbour, making sanitation faster and supporting food safety compliance.
• XPS board-lined benchtop with stainless steel panel and SUS304 steel construction resists heavy daily use, moisture, and the rigours of a high-volume kitchen.
• Integrated pot undershelf keeps cookware and utensils off the floor and within easy reach, reducing clutter and improving prep-area organisation.
• Flat-pack delivery with included tools and instruction manual minimises freight costs and allows rapid assembly without specialist trades.
• Fully adjustable stainless steel polished disc feet compensate for uneven floors and keep the bench stable and hygienic, with optional lockable castors for mobility.
• Special stainless steel 'U' channel reinforcements beneath the benchtop increase rigidity across the full 2400mm span, maintaining a flat, reliable work surface under load.
• The 90mm diameter drain hole accommodates standard commercial plumbing fittings, simplifying installation and ensuring fast, efficient water outflow.
• A free optional leg brace in lieu of the pot undershelf provides configuration flexibility to suit different kitchen layouts and storage needs.

Key Features

• Overall dimensions: 2400mm wide x 700mm deep x 900mm high
• Left bowl positioning with two bowls, each 450mm wide x 450mm deep x 300mm high
• 90mm diameter drain hole per bowl, compatible with standard commercial plumbing
• Bowls fully welded and polished inside and out for hygiene and durability
• 15mm wet edge around bowls for added strength and water containment
• All construction in 1.2mm SUS304 (18/8) stainless steel
• Benchtop lined with 15mm XPS board and stainless steel panel for insulation and rigidity
• Special stainless steel 'U' channel reinforcements under the benchtop; number of channels increases with bench width
• Splashback: stainless steel backed, 150mm high, bevelled and fully enclosed
• Six legs supplied for the 2400mm wide configuration (4 legs on narrower models)
• Legs: 1.2mm stainless steel, 42mm diameter
• Fully adjustable stainless steel polished disc feet for levelling on uneven surfaces
• Optional lockable castor kits available for repositioning
• Pot undershelf in 1.2mm SUS304 (18/8) stainless steel; outer frame tubes 38mm diameter x 1.2mm, inner tubes 25mm diameter x 1mm with 40mm spacing
• Free optional leg brace available as an alternative to the pot undershelf; must be specified at time of order
• Supplied flat-packed for ease of transport and reduced freight cost
• Includes instruction manual and tools for assembly
• Designed for quick and simple on-site assembly
• 2 years parts-only warranty

Specifications

• Width (mm): 2400
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 74.75
• Packed Width (mm): 770
• Packed Depth (mm): 2470
• Packed Height (mm): 530
• Shipping Weight: 252
• Warranty (months): 2 Years Parts Only
• Capacity (Litres): 1500
