Modular Systems DSB7-2400R/A Double Right Sink Bench with Pot Undershelf

Overview

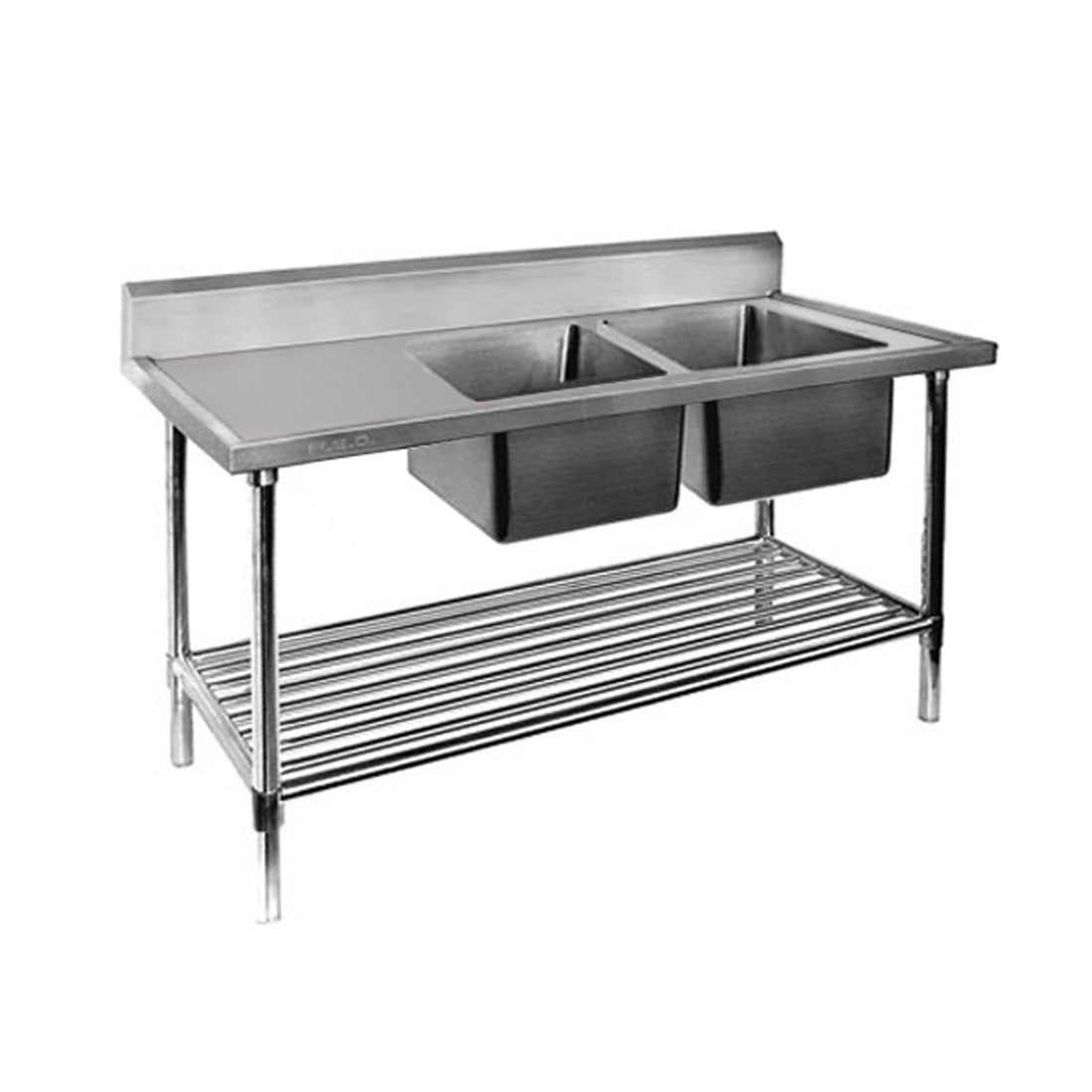

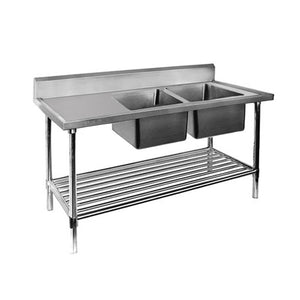

Modular Systems DSB7-2400R/A Double Right Sink Bench with Pot Undershelf 2400mm

The Modular Systems DSB7-2400R/A is a 2400mm wide all-stainless steel double right sink bench designed for demanding commercial kitchen and hospitality environments. Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, it combines a generous benchtop work surface with two fully welded, polished bowls positioned to the right and an integrated pot undershelf, delivering a complete washing and staging station in a single unit.

Supplied flat-packed with an instruction manual and all required tools, the bench is engineered for quick and straightforward assembly. The modular design suits restaurants, cafes, catering facilities and institutional kitchens where hygiene, workflow efficiency and long-term durability are essential. A free optional leg brace is available as an alternative to the pot undershelf and must be specified at the time of ordering.

Key Benefits

• Fully welded and polished bowl interiors and exteriors resist corrosion and are easy to sanitise, supporting high standards of kitchen hygiene.
• Large 90mm diameter drain holes promote fast water clearance and reduce the risk of blockages during high-volume washing periods.
• XPS board-lined benchtop with stainless steel panel and 'U' channel reinforcements underneath provides a rigid, impact-resistant work surface that withstands heavy daily use.
• Six legs on this 2400mm model deliver enhanced structural stability compared to smaller bench configurations, keeping the unit firm under load.
• Fully adjustable polished stainless steel disc feet allow the bench to be levelled precisely on uneven floors, preventing rocking and liquid pooling.
• Flat-packed supply with included tools and instruction manual simplifies transport, site delivery and on-site assembly without specialist labour.
• Optional lockable castor kits allow the bench to be repositioned easily during kitchen reconfiguration or deep cleaning.
• The free optional leg brace (in place of the pot undershelf) provides layout flexibility to suit kitchens where open underfloor access is preferred.
• Integrated pot undershelf offers convenient staging space for pots, pans and equipment directly below the work surface, keeping the kitchen floor clear.

Key Features

• Overall dimensions: 2400mm wide x 700mm deep x 900mm high.
• Double sink bowls positioned to the right of the bench.
• Each bowl measures 450mm wide x 450mm deep x 300mm high with a 90mm diameter drain hole.
• 15mm wet edge along the benchtop perimeter to contain water and prevent spillage onto the floor.
• All components manufactured from 1.2mm stainless steel throughout.
• Benchtop material: 1.2mm SUS304 (18/8) stainless steel, lined with 15mm XPS board and a stainless steel panel for rigidity and insulation.
• Special stainless steel 'U' channel reinforcements under the benchtop; the number of channels increases with bench width for added strength.
• Bowls are fully welded and polished inside and out for corrosion resistance and ease of cleaning.
• Splashback: stainless steel backed, 150mm high, bevelled and fully enclosed.
• Six legs for this 2400mm wide bench (4 legs used on smaller widths).
• Legs: 1.2mm stainless steel, 42mm diameter tubular construction.
• Fully adjustable polished stainless steel disc feet that complement the leg finish.
• Optional lockable castor kits available separately.
• Pot undershelf constructed from 1.2mm stainless steel (18/8); outer frame uses 38mm diameter x 1.2mm tube; inner tubes are 25mm diameter x 1mm tube with 40mm spacing.
• Free optional leg brace available as a substitute for the pot undershelf; must be specified at time of order.
• Supplied flat-packed for efficient transport and storage.
• Includes instruction manual and assembly tools.
• Weight: 75.1kg.
• 2-year parts-only warranty.

Specifications

• Width (mm): 2400
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 75.1
• Packed Width (mm): 770
• Packed Depth (mm): 2470
• Packed Height (mm): 530
• Shipping Weight: 65
• Warranty (months): 2 Years Parts Only
