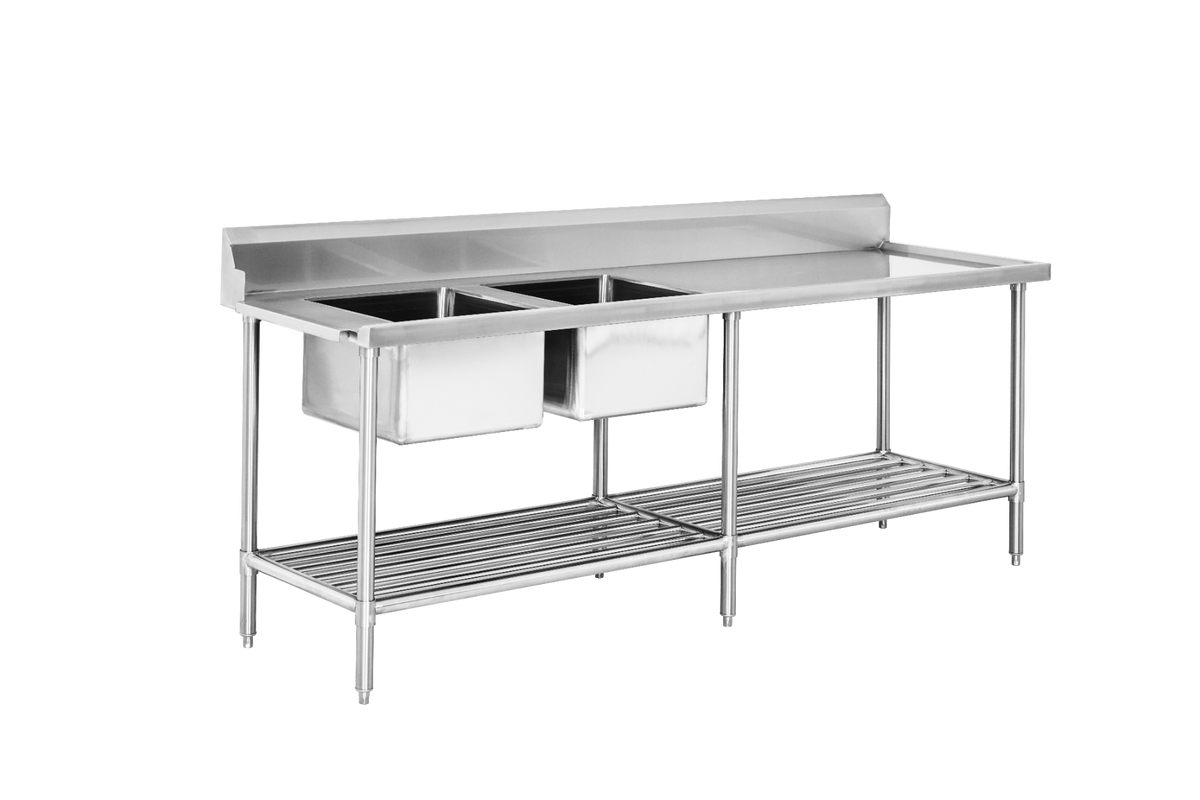

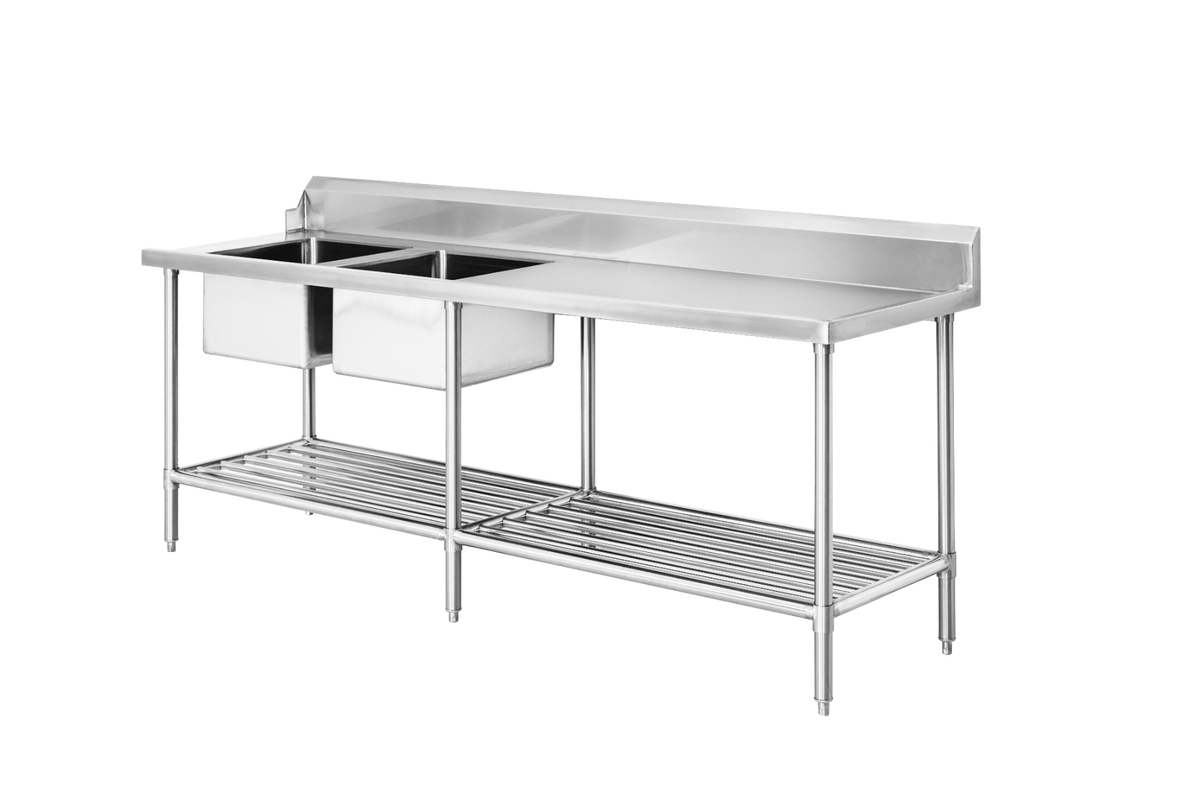

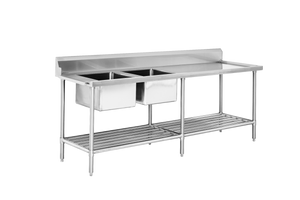

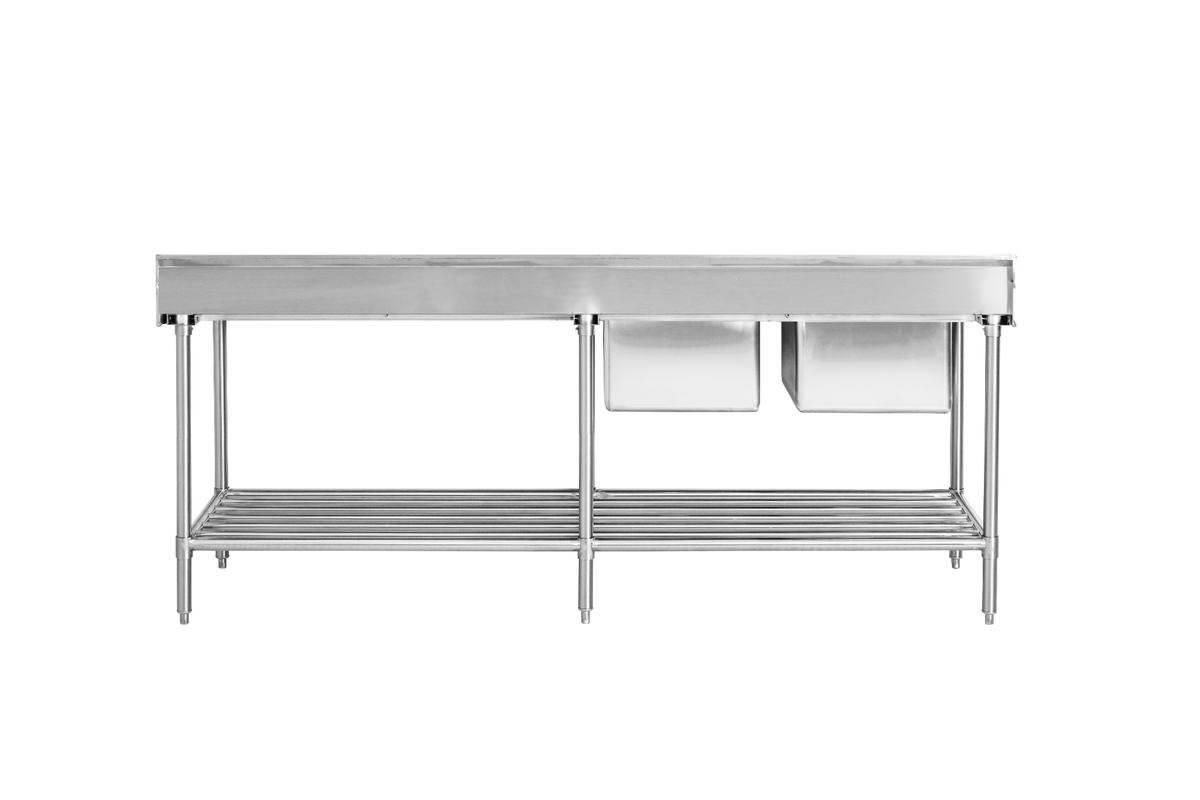

Modular Systems DSBD7-2400L/A Left Inlet Double Sink Dishwasher Bench

Overview

Modular Systems DSBD7-2400L/A Left Inlet Double Sink Dishwasher Bench 2400mm

The Modular Systems DSBD7-2400L/A is a 2400mm wide all-stainless-steel dishwasher inlet bench featuring a double sink configuration with the dishwasher inlet and sinks positioned on the left side when facing the unit. Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, it is purpose-built for high-volume commercial kitchens, restaurants, cafes, and catering operations that demand durability, hygiene, and a well-organised warewashing workflow.

Supplied flat-packed with an instruction manual and all necessary tools, the bench is designed for quick and straightforward assembly. The reinforced benchtop, fully welded and polished sink bowls, bevelled splashback, and adjustable polished disc feet combine to deliver a robust, hygienic workstation that integrates seamlessly with undercounter dishwashers. Optional lockable castor kits are available for added flexibility in kitchen layout.

Key Benefits

• Left-side inlet placement positions the dishwasher connection and sinks on the left when facing the bench, supporting a logical, uninterrupted warewashing flow through the kitchen.
• Fully welded and polished bowl interiors eliminate crevices that harbour bacteria, making the bench easier to clean and helping maintain commercial hygiene standards.
• XPS board lining and stainless steel 'U' channel reinforcements beneath the benchtop provide structural rigidity, with more channels added as bench width increases for consistent strength at 2400mm.
• Fully adjustable stainless steel polished disc feet allow precise levelling on uneven kitchen floors, reducing wobble and improving operator safety.
• Flat-packed delivery with included tools and instruction manual simplifies transport and on-site assembly, minimising installation time and labour costs.
• Optional lockable castor kits allow the bench to be repositioned easily during cleaning or kitchen reconfiguration without compromising stability during service.
• The 15mm wet edge contains water on the benchtop surface, reducing spillage onto the floor and supporting a safer, cleaner working environment.
• Six-leg support on this 2400mm-wide model provides additional stability and weight distribution compared to narrower benches, suited to heavy commercial loads.

Key Features

• Overall dimensions: 2400mm wide x 700mm deep x 900mm high
• Double sink bowl size: 450mm (W) x 450mm (D) x 300mm (H) per bowl
• 90mm diameter drain hole per bowl
• Left inlet configuration: dishwasher inlet and sinks are on the left side when facing the bench
• Bowl positioning available on left or right to suit kitchen layout requirements
• Bowls are fully welded and polished inside and out for hygiene and durability
• 1.2mm SUS304 (18/8) stainless steel construction throughout
• 15mm wet edge on benchtop to contain water and minimise spillage
• Benchtop lined with 15mm XPS board and a stainless steel panel for insulation and rigidity
• Stainless steel 'U' channel reinforcements beneath the benchtop; number of channels increases with bench width
• Six legs on this 2400mm-wide model (standard benches have four legs)
• Legs: 1.2mm stainless steel, 42mm diameter
• Fully adjustable stainless steel polished disc feet that complement the leg finish
• Lockable castor kits available as an optional accessory
• Splashback: stainless steel backed, 180mm high, 30mm thick, bevelled and fully enclosed
• Specially designed for quick and simple assembly
• Supplied flat-packed for ease of transport
• Includes instruction manual and assembly tools
• 2-year parts-only warranty

Specifications

• Width (mm): 2400
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 74.2
• Packed Width (mm): 770
• Packed Depth (mm): 2470
• Packed Height (mm): 530
• Shipping Weight: 65
• Warranty (months): 2 Years Parts Only
• Capacity (Litres): 1800
