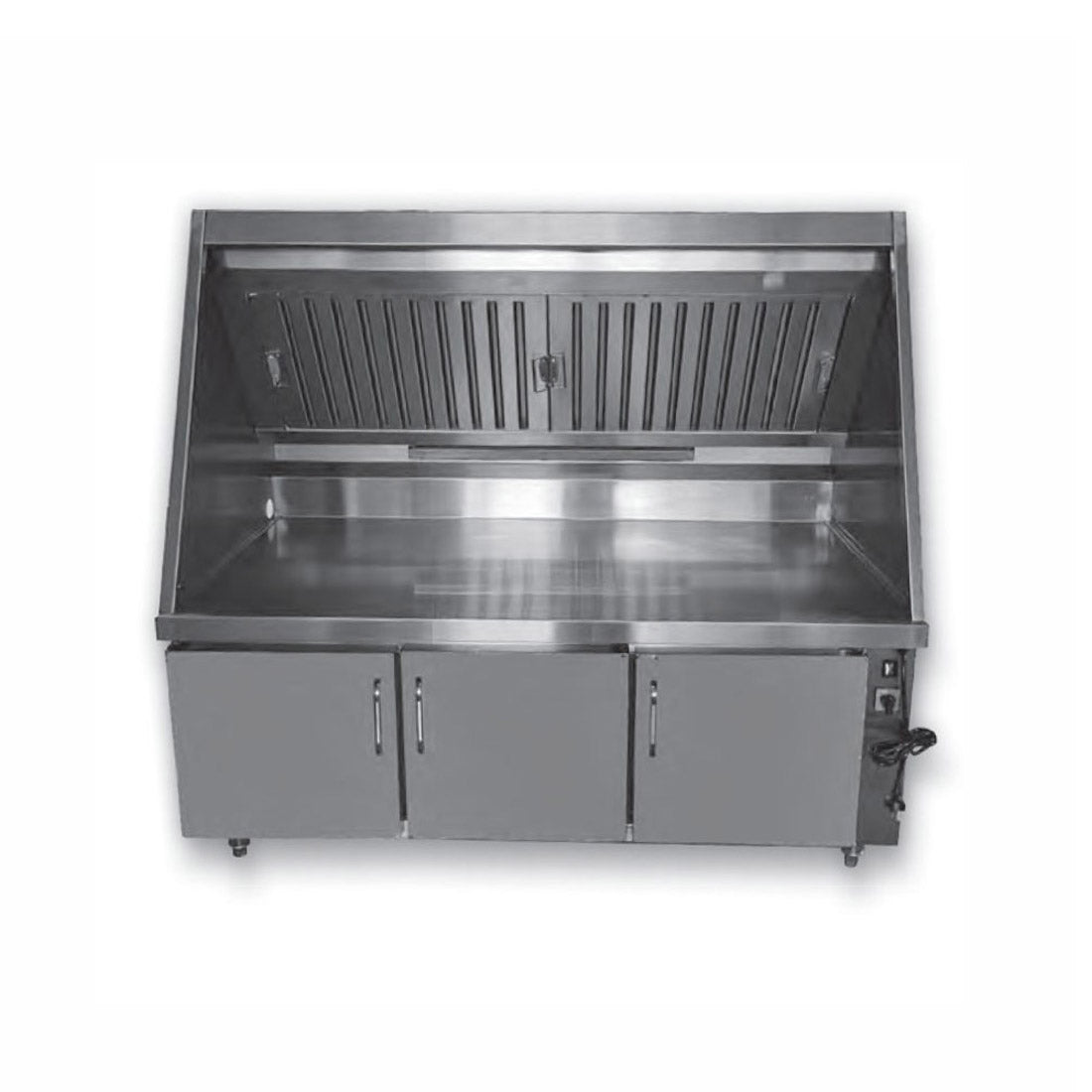

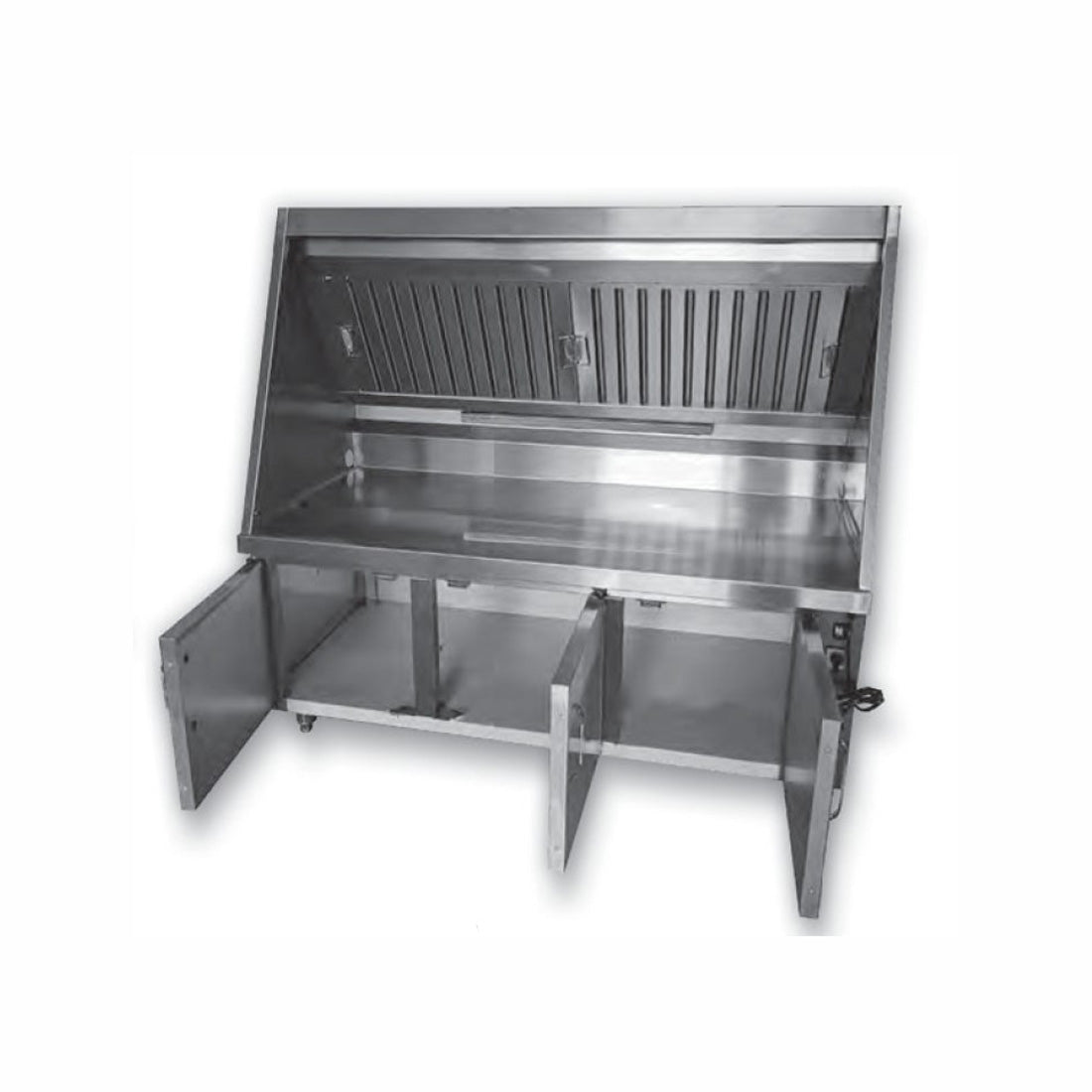

Modular Systems HB1800-750 Range Hood and Workbench System

Overview

Modular Systems HB1800-750 Range Hood and Workbench System

The Modular Systems HB1800-750 combines a commercial range hood with a robust stainless steel workbench into one integrated unit, purpose-built for busy commercial kitchens. Constructed from 304 stainless steel throughout, it accommodates three or four cooking appliances simultaneously and supports electrical loads of up to 8kW total, including three-phase units, making it a versatile centrepiece for high-output kitchen operations.

Designed for practical, day-to-day performance, the HB1800-750 features a quiet yet powerful extraction motor, integrated LED lighting for excellent visibility over the cooking surface, and a multi-stage filtration system comprising three removable standard filters, a replaceable polyester filter and a carbon filter. Heavy-duty legs provide a stable, sturdy platform, and the entire system is backed by a one-year parts and labour warranty.

Key Benefits

• Accommodates up to 8kW of electrical appliances in a single workstation, reducing the need for separate ventilation infrastructure
• Handles three-phase cooking equipment, offering flexibility as your kitchen's appliance needs evolve
• Fits three or four appliances side by side, consolidating your cooking line and maximising bench utilisation
• Quiet motor delivers strong suction without adding excessive noise to a busy kitchen environment
• LED lighting illuminates the cooking surface clearly, improving safety and precision during food preparation
• Multi-stage filtration captures grease, airborne particles and odours, helping maintain a cleaner kitchen atmosphere
• 304 stainless steel construction throughout resists corrosion, tolerates heavy daily use and wipes down quickly for fast, hygienic cleaning
• Heavy-duty legs keep the entire unit stable and secure under the demands of a commercial kitchen
• Simple scheduled filter replacements (polyester every 8 to 12 weeks, carbon annually) keep maintenance straightforward and low-cost

Key Features

• Integrated range hood and workbench system in a single unit
• Constructed from 304 grade stainless steel for durability and hygiene
• Supports electrical appliances with a combined load of up to 8kW
• Compatible with three-phase appliances
• Workbench area accommodates three or four cooking appliances simultaneously
• Quiet extraction motor with strong suction capacity
• Integrated LED lighting for clear illumination of the work surface
• Fitted with three standard removable grease filters
• Includes a polyester filter, recommended replacement every 8 to 12 weeks
• Includes a carbon filter, recommended replacement every 12 months
• Mounted on heavy-duty legs for stability and a sturdy footprint
• Power supply: 240V, 800W, 10A
• 1 year parts and labour warranty

Specifications

• Width (mm): 1800
• Depth (mm): 750
• Height (mm): 1400
• Weight (kg): 605.75
• Packed Width (mm): 1900
• Packed Depth (mm): 850
• Packed Height (mm): 1500
• Shipping Weight: 125
• Power Delivery: 240V; 800W; 10A
• Power (kW): 240
• Warranty (months): 1 Year Parts and Labour
