Modular Systems HB1800-850 Range Hood and Workbench System

Overview

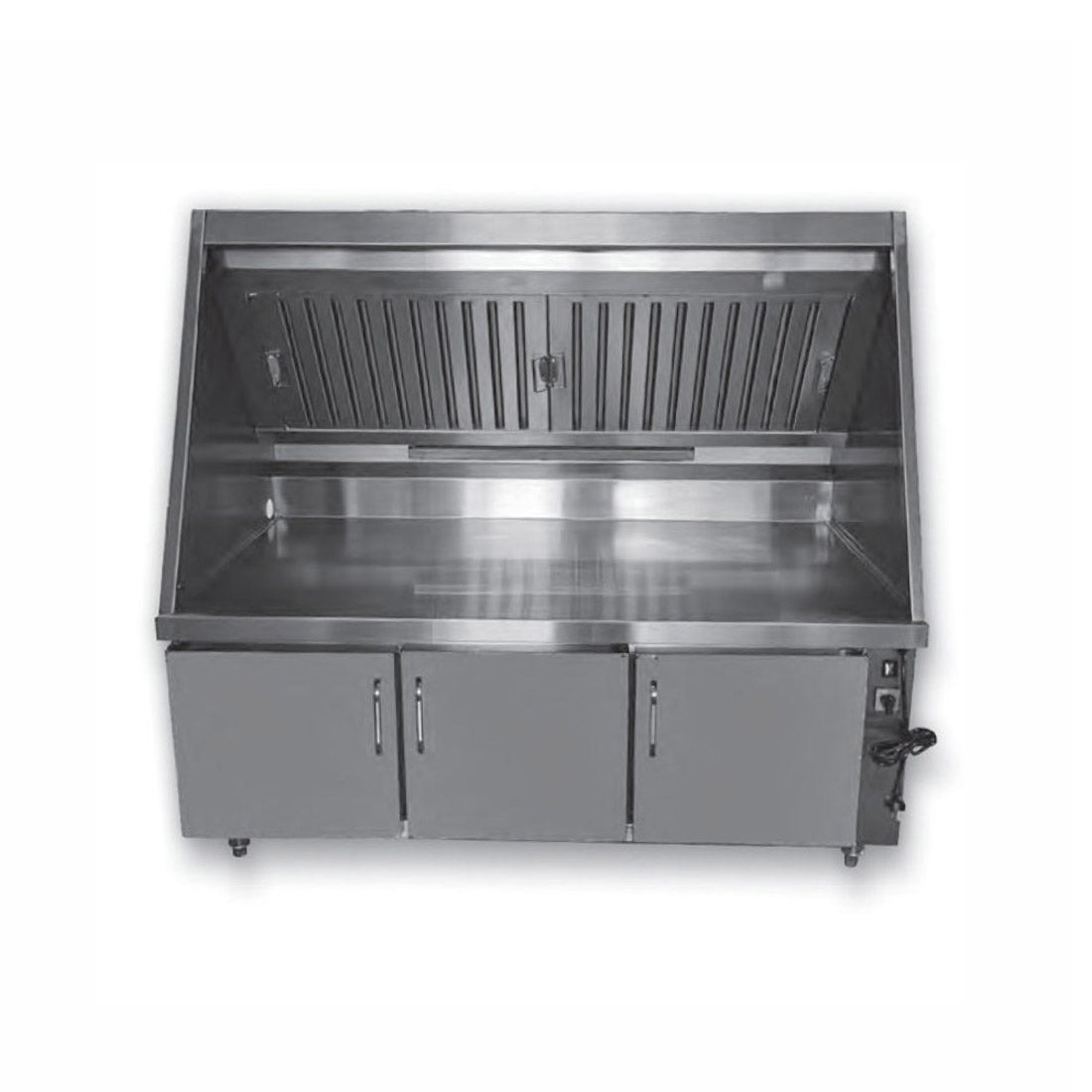

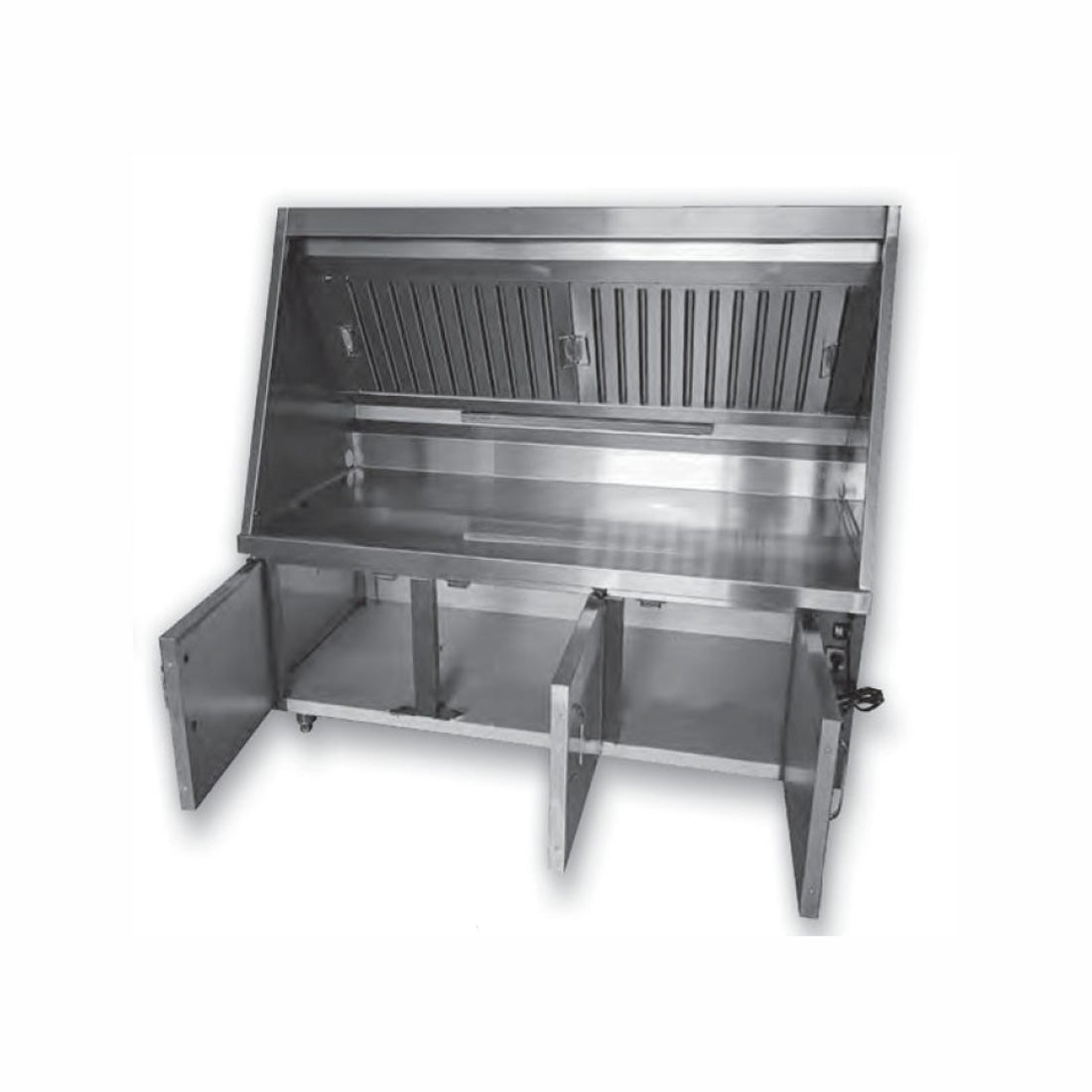

Modular Systems HB1800-850 Range Hood and Workbench System

The Modular Systems HB1800-850 is a combined range hood and workbench system designed to support the demands of a busy commercial kitchen. Constructed from 304 stainless steel throughout, it delivers a hygienic, easy-to-clean work surface alongside a capable ventilation unit, all supported on heavy-duty legs for a stable, professional installation.

This 1800mm wide, 850mm deep system is engineered to accommodate three or four cooking appliances simultaneously, with a total electrical appliance capacity of up to 8kW, including compatibility with 3-phase units. A quiet yet powerful motor, built-in LED lighting, and a three-stage filtration system make it a practical, all-in-one solution for kitchens seeking to consolidate their cooking and extraction setup.

Key Benefits

• Supports three or four appliances at once, reducing the need for multiple extraction points and simplifying kitchen layout.
• Handles electrical appliances up to 8kW total and is compatible with 3-phase units, providing flexibility for a wide range of commercial cooking equipment.
• Quiet motor with strong suction keeps cooking fumes, smoke, and odours under control without creating excessive noise in the kitchen.
• Built-in LED lighting delivers clear, consistent illumination over the cooking and preparation area, improving visibility during service.
• Three-stage filtration system, including removable standard filters, a polyester filter, and a carbon filter, captures grease, particles, and odours effectively.
• 304 stainless steel construction is resistant to corrosion, simple to sanitise, and built to withstand the rigours of heavy daily commercial use.
• Heavy-duty legs provide a sturdy, stable base that supports both the workbench load and the overhead hood assembly.
• Maintenance is straightforward with replaceable filters on a clear schedule, keeping running costs predictable and performance consistent.
• Backed by a 1-year parts and labour warranty for added peace of mind in a commercial environment.

Key Features

• Combined range hood and workbench system in a single integrated unit
• 1800mm wide x 850mm deep workspace, 1400mm overall height
• Full 304 stainless steel construction for hygiene and durability
• Designed to accommodate 3 or 4 cooking appliances simultaneously
• Rated for electrical appliances up to 8kW total load
• Compatible with 3-phase electrical units
• Quiet motor with high suction capacity for effective ventilation
• Integrated LED lights for bright, even illumination over the cooking area
• Fitted with 3 standard removable grease filters
• Includes a polyester filter requiring replacement every 8 to 12 weeks
• Includes a carbon filter requiring replacement every 12 months
• Supplied on heavy-duty legs for a solid, stable installation
• 240V, 800W, 10A power supply
• 1-year parts and labour warranty

Specifications

• Width (mm): 1800
• Depth (mm): 850
• Height (mm): 1400
• Weight (kg): 677
• Packed Width (mm): 1900
• Packed Depth (mm): 950
• Packed Height (mm): 1500
• Shipping Weight: 135
• Power Delivery: 240V; 800W; 10A
• Power (kW): 240
• Warranty (months): 1 Year Parts and Labour
