Overview

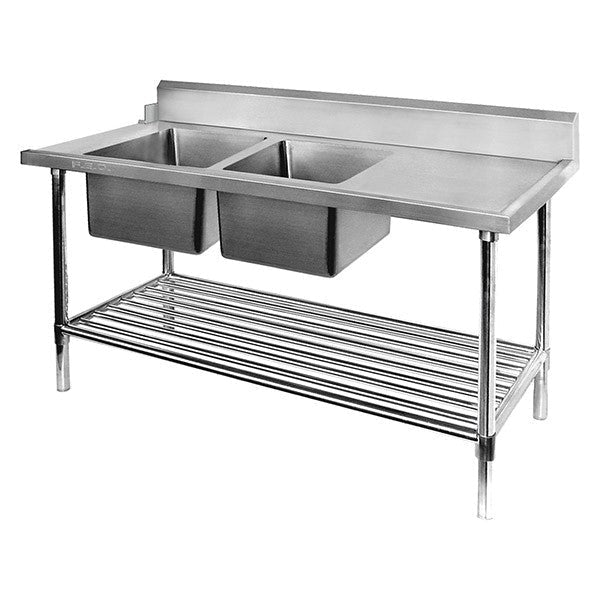

Modular Systems DSBD7-1800L/A Left Inlet Double Sink Dishwasher Bench 1800mm

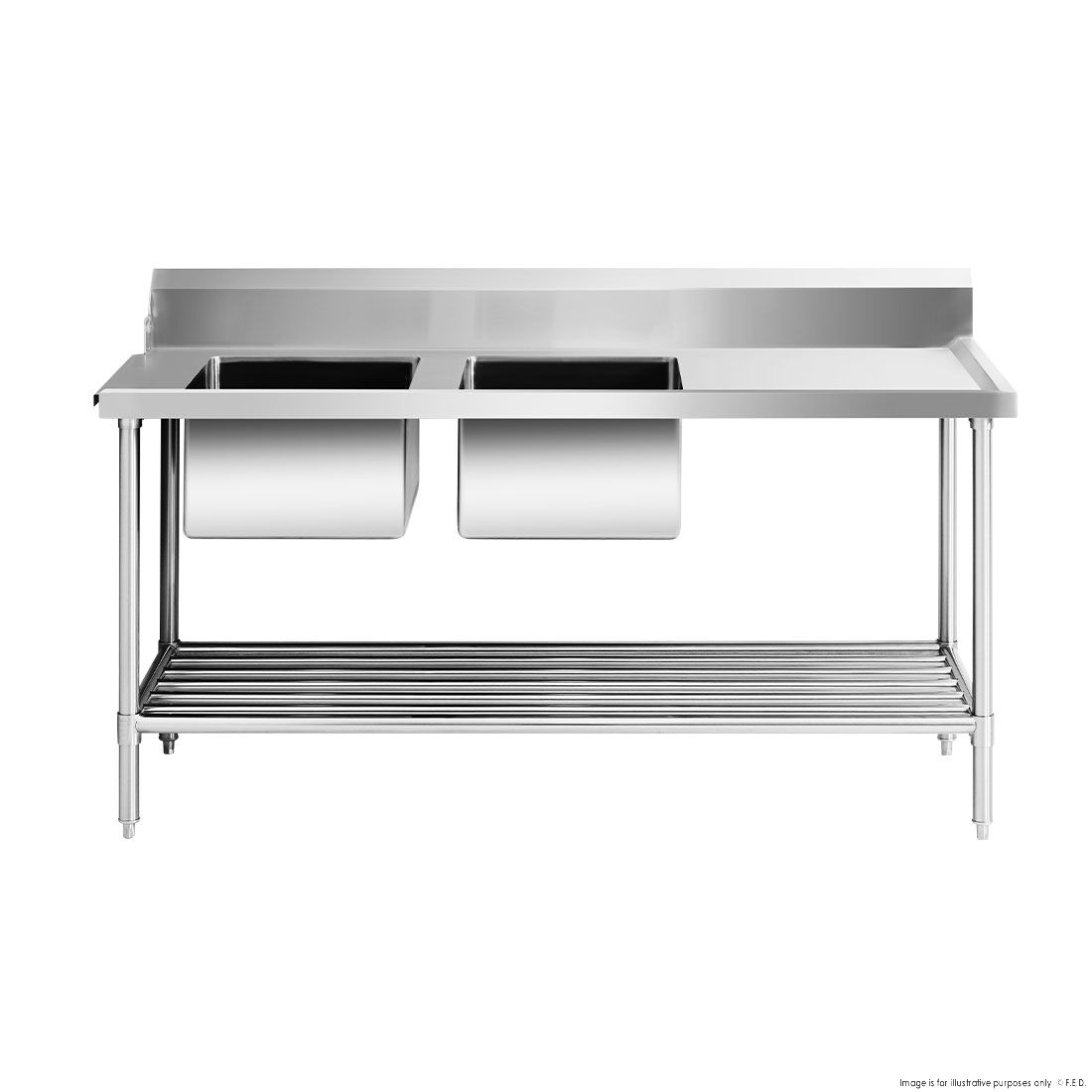

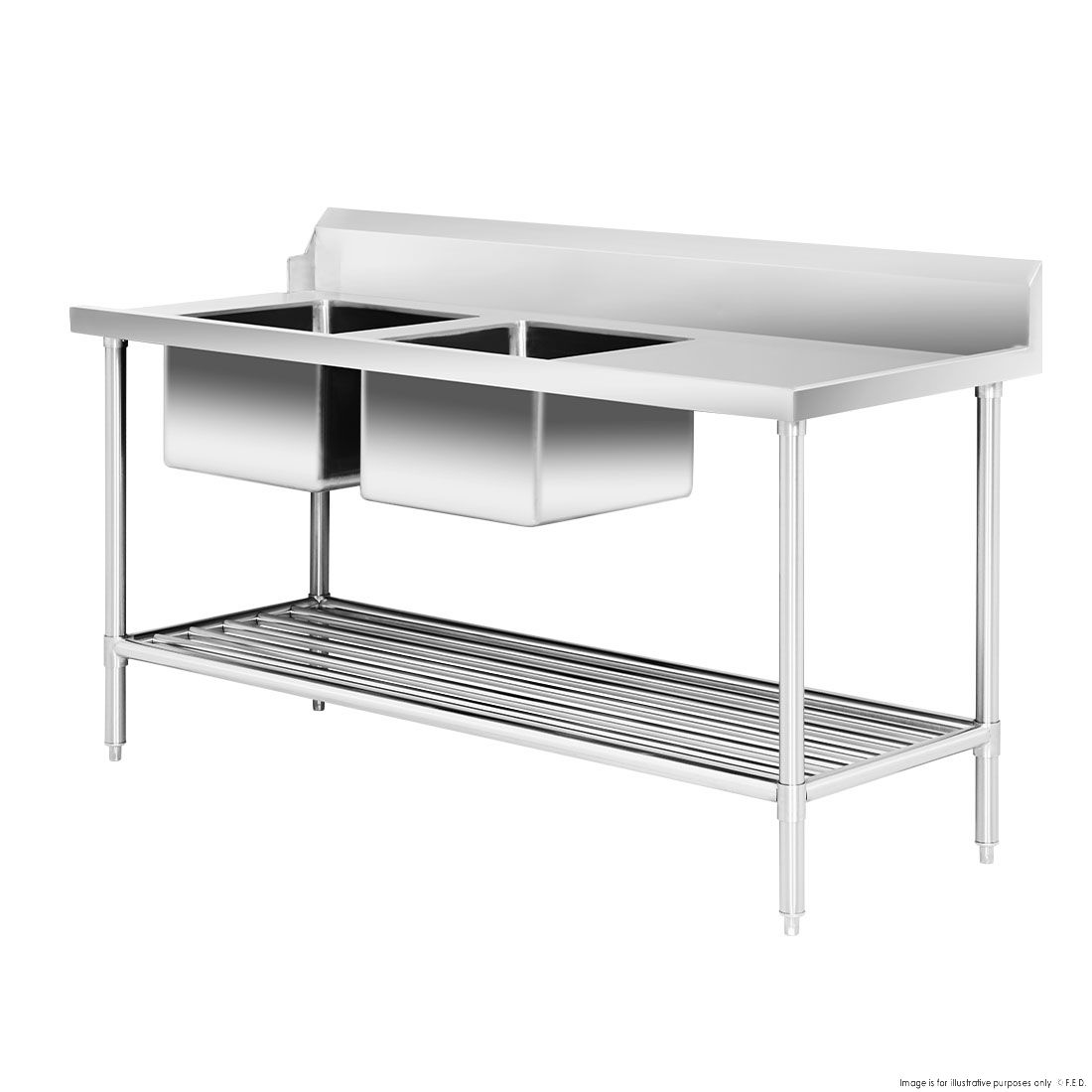

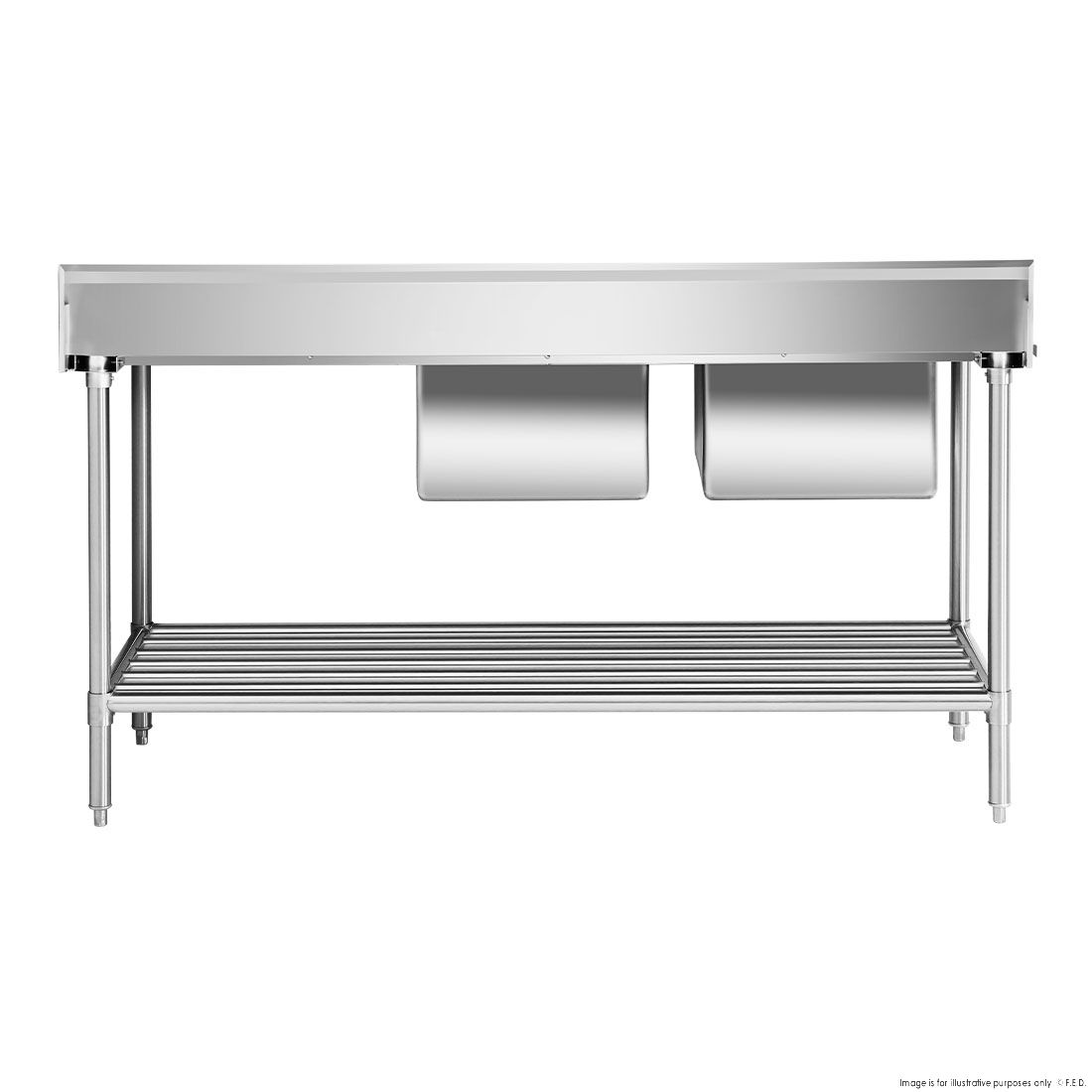

The Modular Systems DSBD7-1800L/A is a 1800mm wide, all stainless steel left inlet double sink dishwasher bench purpose-built for high-volume commercial kitchens, restaurants, cafes and catering operations. When standing at the bench, the dishwasher inlet and twin sinks are positioned on the left side, supporting a logical, efficient warewashing workflow. The unit arrives flat-packed for straightforward transport and comes complete with an instruction manual and all tools required for quick assembly.

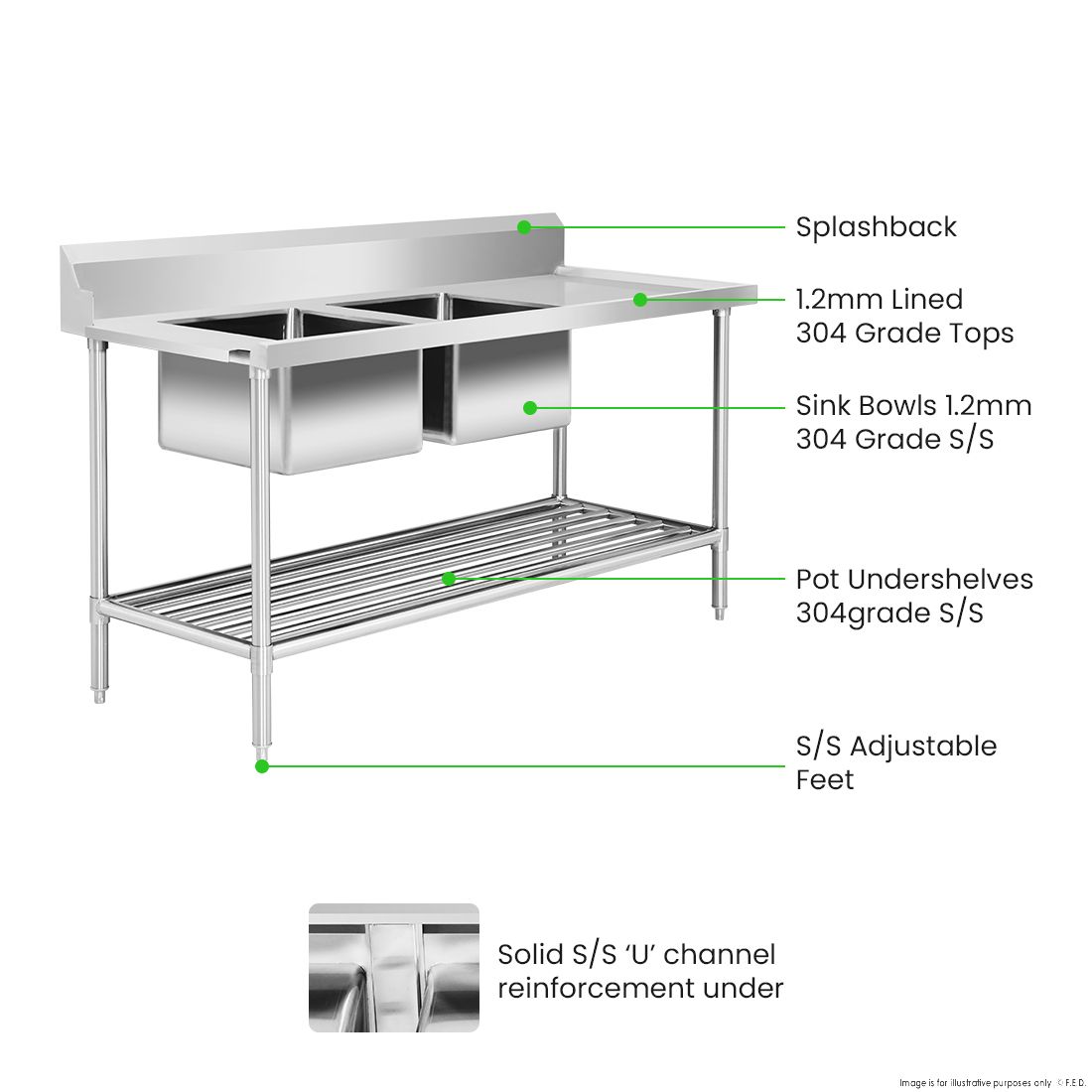

Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, the bench features fully welded and internally and externally polished bowls, an XPS board-lined benchtop reinforced with stainless steel 'U' channels, and a bevelled, fully enclosed 150mm splashback. The 15mm wet edge contains water on the work surface, while fully adjustable polished disc feet ensure stable, level placement even on uneven floors. Optional lockable castor kits are available for kitchens that require flexible layout changes.

Key Benefits

• Left-side inlet and sink positioning creates a logical, unidirectional dishwashing workflow that reduces cross-contamination risk and keeps service moving efficiently.
• Flat-packed delivery and included tools with instruction manual make on-site assembly quick and straightforward, minimising downtime during kitchen fit-outs.
• Fully adjustable stainless steel polished disc feet allow the bench to be levelled precisely on uneven kitchen floors, ensuring stability during busy service.
• The 15mm wet edge contains water on the benchtop surface, reducing spills onto floors and helping maintain a safer, more hygienic work environment.
• XPS board lining combined with stainless steel 'U' channel reinforcements under the benchtop provide structural rigidity, preventing flexing under the weight of loaded dish racks and equipment.
• Fully welded bowls, polished inside and out, eliminate crevices where bacteria can harbour, supporting HACCP-compliant hygiene practices.
• The 150mm high, 30mm thick bevelled and fully enclosed splashback protects surrounding walls and surfaces from water damage and is easy to wipe down.
• Optional lockable castor kits enable the bench to be repositioned when kitchen layouts need to change, without compromising stability during normal operation.
• A 2-year parts-only warranty provides peace of mind and backs the unit's long-term reliability in demanding commercial kitchen environments.

Key Features

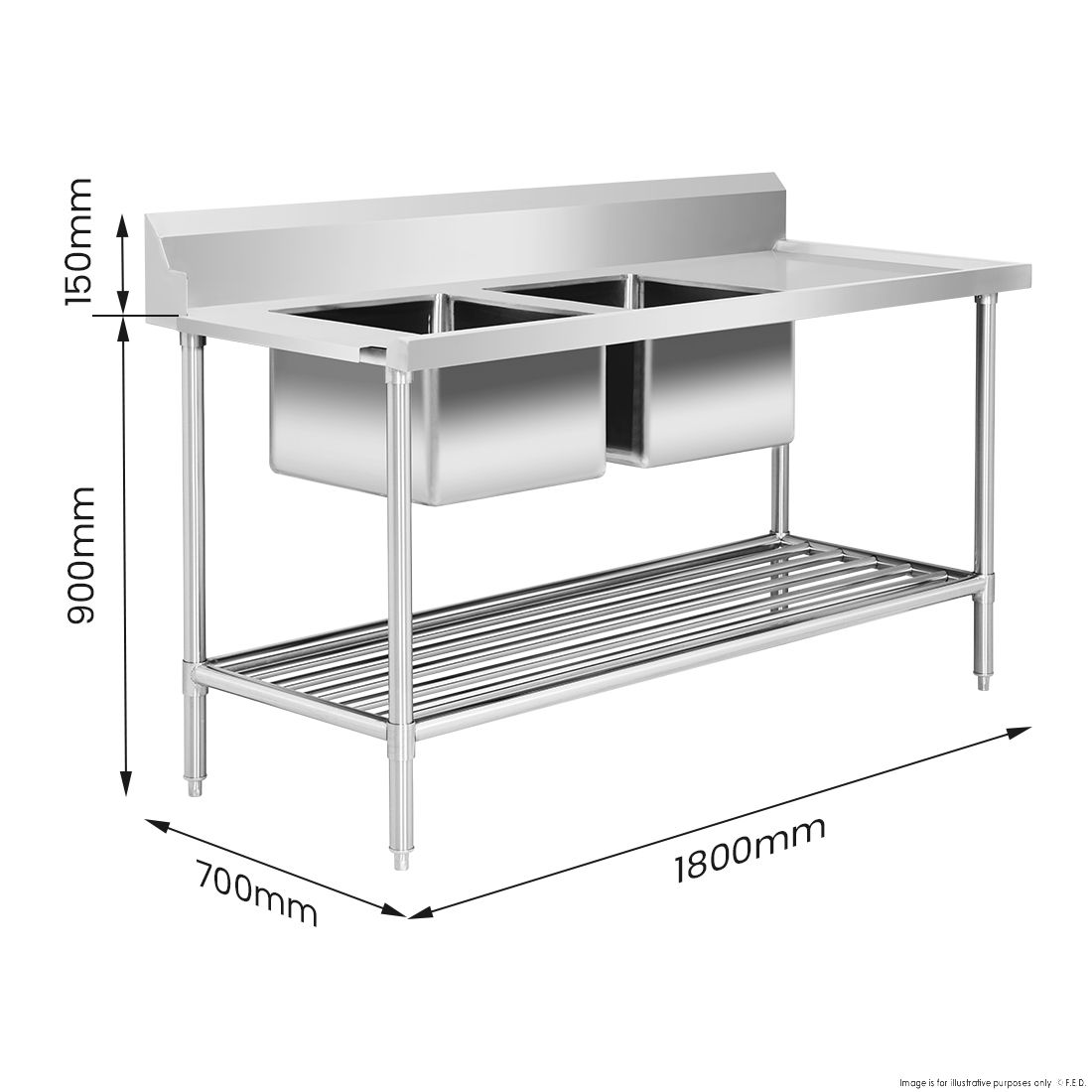

• Overall dimensions: 1800mm wide x 700mm deep x 900mm high
• Left inlet configuration: dishwasher inlet and sinks are on the left side when facing the bench
• Double sink with each bowl measuring 450mm wide x 450mm deep x 300mm high

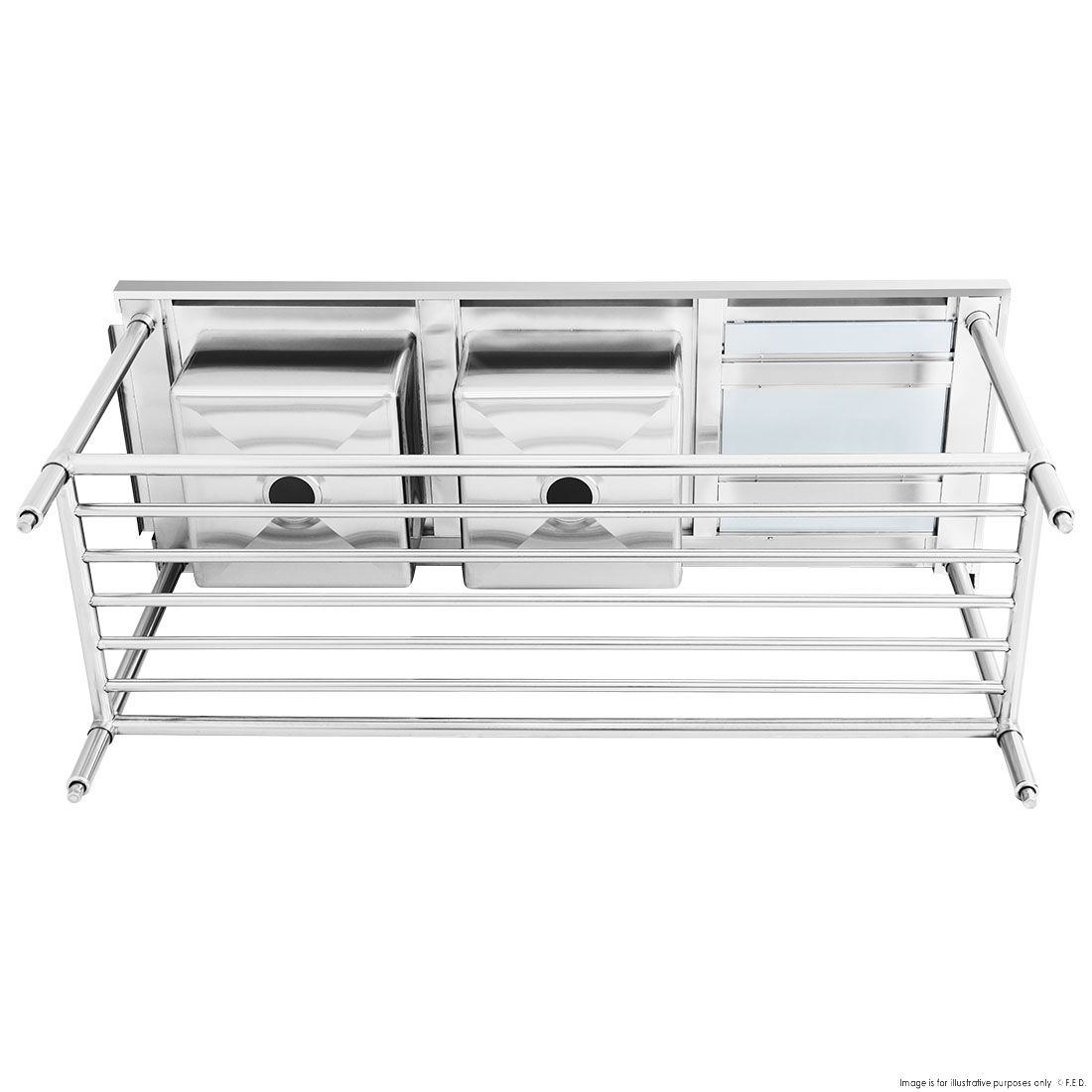

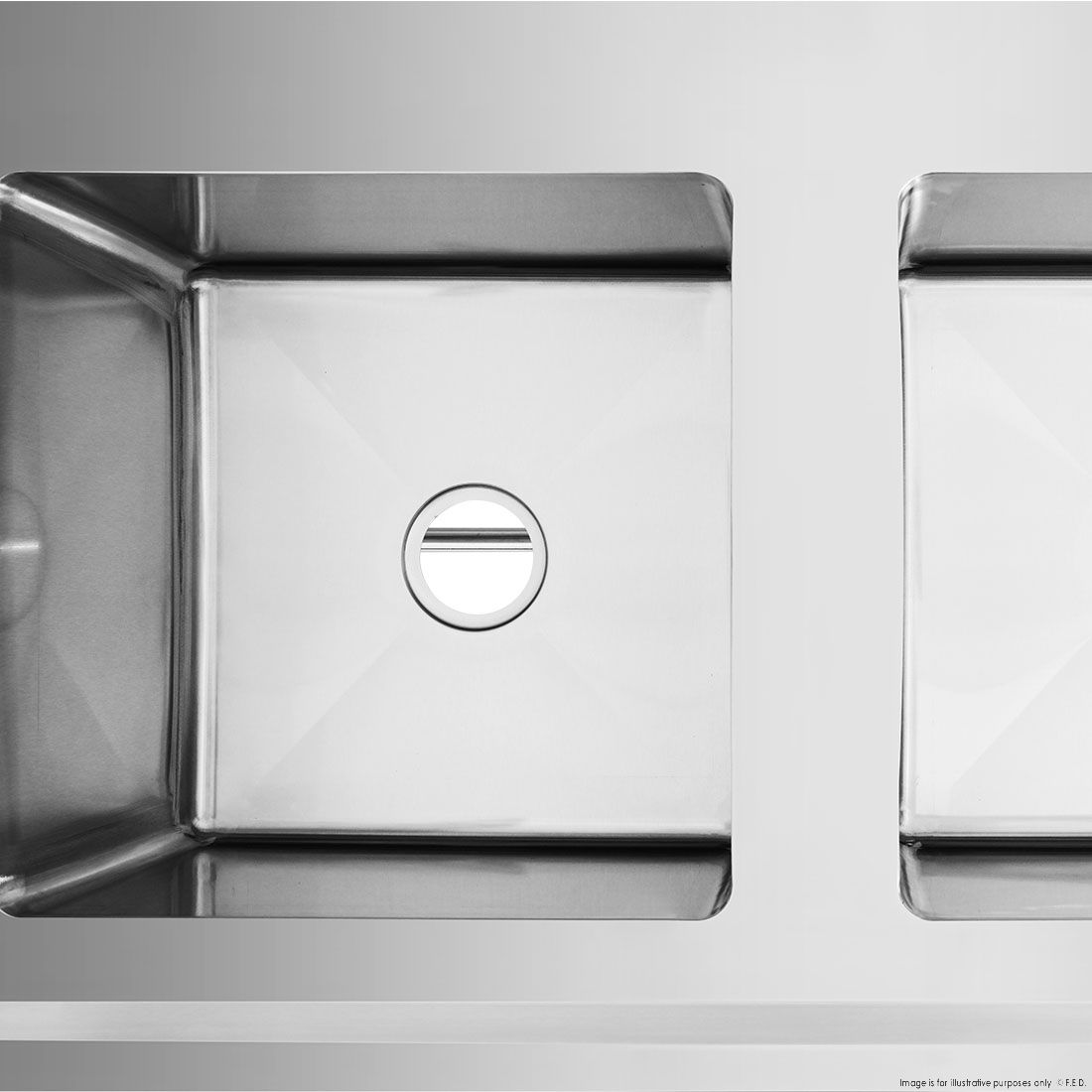

• 90mm diameter drain hole per bowl for efficient drainage
• 1.2mm thick SUS304 (18/8) stainless steel construction throughout
• Benchtop lined with 15mm XPS (extruded polystyrene) board and a stainless steel panel for insulation and rigidity
• Stainless steel 'U' channel reinforcements beneath the benchtop; number of channels increases with bench width
• 15mm wet edge to contain water on the benchtop surface
• Bowls are fully welded and polished inside and out for hygiene and durability
• Left or right bowl positioning available (this model is left inlet)
• Splashback: stainless steel backed, 150mm high, 30mm thick, bevelled and fully enclosed
• 4 legs per bench (2100mm and 2400mm wide models have 6 legs); legs are 1.2mm stainless steel, 42mm diameter

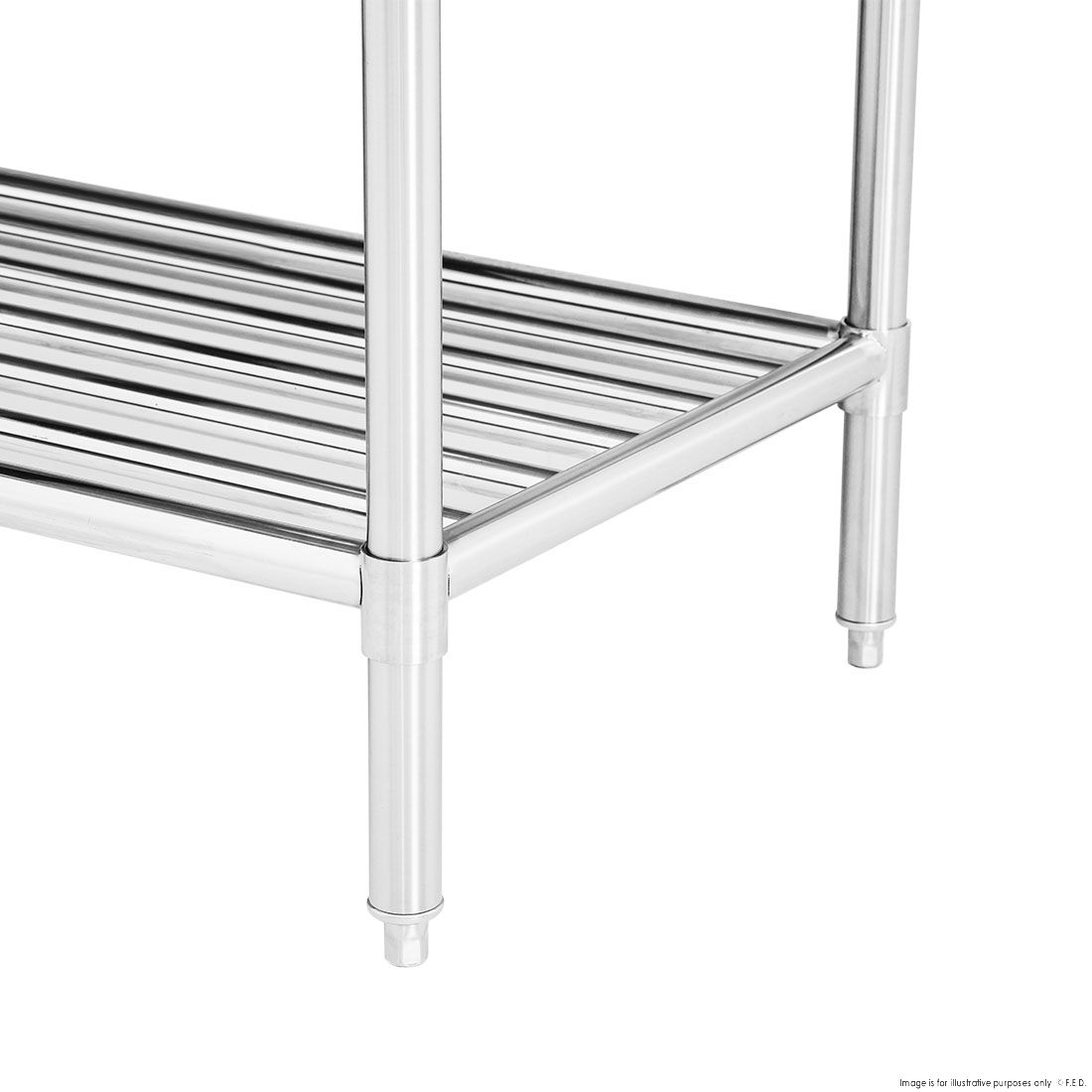

• Fully adjustable stainless steel polished disc feet that complement the leg finish
• Optional lockable castor kits available for bench mobility
• Supplied flat-packed for ease of transport and storage
• Includes instruction manual and all necessary assembly tools
• Specially designed for quick and simple assembly
• 2-year parts-only warranty

Specifications

• Width (mm): 1800
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 54.55
• Packed Width (mm): 770
• Packed Depth (mm): 1870
• Packed Height (mm): 530
• Shipping Weight: 190.75
• Warranty (months): 2 Years Parts Only
• Capacity (Litres): 1800
