Overview

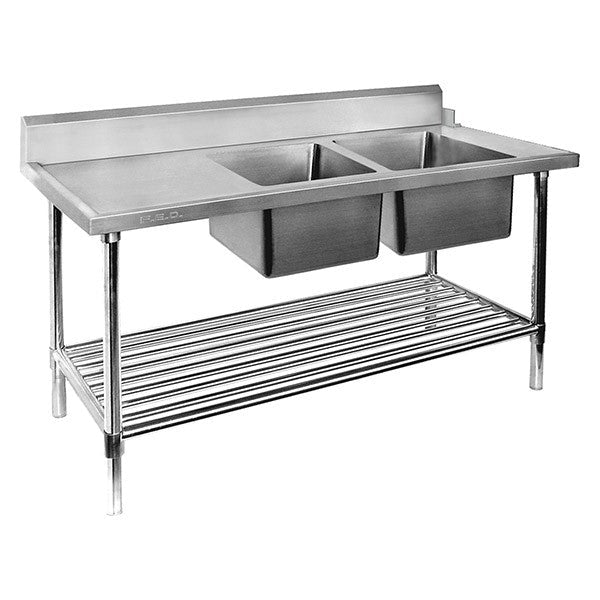

Modular Systems DSBD7-1800R/A Right Inlet Double Sink Dishwasher Bench 1800mm

The Modular Systems DSBD7-1800R/A is a 1800mm wide all-stainless-steel double sink dishwasher bench configured with the dishwasher inlet and sinks positioned on the right side when facing the unit. Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, it is purpose-built for demanding commercial kitchen environments including restaurants, cafes, catering facilities and hospitality venues requiring a reliable, hygienic warewashing workstation.

Supplied flat-packed with an instruction manual and all necessary tools, the bench is engineered for quick and straightforward on-site assembly. The benchtop is lined with 15mm XPS board and a stainless steel panel, with stainless steel 'U' channel reinforcements underneath for added structural rigidity. A 15mm wet edge, fully welded and polished bowls, a bevelled fully enclosed splashback, and fully adjustable polished disc feet complete a well-considered design that balances durability, hygiene and practical installation flexibility.

Key Benefits

• Right-side inlet configuration positions the dishwasher connection and sinks on the right when facing the bench, allowing kitchen designers to optimise workflow direction and space utilisation.
• Fully welded bowls polished inside and out eliminate crevices where bacteria and food debris can accumulate, supporting strict commercial hygiene standards and simplifying daily cleaning.
• XPS-board-lined benchtop combined with stainless steel 'U' channel reinforcements underneath delivers a rigid, durable work surface that withstands the continuous load demands of busy service periods.
• Flat-packed delivery with included tools and instruction manual reduces freight costs and allows site assembly without specialist trades, minimising installation time and labour.
• Fully adjustable stainless steel polished disc feet compensate for uneven floors, ensuring a stable, level installation on any commercial kitchen surface.
• Optional lockable castor kits are available, giving operators the flexibility to make the bench mobile for cleaning, reconfiguration or venue changeovers.
• A 150mm high, 30mm thick bevelled and fully enclosed stainless-steel-backed splashback protects surrounding walls and surfaces from water and food splash during busy dishwashing operations.
• The 90mm diameter drain hole accommodates standard commercial plumbing connections, enabling efficient water removal and straightforward integration into existing drainage layouts.
• A two-year parts-only warranty provides commercial operators with confidence in the longevity and quality of the unit.

Key Features

• Right inlet configuration: dishwasher inlet and both sinks are on the right side when facing the bench
• Overall dimensions: 1800mm wide x 700mm deep x 900mm high
• Bowl size: 450mm wide x 450mm deep x 300mm high with 90mm diameter drain hole
• All stainless steel construction, 1.2mm SUS304 (18/8) material throughout
• 15mm wet edge on benchtop
• Benchtop lined with 15mm XPS board and stainless steel panel for insulation and rigidity
• Stainless steel 'U' channel reinforcements under the benchtop; number of channels increases with bench width
• Bowls fully welded and polished inside and out for hygiene and durability
• Splashback: stainless-steel-backed, 150mm high, 30mm thick, bevelled and fully enclosed
• 4 legs for this 1800mm bench (2100mm and 2400mm wide models use 6 legs)
• Legs: 1.2mm stainless steel, 42mm diameter
• Fully adjustable stainless steel polished disc feet matched to leg finish
• Lockable castor kits available as an optional accessory
• Supplied flat-packed for ease of transport and reduced freight costs
• Includes instruction manual and assembly tools for quick on-site setup
• Left or right bowl positioning available across the bench range
• 2-year parts-only warranty

Specifications

• Width (mm): 1800
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 54.55
• Packed Width (mm): 770
• Packed Depth (mm): 1870
• Packed Height (mm): 530
• Shipping Weight: 55
• Warranty (months): 2 Years Parts Only
• Splash Back: 150 mm high, 30 mm thick
