Modular Systems SSB7-1200C/A Single Centre Sink Bench & Pot Undershelf

Overview

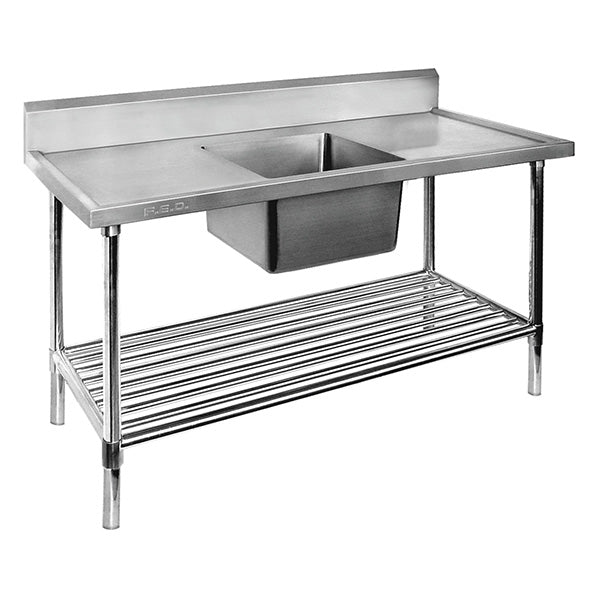

Modular Systems SSB7-1200C/A Single Centre Sink Bench & Pot Undershelf 1200mm

The Modular Systems SSB7-1200C/A is a 1200mm wide all-stainless steel sink bench combining a centre-positioned single bowl sink with an integrated pot undershelf, purpose-built for the demands of commercial kitchens, cafés, restaurants, and catering facilities. Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, every component from the fully welded and polished sink bowl to the reinforced benchtop and tubular pot shelf is engineered for corrosion resistance, structural rigidity, and long-term hygienic performance.

Supplied flat-packed with all necessary tools and an instruction manual, the SSB7-1200C/A is specially designed for quick and simple on-site assembly, making it practical for new fit-outs and refurbishments alike. A free optional leg brace can be substituted for the pot shelf upon request, offering configuration flexibility to suit different kitchen workflows. The unit carries a 2-year parts-only warranty and is backed by the trusted Modular Systems commercial kitchen range.

Key Benefits

• Centre-positioned sink bowl keeps the workspace evenly balanced on both sides, supporting an efficient prep and washing workflow for kitchen staff.
• Fully welded and polished bowl interior and exterior eliminates crevices where bacteria can harbour, making cleaning thorough and fast to meet food safety requirements.
• XPS board lining and stainless steel panel under the benchtop, combined with 'U' channel reinforcements, deliver a rigid, ripple-surface work area that resists deflection under heavy loads.
• Fully adjustable stainless steel polished disc feet compensate for uneven floors, keeping the bench stable and level without the need for shimming or extra hardware.
• Flat-packed delivery with all tools and an instruction manual included simplifies transport, reduces freight costs, and allows a single operator to assemble the bench on site without specialist trades.
• Optional lockable castor kits allow the bench to be repositioned easily for cleaning behind equipment or reconfiguring kitchen layouts.
• The free optional leg brace (in place of the pot shelf) provides a leaner configuration for kitchens where undershelf storage is not required, at no additional cost.
• A 150mm high, bevelled, fully enclosed stainless steel splashback protects walls from water and grease splatter, maintaining hygiene and reducing wall cleaning time.
• The tubular pot undershelf keeps heavy cookware and pots off the benchtop and floor, improving organisation and reducing trip hazards in busy kitchen environments.

Key Features

• Overall dimensions: 1200mm (W) x 700mm (D) x 900mm (H)
• Single sink bowl: 450mm (W) x 450mm (D) x 300mm (H) with 90mm diameter drain hole
• Centre bowl positioning for balanced workspace on both sides

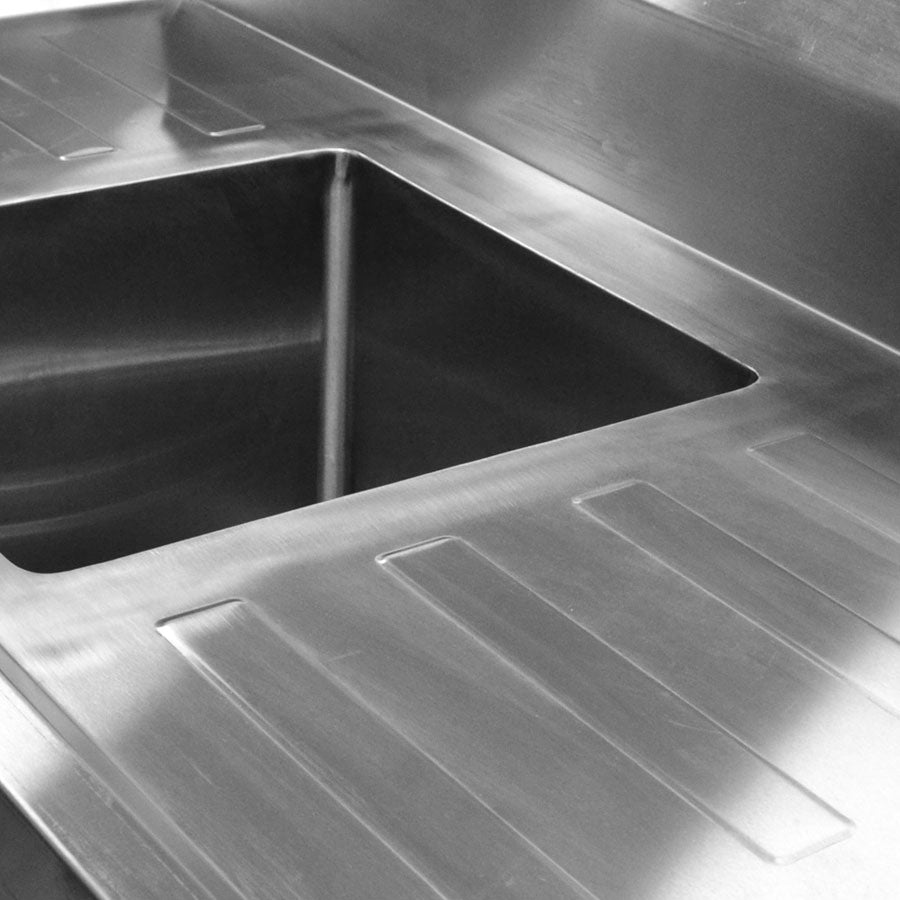

• Bowls are fully welded, polished inside and out for hygiene and durability
• 15mm wet edge around the bowl to contain water on the benchtop
• All construction in 1.2mm SUS304 (18/8) stainless steel
• Benchtop lined with 15mm thick XPS board and stainless steel panel for rigidity and insulation
• Special stainless steel 'U' channel reinforcements beneath the benchtop; number of channels increases with bench width
• Ripple surface benchtop for added stiffness across the work area
• Splashback: 150mm high, 40mm thick (per supplier), stainless steel backed, bevelled and fully enclosed
• 4 legs per bench (2100mm and 2400mm wide models use 6 legs); legs are 1.2mm stainless steel, 42mm diameter
• Fully adjustable stainless steel polished disc feet, matched to leg diameter
• Optional lockable castor kits available separately
• Pot undershelf outer frame: 38mm diameter, 1.2mm stainless steel tube
• Pot undershelf inner tubes: 25mm diameter, 1mm stainless steel tube with 40mm spacing
• Free optional leg brace available as an alternative to the pot shelf; must be specified at time of order
• Supplied flat-packed for ease of transport and handling
• Includes instruction manual and all tools required for assembly
• Specially designed for quick and simple assembly
• 2-year parts-only warranty

Specifications

• Width (mm): 1200
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 40.85
• Packed Width (mm): 770
• Packed Depth (mm): 1270
• Packed Height (mm): 530
• Shipping Weight: 42.2
• Warranty (months): 2 Years Parts Only
• Splash Back: 150 mm high × 30 mm thick
