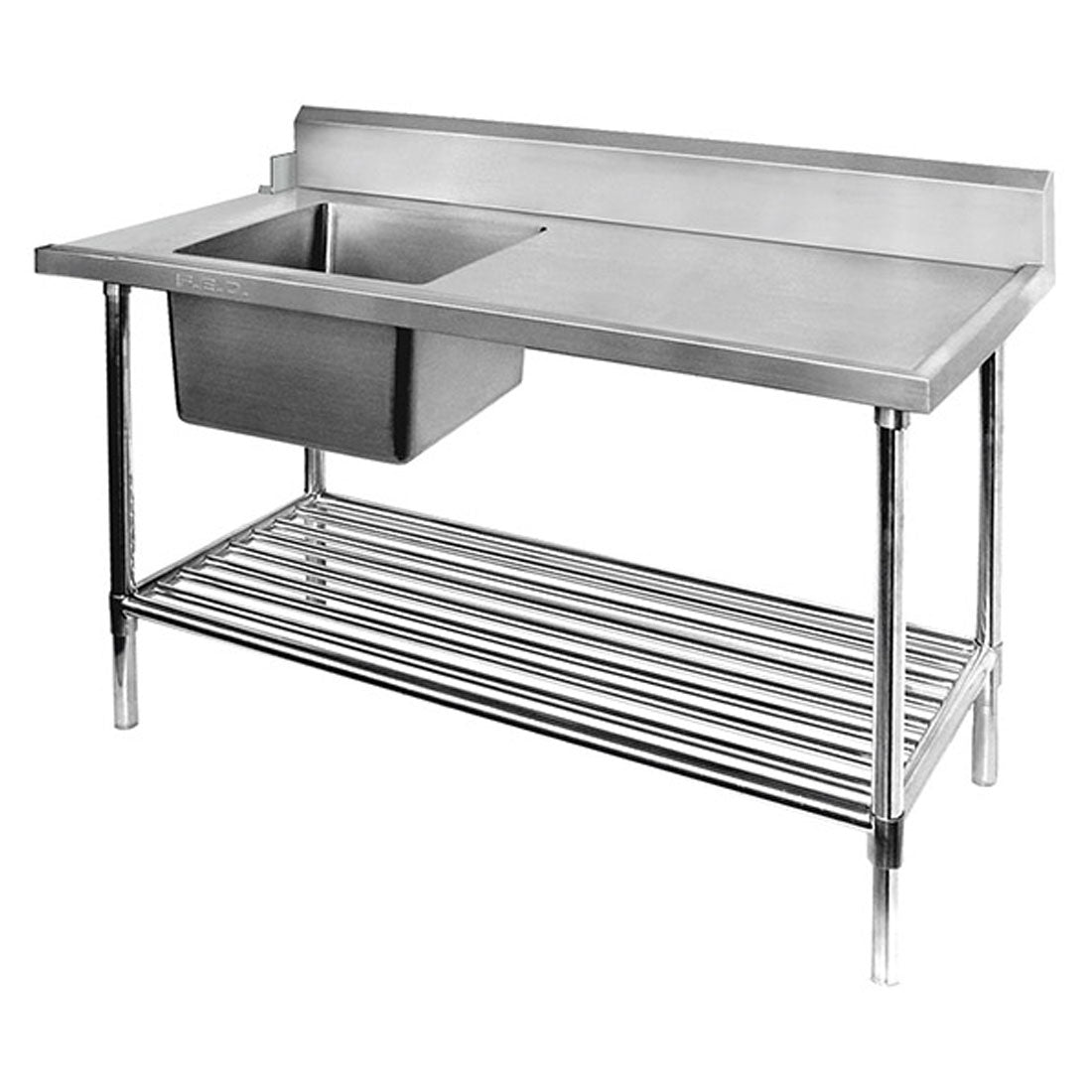

Modular Systems SSBD7-1800L/A Left Inlet Single Sink Dishwasher Bench

Overview

Modular Systems SSBD7-1800L/A Left Inlet Single Sink Dishwasher Bench 1800mm

The Modular Systems SSBD7-1800L/A is a 1800mm wide, all-stainless-steel dishwasher inlet bench purpose-built for commercial kitchens, cafes, restaurants and catering operations. With the dishwasher inlet and single sink positioned on the left side when facing the bench, it is designed to integrate seamlessly into an efficient warewashing workflow, keeping clean ware moving during high-volume service.

Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, this bench arrives flat-packed with an instruction manual and all tools required for quick, straightforward assembly. The benchtop is lined with 15mm XPS board and an additional stainless steel panel, with SUS304 'U' channel reinforcements underneath for outstanding structural rigidity. Fully adjustable polished disc feet, fully welded and polished bowls, and a bevelled enclosed splashback round out a unit built for long-term durability and hygiene compliance.

Key Benefits

• Left-side inlet and sink positioning supports a logical, efficient kitchen workflow, reducing staff movement during busy dishwashing runs.
• Fully welded, polished bowl interior and exterior minimises bacteria harbouring points and simplifies routine cleaning to maintain hygiene standards.
• Flat-pack supply with included tools and instruction manual reduces freight costs and allows fast on-site assembly with minimal labour.
• XPS board lining and stainless steel 'U' channel reinforcements under the benchtop provide exceptional rigidity, preventing flex under heavy loads.
• Fully adjustable polished stainless steel disc feet compensate for uneven floors, ensuring a stable, level working surface in any kitchen.
• Optional lockable castor kits allow the bench to be repositioned easily for cleaning or kitchen reconfiguration when required.
• A 90mm diameter drain hole in the fully welded bowl supports fast, efficient water drainage during high-throughput dishwashing operations.
• All-stainless-steel construction throughout resists corrosion and withstands the hot, wet conditions typical of commercial warewashing areas.

Key Features

• Overall dimensions: 1800mm wide x 700mm deep x 900mm high
• Left bowl positioning: dishwasher inlet and sink are on the left side when facing the bench
• Single sink bowl dimensions: 450mm W x 450mm D x 300mm H
• 90mm diameter drain hole in bowl
• 15mm wet edge
• Bowl is fully welded and polished inside and out
• All components constructed from 1.2mm SUS304 (18/8) stainless steel
• Benchtop lined with 15mm thick XPS board and a stainless steel panel for insulation and rigidity
• Stainless steel 'U' channel reinforcements under the benchtop; number of channels increases with bench width
• Splashback: stainless steel backed, 150mm high, 40mm thick, bevelled and fully enclosed
• 4 adjustable legs (6 legs on 2100mm and 2400mm wide models)
• Legs: 1.2mm stainless steel, 42mm diameter
• Fully adjustable polished stainless steel disc feet matched to leg finish
• Lockable castor kits available as an optional accessory
• Supplied flat-packed for ease of transport and reduced freight costs
• Includes instruction manual and all tools required for assembly
• Specially designed for quick and simple assembly
• 2-year parts-only warranty

Specifications

• Width (mm): 1800
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 57.5
• Packed Width (mm): 770
• Packed Depth (mm): 1870
• Packed Height (mm): 530
• Warranty (months): 2 Years Parts Only
• Capacity (Litres): 1500
