Modular Systems SSBD7-1800R/A Right Inlet Single Sink Dishwasher Bench

Overview

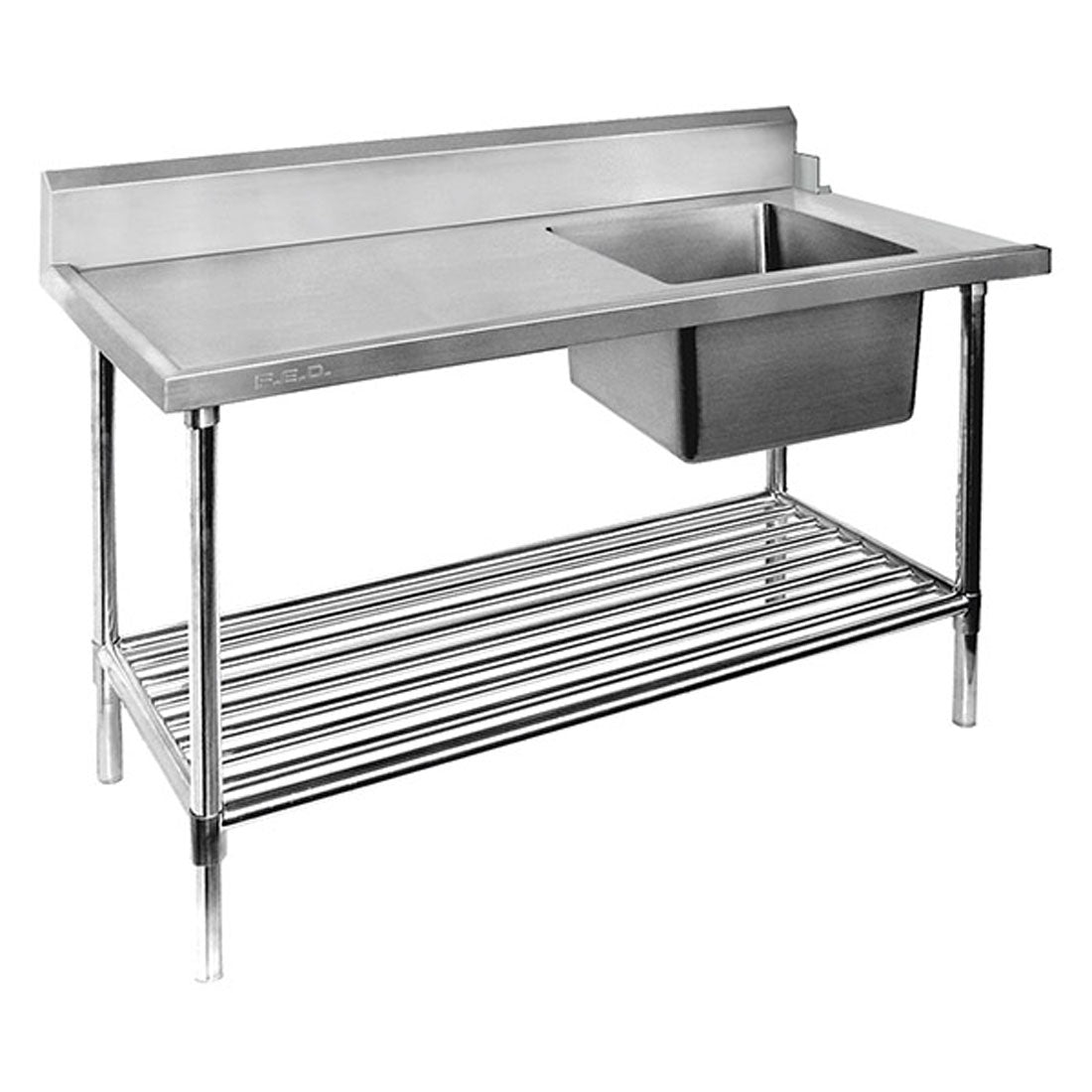

Modular Systems SSBD7-1800R/A Right Inlet Single Sink Dishwasher Bench 1800mm

The Modular Systems SSBD7-1800R/A is a 1800mm wide, all stainless steel right inlet single sink dishwasher bench purpose-built for professional commercial kitchens, restaurants, cafés and catering operations. The right bowl positioning means the dishwasher inlet and sink are on the right side when facing the bench, allowing operators to plan an efficient, logical warewashing workflow that suits their kitchen layout.

Constructed from 1.2mm SUS304 (18/8) stainless steel throughout, this bench arrives flat-packed with an instruction manual and all required tools for quick, simple assembly on site. Every component, from the fully welded and polished sink bowl to the XPS-lined benchtop and adjustable disc feet, is engineered for long-term durability and hygiene in high-volume service environments.

Key Benefits

• Right-side bowl positioning allows intuitive integration with undercounter dishwashers, keeping soiled and clean ware moving in a single direction for faster, more organised service.
• Fully welded sink bowl, polished inside and out, eliminates crevices where bacteria and food debris can accumulate, making sanitation fast and thorough.
• XPS board lining and stainless steel panel under the benchtop reduce condensation and noise, while maintaining a solid, stable working surface during busy service periods.
• Stainless steel 'U' channel reinforcements beneath the benchtop scale with bench width, ensuring structural rigidity is maintained across all size configurations.
• Fully adjustable polished stainless steel disc feet compensate for uneven floors and keep the bench level without shimming or modification.
• Optional lockable castor kits allow the bench to be repositioned easily for deep cleaning or kitchen reconfiguration, then locked securely in place during service.
• Flat-packed delivery simplifies freight, reduces damage risk in transit, and allows the unit to be carried through standard doorways and corridors before assembly.
• Bevelled, fully enclosed stainless steel splashback protects walls from water and splash contamination while contributing to a clean, professional kitchen aesthetic.
• A two-year parts-only warranty provides confidence in long-term performance and reflects the robust build quality expected in a commercial kitchen environment.

Key Features

• Overall dimensions: 1800mm wide x 700mm deep x 900mm high
• Right bowl positioning: dishwasher inlet and sink are on the right side when facing the bench
• Single sink bowl: 450mm W x 450mm D x 300mm H with 90mm diameter drain hole
• Bowl is fully welded and polished inside and out for hygiene and durability
• 15mm wet edge around the bowl
• All stainless steel construction: 1.2mm SUS304 (18/8) material throughout
• Benchtop lined with 15mm XPS board and stainless steel panel for insulation and rigidity
• Special stainless steel 'U' channel reinforcements under the benchtop; number of channels increases with bench width
• Splashback: stainless steel backed, 150mm high, 40mm thick, bevelled and fully enclosed
• 4 adjustable legs supplied (2100mm and 2400mm wide benches include 6 legs)
• Legs: 1.2mm stainless steel, 42mm diameter
• Fully adjustable stainless steel polished disc feet matched to leg diameter
• Lockable castor kits available as an optional accessory
• Supplied flat-packed for ease of transport and to reduce freight damage
• Includes instruction manual and all necessary assembly tools
• Specially designed for quick and simple on-site assembly
• 2 years parts-only warranty

Specifications

• Width (mm): 1800
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 50
• Packed Width (mm): 770
• Packed Depth (mm): 1870
• Packed Height (mm): 530
• Warranty (months): 2 Years Parts Only
