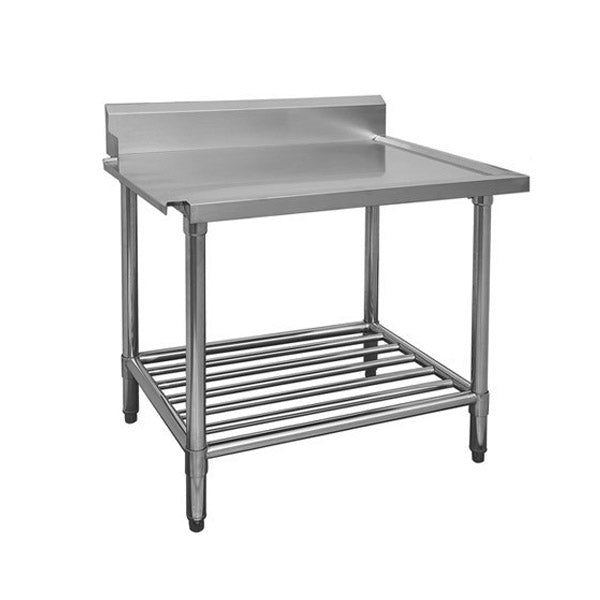

Modular Systems WBBD7-0900L/A All Stainless Steel Dishwasher Bench Left Outlet

Overview

Modular Systems WBBD7-0900L/A All Stainless Steel Dishwasher Bench Left Outlet 900mm

The Modular Systems WBBD7-0900L/A is a purpose-built commercial dishwasher bench designed to integrate seamlessly into professional kitchen warewashing lines. Measuring 900mm wide by 700mm deep by 900mm high, this left outlet configuration positions the dishwasher inlet and sinks on the left side when facing the bench, making it straightforward to plan your workflow direction. Constructed throughout from SUS304 (18/8) stainless steel, every component from the benchtop to the legs and splashbacks is built to withstand the rigours of continuous commercial use.

Supplied flat-packed for easy transport and site delivery, the bench arrives with all necessary tools and an instruction manual for quick, simple assembly on site. The benchtop is reinforced with XPS board insulation and stainless steel 'U' channel supports beneath, while fully adjustable polished disc feet allow precise levelling on uneven floors. Optional lockable castor kits are available for installations where mobility is an advantage. Backed by a 2-year parts only warranty, this bench suits restaurants, cafes, catering operations, and any commercial kitchen requiring a reliable, hygienic dishwashing workstation.

Key Benefits

• Left outlet configuration allows intuitive workflow planning so clean ware exits on the correct side for your kitchen layout
• Flat-packed delivery with included tools and instruction manual reduces freight costs and gets the bench operational quickly with minimal fuss
• Fully adjustable polished stainless steel disc feet compensate for uneven floors, ensuring a stable and level work surface throughout service
• XPS board lining and stainless steel 'U' channel reinforcements under the benchtop provide structural rigidity and insulation for a long service life
• Bevelled and fully enclosed stainless steel splashbacks are easy to wipe down and leave no open edges that can harbour bacteria or food debris
• Optional lockable castor kits allow the bench to be repositioned for cleaning or reconfiguration without tools
• All-stainless construction resists corrosion, chemical cleaning agents, and heat, keeping hygiene standards consistently high in a demanding environment
• Scalable design with additional leg supports on wider bench configurations means the same system can grow to suit larger operations

Key Features

• Left side dishwasher inlet and sink configuration: when facing the bench, the inlet and sinks are positioned on the left
• Overall dimensions: 900mm wide x 700mm deep x 900mm high
• Benchtop material: 1.2mm SUS304 (18/8) stainless steel
• Benchtop lined with 15mm thick XPS insulation board and a stainless steel panel
• Special stainless steel 'U' channel reinforcements beneath the benchtop; number of channels increases with bench width for greater support
• Splashbacks: 1.2mm stainless steel, 180mm high and 30mm thick, bevelled and fully enclosed
• Stainless steel backed splashbacks with no galvanised or open components
• Legs: 1.2mm stainless steel, 42mm diameter
• 4 legs standard; 2100mm and 2400mm wide benches include 6 legs
• Fully adjustable stainless steel polished disc feet matched to the leg diameter
• Optional lockable castor kits available
• Specially designed for quick and simple on-site assembly
• Supplied flat-packed for ease of transport
• Includes instruction manual and assembly tools
• 2-year parts only warranty

Specifications

• Width (mm): 900
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 31.8
• Packed Width (mm): 770
• Packed Depth (mm): 970
• Packed Height (mm): 275
• Shipping Weight: 51.25
• Warranty (months): 2 Years Parts Only
• Capacity (Litres): 600
• Splash Back: 180 mm high; 30 mm thick
