Modular Systems WBBD7-1200L/A All Stainless Steel Dishwasher Bench Left Outlet

Overview

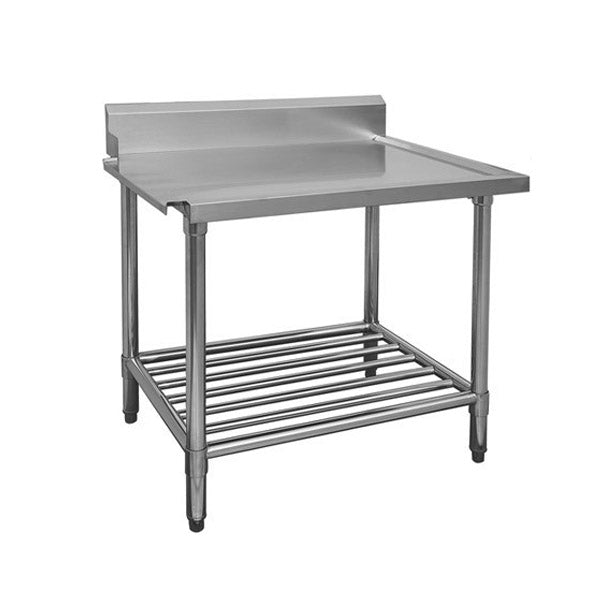

Modular Systems WBBD7-1200L/A All Stainless Steel Dishwasher Bench Left Outlet 1200mm

The Modular Systems WBBD7-1200L/A is a 1200mm wide all stainless steel dishwasher bench configured with the dishwasher inlet and sinks positioned on the left side when facing the unit. Purpose-built for professional commercial kitchens, cafes, restaurants and catering operations, it arrives flat-packed with all necessary tools and an instruction manual for quick, straightforward on-site assembly.

Constructed from SUS304 (18/8) stainless steel throughout, the bench features a reinforced benchtop lined with XPS board and a stainless steel panel, supported by fully adjustable polished disc feet and backed by a bevelled, fully enclosed splashback. A 2-year parts-only warranty underpins confidence in the unit's long-term reliability for high-volume warewashing workflows.

Key Benefits

• Left-outlet configuration positions the dishwasher inlet and sinks on the left side, allowing the bench to integrate directly into an existing kitchen workflow without modification
• Flat-packed delivery with included tools and instruction manual simplifies transport and enables rapid assembly with minimal labour
• SUS304 (18/8) stainless steel construction throughout resists corrosion, withstands heavy daily use and meets commercial kitchen hygiene standards
• XPS board lining under the benchtop reduces condensation and noise while adding structural rigidity across the full working surface
• Stainless steel 'U' channel reinforcements beneath the benchtop scale with bench size to maintain load integrity under demanding service conditions
• Fully adjustable stainless steel polished disc feet allow precise levelling on uneven floors, keeping the bench stable and safe during operation
• Optional lockable castor kits provide flexibility to reposition the bench during cleaning or kitchen reconfiguration
• A load rating of 320kg for the 1200mm width supports heavy commercial warewashing equipment and substantial ware stacking without compromise
• 2-year parts-only warranty provides assurance of product quality and manufacturer support

Key Features

• Left-side dishwasher inlet and sink configuration: when facing the bench, all inlet connections and sinks are on the left
• Overall dimensions: 1200mm wide x 700mm deep x 900mm high
• Benchtop material: 1.2mm SUS304 (18/8) stainless steel
• Benchtop lined with XPS board (15mm thick) and a stainless steel panel for insulation and reinforcement
• Stainless steel 'U' channel reinforcements under the benchtop; number of channels increases with bench width
• Legs: 1.2mm stainless steel, 42mm diameter, fully enclosed construction
• 4 legs per bench (1200mm width); 2100mm and 2400mm wide benches are supplied with 6 legs
• Fully adjustable stainless steel polished disc feet that complement the leg finish
• Splashback: stainless steel backed, 180mm high, 30mm thick, bevelled and fully enclosed
• Flat-packed for ease of transport; includes instruction manual and assembly tools
• Specially designed for quick and simple assembly
• Optional lockable castor kits available
• Load rating: 320kg for the 1200mm wide bench
• 2-year parts-only warranty

Specifications

• Width (mm): 1200
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 40.05
• Packed Width (mm): 770
• Packed Depth (mm): 1270
• Packed Height (mm): 275
• Shipping Weight: 39.8
• Warranty (months): 2 Years Parts Only
• Capacity (Litres): 600
• Splash Back: 180 mm high; 30 mm thick
