Modular Systems WBBD7-1200R/A All Stainless Steel Dishwasher Bench Right Outlet

Overview

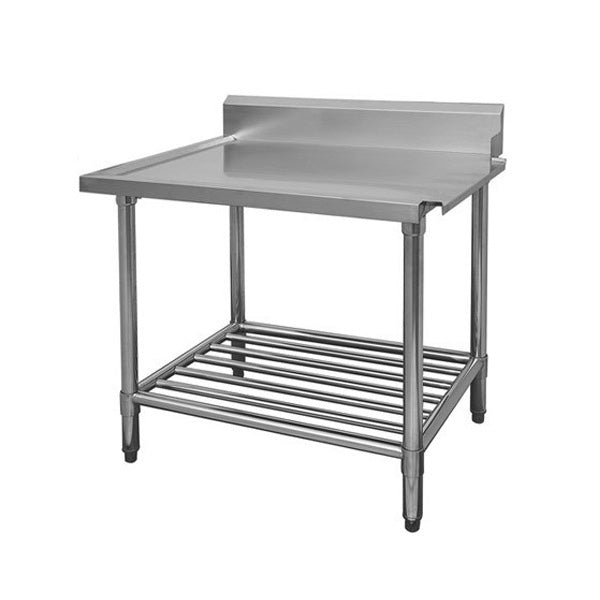

Modular Systems WBBD7-1200R/A All Stainless Steel Dishwasher Bench Right Outlet 1200mm

The Modular Systems WBBD7-1200R/A is a 1200mm wide all stainless steel dishwasher bench configured with a right-side outlet, meaning the dishwasher inlet and sinks are positioned on the right when facing the bench. Built from SUS304 (18/8) stainless steel throughout, this bench is purpose-designed for professional commercial kitchen environments including restaurants, cafes, catering facilities and high-volume food service operations, where hygiene, durability and efficient warewashing workflow are essential.

Supplied flat-packed for straightforward transport and storage, the WBBD7-1200R/A arrives with all necessary assembly tools and an instruction manual, allowing quick and simple setup on site. The benchtop is reinforced with stainless steel 'U' channel supports and lined with XPS insulation board, while fully adjustable polished stainless steel disc feet provide levelling flexibility on uneven floors. A 2-year parts-only warranty is included for added peace of mind.

Key Benefits

• Right-side outlet configuration keeps dirty-to-clean workflow moving in a logical direction, reducing cross-contamination risk during busy service periods.
• Flat-packed delivery with included tools and instruction manual means the bench can be transported easily and assembled on site without specialist tradespeople.
• Fully adjustable polished stainless steel disc feet allow precise levelling on uneven kitchen floors, ensuring a stable and safe working surface.
• XPS board lining beneath the benchtop adds insulation and rigidity, helping the surface withstand the thermal and mechanical demands of continuous commercial use.
• Stainless steel 'U' channel reinforcements under the benchtop increase structural integrity, with additional channels added as bench width increases for consistent load support.
• Bevelled, fully enclosed stainless steel splashback protects walls from moisture and food debris, keeping the surrounding area cleaner and easier to sanitise.
• Optional lockable castor kits allow the bench to be repositioned for cleaning or kitchen reconfiguration without requiring disassembly.
• SUS304 (18/8) stainless steel construction throughout resists corrosion and bacterial harbourage, meeting the hygiene demands of commercial food preparation standards.
• A 2-year parts-only warranty provides commercial operators with confidence in the long-term reliability of their investment.

Key Features

• Right-side outlet configuration: dishwasher inlet and sinks are positioned on the right when facing the bench.
• Overall dimensions: 1200mm wide x 700mm deep x 900mm high.
• Benchtop material: 1.2mm SUS304 (18/8) stainless steel.
• Benchtop lined with XPS insulation board (15mm thick) and a stainless steel panel underneath.
• Special stainless steel 'U' channel reinforcements under the benchtop; number of channels increases with bench width.
• Load rating for 1200mm wide bench: 320kg.
• Splashback: stainless steel backed, 180mm high and 30mm thick, bevelled and fully enclosed.
• Legs: 1.2mm stainless steel, 42mm diameter, fully enclosed.
• Standard configuration: 4 legs per bench (2100mm and 2400mm wide benches include 6 legs).
• Fully adjustable polished stainless steel disc feet that complement the leg finish.
• Optional lockable castor kits available.
• Supplied flat-packed for ease of transport.
• Includes assembly instruction manual and all required tools.
• Specially designed for quick and simple assembly.
• 2-year parts-only warranty.

Specifications

• Width (mm): 1200
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 40.05
• Packed Width (mm): 770
• Packed Depth (mm): 1270
• Packed Height (mm): 275
• Shipping Weight: 42
• Warranty (months): 2 Years Parts Only
• Splash Back: 180 mm high; 30 mm thick
