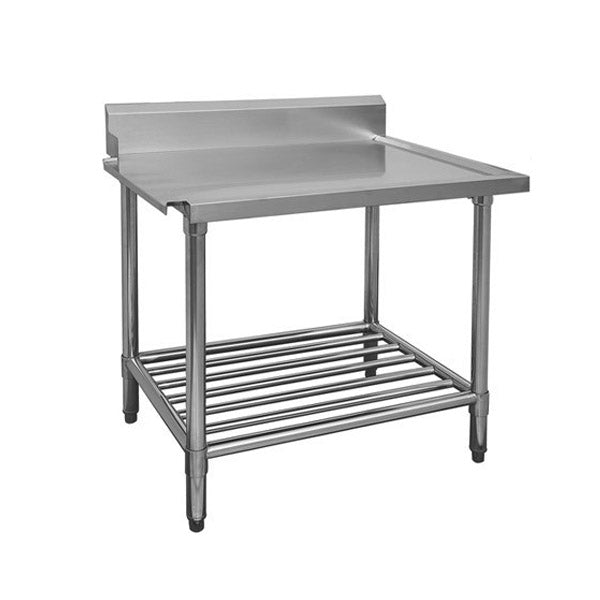

Modular Systems WBBD7-1500L/A All Stainless Steel Dishwasher Bench Left Outlet

Overview

Modular Systems WBBD7-1500L/A All Stainless Steel Dishwasher Bench Left Outlet

The Modular Systems WBBD7-1500L/A is a 1500mm wide all stainless steel dishwasher bench configured with a left-side outlet, meaning the dishwasher inlet and sinks are positioned to the left when facing the bench. Purpose-built for professional commercial kitchens, it delivers a robust, hygienic warewashing workstation that integrates seamlessly into high-volume service environments such as restaurants, cafes, catering facilities and institutions.

Supplied flat-packed with all necessary assembly tools and an instruction manual, this bench is engineered for quick and straightforward on-site setup. SUS304 (18/8) stainless steel construction throughout, combined with XPS board-lined benchtops, 'U' channel underside reinforcements, fully enclosed legs and bevelled splashbacks, ensures long-term structural integrity and ease of cleaning. A 2-year parts-only warranty backs the unit for commercial peace of mind.

Key Benefits

• Left-side dishwasher inlet and sink configuration supports logical workflow direction in kitchens where soiled ware moves from right to left, reducing cross-traffic and improving throughput.
• Flat-packed delivery with included tools and instruction manual minimises freight costs and makes installation straightforward without specialist tradespeople.
• SUS304 (18/8) stainless steel benchtop material resists corrosion, staining and bacterial growth, supporting food-safe hygiene standards in demanding wash-up areas.
• XPS board lining beneath the benchtop surface reduces noise and condensation, making the workstation more comfortable during extended service periods.
• Increasing numbers of 'U' channel reinforcements as bench width grows means the 1500mm top is structurally rated to handle heavy loads, with a 360kg load rating noted for this width.
• Fully adjustable polished stainless steel disc feet compensate for uneven floors and maintain a stable, level working surface at all times.
• Optional lockable castor kits allow the bench to be repositioned easily for cleaning behind equipment or reconfiguring the kitchen layout.
• Fully enclosed, folded-under legs and splashbacks prevent debris accumulation in hard-to-reach cavities, simplifying daily and periodic cleaning routines.
• A 2-year parts-only warranty provides commercial operators with ongoing support and confidence in the longevity of the investment.

Key Features

• Left outlet configuration: dishwasher inlet and sinks are on the left side when facing the bench.
• Overall dimensions: 1500mm wide x 700mm deep x 900mm high.
• Benchtop material: 1.2mm SUS304 (18/8) stainless steel.
• Benchtop lined with XPS insulation board (15mm thick) and a stainless steel panel underneath for rigidity and noise reduction.
• Special stainless steel 'U' channel reinforcements under the benchtop; number of channels increases with bench width for proportional structural support.
• Load rating for 1500mm wide bench: 360kg.
• Splashback: 1.2mm stainless steel, 180mm high and 30mm thick, bevelled edges, fully enclosed and stainless steel backed.
• Legs: 1.2mm stainless steel, 42mm diameter, fully enclosed construction.
• Standard configuration: 4 legs (6 legs on 2100mm and 2400mm wide benches).
• Fully adjustable stainless steel polished disc feet, matched to leg diameter for a consistent finish.
• Optional lockable castor kits available for mobility.
• Optional leg brace available as an alternative to a solid shelf; must be specified at time of order.
• Supplied flat-packed for ease of transport and reduced freight costs.
• Comes with assembly instruction manual and all required tools.
• Specially designed for quick and simple on-site assembly.
• Weight: 46.9kg.
• 2-year parts-only warranty.

Specifications

• Width (mm): 1500
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 46.9
• Packed Width (mm): 770
• Packed Depth (mm): 1570
• Packed Height (mm): 275
• Shipping Weight: 50
• Warranty (months): 2 Years Parts Only
• Capacity (Litres): 600
• Splash Back: 180 mm high; 30 mm thick
