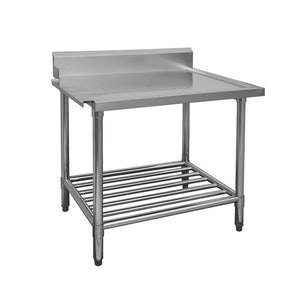

Modular Systems WBBD7-1800L/A All Stainless Steel Dishwasher Bench Left Outlet

Overview

Modular Systems WBBD7-1800L/A All Stainless Steel Dishwasher Bench Left Outlet 1800mm

The Modular Systems WBBD7-1800L/A is a purpose-built commercial dishwasher bench engineered for high-volume professional kitchens, cafes, restaurants and catering facilities. Constructed from SUS304 (18/8) stainless steel throughout, this 1800mm wide bench features a left-side outlet configuration, meaning the dishwasher inlet and sinks are positioned on the left when facing the bench, making it easy to plan an efficient, logical warewashing workflow.

Supplied flat-packed for straightforward transport and delivery, the bench is specially designed for quick and simple on-site assembly and comes complete with an instruction manual and all required tools. Robust structural details including XPS-lined benchtops, stainless steel 'U' channel reinforcements, fully enclosed bevelled splashbacks and fully adjustable polished disc feet combine to deliver a durable, hygienic and long-lasting workstation rated to carry 400kg on the 1800mm width.

Key Benefits

• Left-side outlet configuration positions the dishwasher inlet and sinks on the left when facing the bench, supporting a logical, efficient kitchen workflow
• Flat-packed delivery with included tools and instruction manual makes transport easy and on-site assembly quick, reducing installation time and cost
• SUS304 (18/8) stainless steel construction throughout provides excellent corrosion resistance and meets commercial kitchen hygiene standards
• XPS board lining and stainless steel 'U' channel reinforcements beneath the benchtop deliver a rigid, stable work surface capable of supporting up to 400kg at 1800mm width
• Fully adjustable stainless steel polished disc feet allow precise levelling on uneven floors, while optional lockable castor kits add flexibility for kitchens that need to reconfigure equipment
• Bevelled, fully enclosed splashbacks with stainless steel backing protect walls from moisture and are easy to wipe down, supporting fast end-of-service cleaning
• Scalable leg configuration (4 legs for this 1800mm bench, 6 legs on 2100mm and 2400mm models) ensures structural integrity across the full product range
• Two-year parts-only warranty provides commercial peace of mind and reflects the quality of Modular Systems manufacturing

Key Features

• Left outlet configuration: dishwasher inlet and sinks are on the left side when facing the bench
• Overall dimensions: 1800mm wide x 700mm deep x 900mm high
• Benchtop material: 1.2mm SUS304 (18/8) stainless steel
• Benchtop lined with XPS board (15mm thick) and a stainless steel panel for rigidity and insulation
• Special stainless steel 'U' channel reinforcements under the benchtop; number of channels increases with bench width
• Load rating: 400kg for the 1800mm wide bench
• Splashback: stainless steel backed, 180mm high and 30mm thick, bevelled and fully enclosed
• Legs: 1.2mm stainless steel, 42mm diameter, fully enclosed
• 4 legs supplied with this 1800mm bench (2100mm and 2400mm wide benches use 6 legs)
• Fully adjustable stainless steel polished disc feet that complement the leg finish
• Optional lockable castor kits available for mobile configurations
• Optional leg brace available in place of solid shelf (specify on order if required)
• Supplied flat-packed for ease of transport
• Comes with instruction manual and all assembly tools included
• Specially designed for quick and simple assembly
• Weight: 52.3kg
• Warranty: 2 years parts only

Specifications

• Width (mm): 1800
• Depth (mm): 700
• Height (mm): 900
• Weight (kg): 52.3
• Packed Width (mm): 770
• Packed Depth (mm): 1870
• Packed Height (mm): 275
• Shipping Weight: 58
• Warranty (months): 2 Years Parts Only
• Capacity (Litres): 600
• Splash Back: 180 mm high; 30 mm thick
