Overview

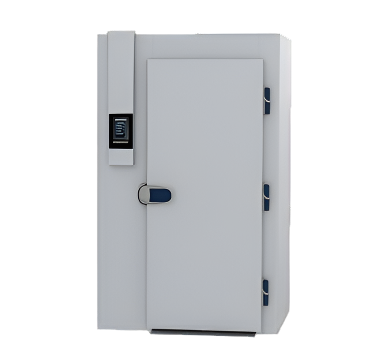

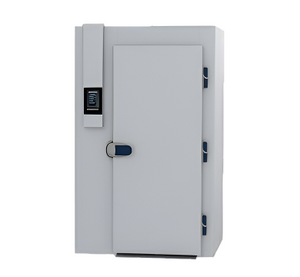

Friginox MX27-STS7-C 2 Tray Roll-In Blast Chiller with Remote Condensing Unit

The Friginox MX27-STS7-C is a heavy-duty roll-in blast chiller designed for high-volume commercial kitchens requiring rapid, safe chilling of large food batches. Built to accommodate two 1/1 GN trolleys, the unit is available in single-access or pass-through configurations with various door-opening arrangements to suit different kitchen layouts, and operates from a remote condensing unit for quieter, more flexible installation.

The MX27-STS7-C is controlled via a 7-inch ergonomic touchscreen offering 40 fully programmable cycles and a favourites shortcut key. Chilling modes available on the C model include Soft Chill, Hard Chill, and Self Adaptive Intelligent Chilling, complemented by a range of auxiliary capabilities — ice cream hardening, raw fish sanitisation, ventilation drying, and multiple-phase timers — making this unit a comprehensive food safety and production tool well beyond standard blast chilling.

Key Benefits

• Rapidly reduces food temperature through the danger zone, protecting food safety and supporting full HACCP compliance via the built-in USB HACCP recorder.
• Self Adaptive Intelligent Chilling automatically adjusts the process to the load, reducing operator guesswork and preserving food texture, moisture, and shelf life.
• Roll-in trolley design allows entire GN trolleys to be loaded directly, minimising handling time and labour during high-volume batch production.
• Pass-through access option enables a continuous workflow between kitchen and service or cold storage areas without backtracking.
• 40 programmable cycles with a favourites key giving instant access to the last nine programs speeds up repeat operations during busy service periods.
• Expanded production capability is provided through additional operating modes covering ice cream hardening, ventilation drying, raw fish sanitisation, and customisable multi-phase timers.
• Automatic hold mode activates after each cycle to keep product at safe temperature until it can be transferred, reducing the risk of temperature abuse.
• A 3-point core temperature probe combined with probe or timer mode operation ensures accurate, consistent results regardless of load size or food type.
• Thawing and defrosting can be performed with the door closed, and manual defrost includes automatic time control, reducing maintenance effort and energy use.

Key Features

• Capacity: 2 x 1/1 GN trolleys (trolleys not included)
• Chilling load: 160 kg (load capacity may vary depending on food thermal conductivity, product thickness, and container used)
• External dimensions: W 1320 mm x D 1180 mm x H 2170 mm
• Internal dimensions, single-access version: W 760 mm x D 960 mm x H 1885 mm
• Internal dimensions, pass-through version: W 760 mm x D 1020 mm x H 1885 mm
• Remote condensing unit configuration; remote condensing unit not included
• Single-access or optional pass-through access with various door-opening configurations available
• Available in right-hand or left-hand door versions; right-hand version shown as standard
• 7-inch ergonomic touchscreen with large keys for straightforward operation
• C model chilling modes: Soft Chill, Hard Chill, and Self Adaptive Intelligent Chilling, with both probe mode and timer mode operation
• Auxiliary operating modes include ice cream hardening, ventilation drying, raw fish sanitisation, and multiple timers with customisable phases
• 40 fully programmable cycles with a favourites key providing shortcuts to the last 9 programs used
• Pre-chilling cycle key to maximise thermal efficiency before loading
• Automatic hold mode activates at the end of each cycle
• 3-point core temperature probe included
• USB HACCP recorder for regulatory data logging
• Thawing and defrosting performed with door closed
• Manual defrost with automatic control of defrost duration
• Refrigerant: R452A (alternative refrigerant types available on request)
• Insulation: 80 mm injected polyurethane foam
• Supplied with 20 mm insulated stainless steel floor and ramp, expansion valve, and solenoid valve
• Assembly required; optional extras including printer and data transfer board with UV capabilities must be nominated at the time of ordering

Specifications

• Width (mm): 760
• Depth (mm): 960
• Height (mm): 1885
• Weight (kg): 999.0
