Overview

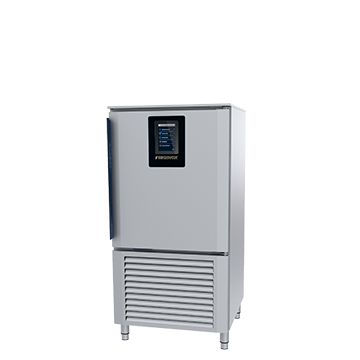

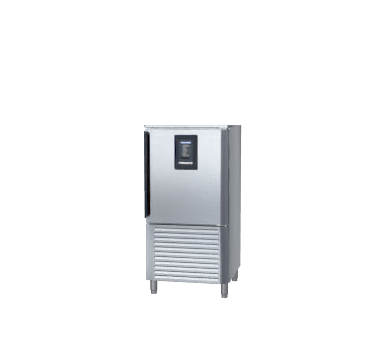

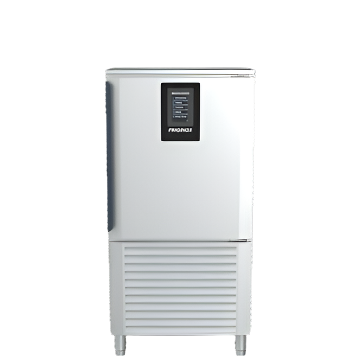

Friginox MX45AT7R 10 Tray Reach-In Blast Chiller / Freezer

The Friginox MX45AT7R is a professional reach-in blast chiller and freezer designed for high-volume commercial kitchens, restaurants, hotels, bakeries, hospitals, and catering operations that demand reliable, HACCP-compliant food preservation. With a 10 x 1/1 GN tray capacity, 45 kg blast chilling capacity, and 20 kg blast freezing capacity, it handles substantial batch cooking output while protecting food texture, moisture, flavour, and shelf life.

At the heart of the unit is a 7-inch ergonomic touchscreen with large keys, offering intuitive access to a comprehensive suite of chilling and freezing functions including Soft Chill, Hard Chill, Soft Freeze, Hard Freeze, Self Adaptive Intelligent Chilling, and both probe and timer-controlled modes. Built with 304 stainless steel construction, 60 mm injected polyurethane foam insulation, an eco-friendly R455A refrigerant, and a double airflow evaporator, the MX45AT7R is engineered for energy-efficient, long-term performance in demanding foodservice environments.

Key Benefits

• Rapidly blast chills and freezes hot food, reducing the time spent in the food safety danger zone and supporting HACCP compliance across all service types.
• Self Adaptive Intelligent Chilling automatically adjusts cooling air temperature to suit the product being processed, preserving texture, moisture, and flavour while minimising food waste.
• 40 programmable cycles with a favourites key and quick-access shortcuts to the last 9 programs used streamline workflow and reduce operator training time.
• A 3-point core temperature probe ensures precise monitoring throughout the chilling or freezing process, giving operators confidence that food has reached the required internal temperature.
• Automatic hold mode activates after each cycle, keeping food at the correct storage temperature until the operator is ready to unload, reducing the risk of temperature abuse.
• The pre-chilling cycle key allows the cabinet to be pre-cooled before loading, maximising thermal efficiency and cycle performance during peak service periods.
• Auxiliary functions including ice cream hardening, ventilation drying, raw fish sanitisation, and customisable multi-phase timers extend the unit's versatility across a wide range of culinary applications.
• Eco-friendly R455A refrigerant gas replaces older HFC refrigerants, supporting more sustainable kitchen operations without compromising chilling performance.
• Automatic fan stop when the door is opened and removable shelf runners simplify both daily operation and cleaning, reducing maintenance downtime.

Key Features

• 10 x 1/1 GN tray capacity with 70 mm tray spacing
• 45 kg blast chilling capacity and 20 kg blast freezing capacity (load capacities vary with food type, thickness, and container used)
• 7-inch ergonomic touchscreen controller with large keys for ease of use
• Operating modes: Soft Chill, Hard Chill, Soft Freeze, Hard Freeze, Self Adaptive Intelligent Chilling, Probe mode, and Timer mode
• Auxiliary functions: ice cream hardening, ventilation drying, raw fish sanitisation, and multiple timers with customisable phases
• 40 programmable cycles with a favourites key providing shortcuts to the last 9 programs used
• Pre-chilling cycle key to maximise unit efficiency before loading
• Automatic hold mode activates after each cycle is completed
• 3-point core temperature probe for accurate internal food temperature monitoring
• Refrigerant evaporator with double airflow for even and efficient cooling throughout the cabinet
• Air-cooled condensing unit
• Eco-friendly R455A refrigerant gas
• Automatic fan stop triggered when the door is opened
• Manual defrosting with automatic time control
• 60 mm thick injected polyurethane foam insulation, free of CFC, HCFC, and HFC
• 304 stainless steel interior and exterior construction
• Removable shelf runners compatible with GN 1/1
• Supplied with 10 pairs of runners
• Optional extras available and must be specified at time of order

Specifications

• Width (mm): 770
• Depth (mm): 790
• Height (mm): 1565
• Weight (kg): 340.0
