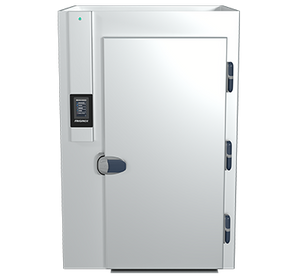

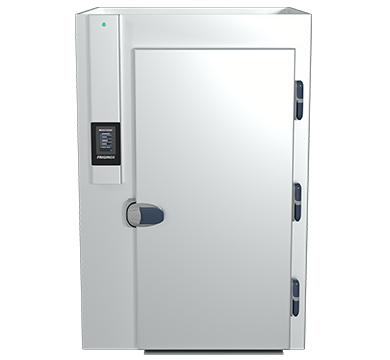

Friginox MX4STS7-CF Roll-In Blast Chiller and Freezer (4 Trolley Capacity)

The Friginox MX4STS7-CF is a heavy-duty roll-in blast chiller and freezer designed for high-volume commercial operations including production kitchens, hotels, hospitals, bakeries, and large-scale catering facilities. Built to handle the rigours of central kitchen and commissary food production environments, it accommodates four 1/1 GN trolleys and delivers a 320 kg blast chilling capacity alongside a 150 kg blast freezing capacity. The unit is offered in single-access or pass-through configurations with various door opening options, and is powered by a separately installed remote condensing unit (sold separately).

At the core of this unit is Friginox's Self-Adaptive Intelligent Chilling technology, which continuously adjusts the cooling air temperature to match the specific product being processed, preserving texture, moisture, flavour and shelf life while supporting HACCP compliance. Operators interact with the system via a 7-inch ergonomic touchscreen featuring large, easy-to-use keys. The MX4STS7-CF supports an extensive range of chilling, freezing and specialist functions, among them ice cream hardening, a ventilation-based drying mode, a raw fish sanitisation programme, and multiple timers each configurable with individual phases, making it exceptionally versatile across diverse commercial kitchen applications.

Key Benefits

• Rapid blast chilling and shock freezing locks in food quality, reduces waste, and extends shelf life across large production batches.
• Self-Adaptive Intelligent Chilling automatically calibrates cooling air temperature to the specific product being processed, delivering optimised results without any manual adjustment.
• Pass-through access configuration enables seamless workflow in high-throughput kitchens, reducing handling time and cross-contamination risk.
• A USB HACCP recorder and 3-point core temperature probe provide accurate temperature logging and full regulatory compliance documentation.
• A dedicated suite of specialist programmes, including an ice cream hardening cycle, a ventilation drying mode and a raw fish sanitisation function, broadens the unit's usefulness across a wide range of food categories.
• Automatic hold mode activates at the conclusion of each cycle, maintaining safe storage temperatures without requiring operator intervention.
• Closed-door thawing and defrosting capability, together with manual defrost featuring automatic time control, simplifies maintenance and reduces operational downtime.
• Thermally treated door frames prevent moisture build-up during intensive production cycles, supporting hygiene standards and reducing the frequency of manual cleaning.
• Forty programmable cycles combined with a favourites shortcut key giving instant access to the nine most recently used programmes accelerates repetitive production workflows.

Key Features

• Capacity for 4 x 1/1 GN roll-in trolleys (trolleys not included)
• 320 kg blast chilling load capacity; 150 kg blast freezing capacity (load capacity may vary depending on thermal conductivity, product thickness and container used)
• External dimensions: W 1460 mm x D 1590 mm x H 2170 mm
• Internal dimensions, single-access version: W 900 mm x D 1380 mm x H 1885 mm
• Internal dimensions, pass-through version: W 900 mm x D 1440 mm x H 1885 mm
• Available in single-access or pass-through configuration with various door opening options
• Right-hand side version standard; left-hand side available on request
• Operates from a remote condensing unit (remote condensing unit sold separately and not included)
• CF model operating modes: Soft Chill, Hard Chill, Soft Freeze, Hard Freeze, Self-Adaptive Intelligent Chilling, Probe mode and Timer mode
• Specialist programmes: ice cream hardening cycle, ventilation-based drying mode, raw fish sanitisation function, and multiple timers each with individually configurable phases
• 7-inch ergonomic touchscreen control panel with large keys for ease of use
• 40 programmable cycles with a favourites key providing shortcuts to the nine most recently used programmes
• Pre-chilling cycle key to maximise operational efficiency
• Automatic hold mode activated after each completed cycle
• 3-point core temperature probe for precise internal product monitoring
• USB HACCP recorder for food safety compliance and temperature data logging
• Thawing and defrosting function operable with the door closed
• Manual defrost with automatic time control

Specifications

• Width (mm): 900
• Depth (mm): 1380
• Height (mm): 1885
• Weight (kg): 999.0
