Overview

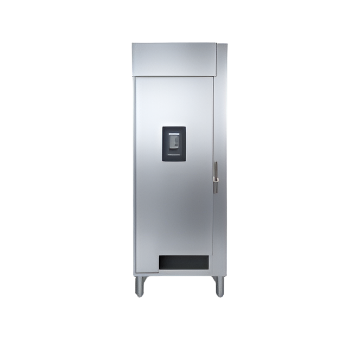

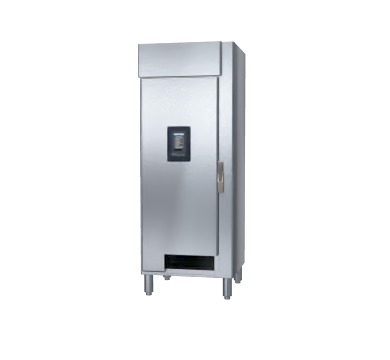

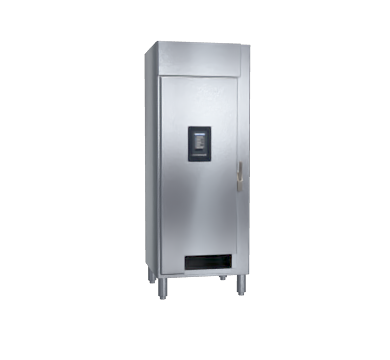

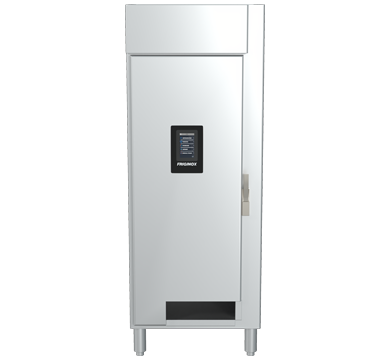

Friginox MX65cAT7R-C Blast Chiller – 20-Tray Roll-In, 85 kg Capacity

The Friginox MX65cAT7R-C is a heavy-duty roll-in blast chiller engineered for high-volume commercial kitchens, bakeries, hotels, hospitals, catering operations and commissary facilities. Built to accept a 1/1 GN, 20-tray rolling trolley with an 85 kg blast chilling capacity, the unit is purpose-designed for seamless direct transfer from a Convotherm 20-tray combi oven rack, eliminating manual reloading between cooking and chilling. Alternative combi oven rack formats can be accommodated and must be nominated when placing the order.

Powered by eco-friendly R455A refrigerant and insulated with 60 mm injected polyurethane foam that is entirely free of CFCs, HCFCs and HFCs, the MX65cAT7R-C delivers intelligent, energy-efficient chilling with a full suite of programmable functions. Its Self Adaptive Intelligent Chilling technology automatically adjusts cooling air temperatures to suit the product being processed, protecting texture, moisture, flavour and shelf life while supporting HACCP compliance and batch cooking operations.

Key Benefits

• Roll-in trolley compatibility with Convotherm 20-tray combi oven racks enables direct oven-to-chiller transfer, cutting handling time and reducing food safety risk during the temperature danger zone.
• Self Adaptive Intelligent Chilling automatically modulates air temperature to match each product type, preserving texture, moisture and shelf life while minimising food waste.
• A library of 40 fully programmable chilling cycles, combined with a favourites key giving rapid recall of the nine most recently run programs, simplifies repeat production tasks and speeds up operator workflow.
• A 3-point core temperature probe and integrated USB HACCP recorder provide accurate monitoring and auditable records to support food safety compliance.
• Specialist auxiliary functions including ice cream hardening, raw fish sanitisation and ventilation drying expand the unit's versatility well beyond standard blast chilling.
• Automatic hold mode activates at the end of every cycle to keep product at a safe temperature until the operator is ready, reducing the risk of unattended food warming.
• A dedicated pre-chilling function brings the cabinet to optimal temperature before loading, maximising chilling efficiency and protecting product quality from the start of each batch.
• Thawing and defrosting with the door closed, plus manual defrosting with automatic time control, keeps the unit operational and reduces downtime during service periods.
• R455A refrigerant and CFC/HCFC/HFC-free insulation contribute to a reduced environmental footprint while meeting contemporary refrigerant compliance requirements.

Key Features

• Roll-in capacity for a 1/1 GN, 20-tray trolley with an 85 kg blast chilling load (load capacity may vary depending on thermal conductivity, product thickness and container used).
• Designed for direct transfer from a Convotherm 20-tray combi oven rolling rack; trolley is not supplied with the unit. Alternative combi oven rack formats are available and must be specified at the time of ordering.
• Air-cooled condensing unit.

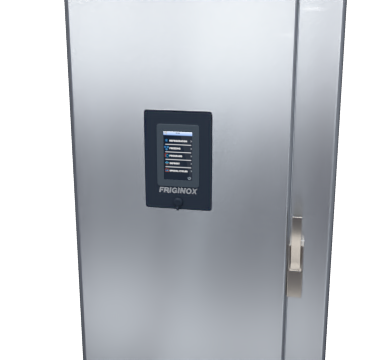

• 7-inch ergonomic touchscreen control panel with large keys for straightforward, intuitive operation.
• Blast chiller (C) model operating modes: Soft Chill, Hard Chill, Self Adaptive Intelligent Chilling, Probe mode and Timer mode.
• Auxiliary functions: ice cream hardening, ventilation drying, raw fish sanitisation, and multiple timers with fully customisable phases.
• 40 programmable chilling cycles with a favourites key providing shortcuts to the nine most recently used programs.
• Dedicated pre-chilling key to bring the cabinet to peak operating temperature prior to loading.
• Refrigerant evaporator with double air flow for consistent, even temperature distribution throughout the chilling chamber.
• Automatic hold mode activated upon completion of each chilling cycle.
• 3-point core temperature probe for precise internal product temperature monitoring.
• USB HACCP recorder for downloadable temperature logging and compliance documentation.
• Thawing and defrosting operable with the door closed; manual defrosting with automatic time control to minimise operational downtime.
• 60 mm injected polyurethane foam insulation, free of CFCs, HCFCs and HFCs.
• R455A eco-friendly refrigerant.

Specifications

• Width (mm): 850
• Depth (mm): 790
• Height (mm): 2420
• Weight (kg): 495.0
