Overview

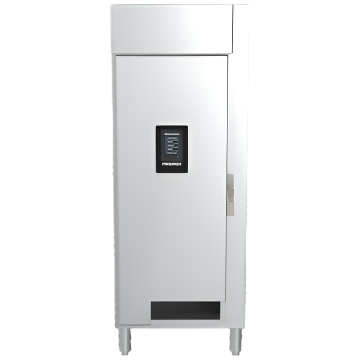

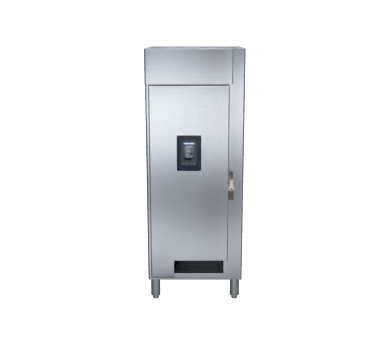

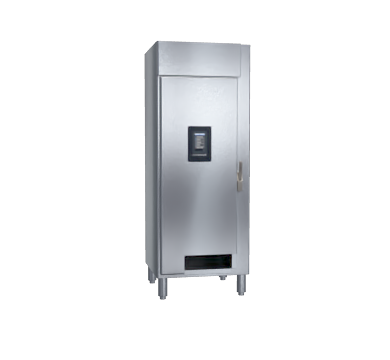

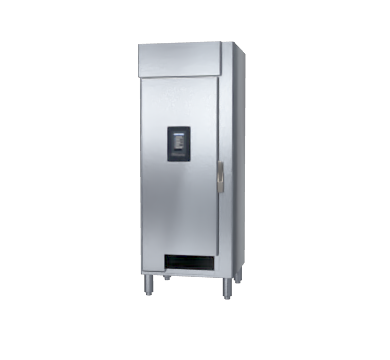

Friginox MX65cAT7R-CF 20 Tray Roll-In Blast Chiller and Freezer

The Friginox MX65cAT7R-CF is a heavy-duty roll-in blast chiller and freezer built for demanding high-volume environments including commercial kitchens, bakeries, hotels, hospitals, catering facilities and commissary operations. The unit accommodates 20 x 1/1 GN trays via direct roll-in transfer of a Convotherm 20 tray combi trolley rack, delivering a chilling capacity of 85 kg and a freezing capacity of 40 kg per cycle, with load capacities varying depending on thermal conductivity, product thickness and the container used. The trolley is not included, and alternative combi trolley rack configurations can be nominated at the point of order.

Control is managed through a 7-inch ergonomic touchscreen featuring generously sized keys, and Friginox's Self Adaptive Intelligent Chilling technology automatically modulates cooling air temperatures to match the product being processed, safeguarding texture, moisture and shelf life while keeping the unit fully HACCP compliant. The MX65cAT7R-CF operates on eco-friendly R455A refrigerant and is insulated with 60 mm injected polyurethane foam free of CFC, HCFC and HFC compounds. It arrives installation-ready, complete with an insulated stainless steel floor and ramp, drip tray, expansion valve, solenoid valve and piping.

Key Benefits

• Rapid blast chilling and shock freezing locks in food quality and curtails bacterial growth, directly supporting food safety and full HACCP compliance.
• Direct roll-in compatibility with Convotherm 20 tray combi trolley racks removes the need for manual tray-by-tray transfers, saving time and reducing handling risk during busy service periods.
• Self Adaptive Intelligent Chilling continuously optimises air temperature to suit the product load, preserving moisture, texture and flavour across a wide variety of foods.
• Forty programmable cycles, a dedicated favourites key and instant recall of the nine most recently used programs accelerate setup and keep repeat production workflows consistent.
• Specialist auxiliary functions covering ice cream hardening, raw fish sanitisation and ventilation drying extend the unit's usefulness well beyond standard blast chilling and freezing.
• The USB HACCP Recorder provides straightforward digital temperature logging to support audit readiness and ongoing regulatory compliance.
• R455A refrigerant combined with a double air flow evaporator and 60 mm polyurethane insulation free of CFC, HCFC and HFC compounds delivers energy-efficient operation with a reduced environmental footprint.
• Automatic hold mode engages at the conclusion of every cycle to maintain safe food temperatures without operator intervention, reducing the risk of temperature abuse between production runs.
• Door-closed thawing and defrosting, together with manual defrost with automatic time control, minimise temperature fluctuations and simplify daily maintenance routines.

Key Features

• 20 x 1/1 GN trolley roll-in capacity
• 85 kg blast chilling capacity and 40 kg blast freezing capacity per cycle (load capacities vary depending on thermal conductivity, product thickness and container used)
• Air-cooled condensing unit
• Direct roll-in transfer compatible with Convotherm 20 tray combi trolley rack; alternative combi trolley rack configurations can be nominated at time of order; trolley not included

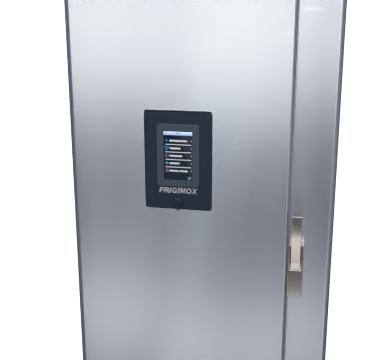

• 7-inch ergonomic touchscreen control panel with large, easy-to-operate keys
• Operating modes: Soft Chill, Hard Chill, Soft Freeze, Hard Freeze, Self Adaptive Intelligent Chilling, Probe mode and Timer mode
• Auxiliary functions include ice cream hardening, ventilation drying, raw fish sanitisation and multiple timers with user-defined phases
• 40 programmable cycles with a favourites key providing one-touch access to the nine most recently run programs
• Pre-chilling cycle function to maximise operational efficiency
• Eco-friendly R455A refrigerant
• Evaporator with dual air flow configuration
• 3-point core temperature probe included
• USB HACCP Recorder included
• Automatic hold mode activates at the end of each cycle
• Thawing and defrosting functions operable with the door closed
• Manual defrosting with automatic time control
• 60 mm injected polyurethane foam insulation, free of CFC, HCFC and HFC
• Stainless steel construction throughout interior and exterior
• Supplied with insulated stainless steel floor and ramp, drip tray, expansion valve, solenoid valve and piping ready for installation

Specifications

• Width (mm): 850
• Depth (mm): 790
• Height (mm): 2420
• Weight (kg): 495.0
