Overview

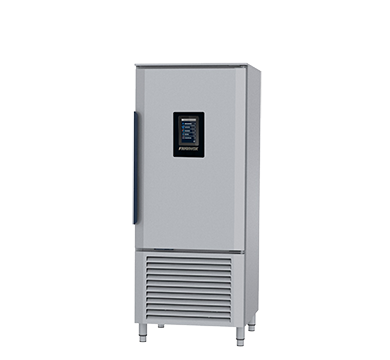

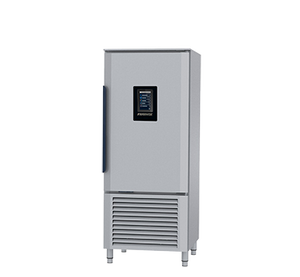

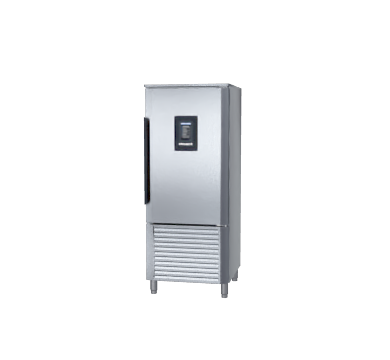

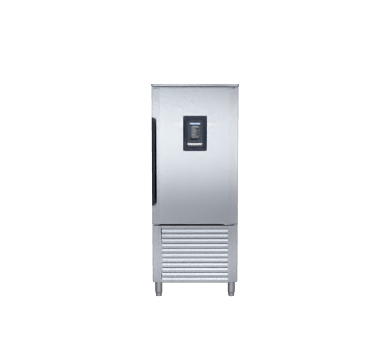

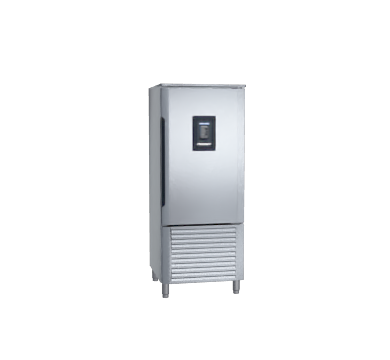

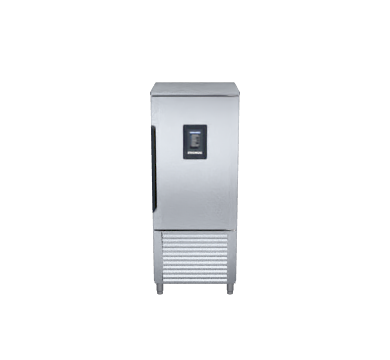

Friginox MX75AT7R 15-Tray Reach-In Blast Chiller and Freezer

The Friginox MX75AT7R is a reach-in blast chiller and freezer engineered for high-volume commercial kitchens that require precise, rapid temperature reduction. It delivers a chilling capacity of 75 kg and a freezing capacity of 35 kg, accommodating 15 x 1/1 GN trays at 70 mm spacing, and arrives ready for immediate deployment with 15 pairs of removable shelf runners included. A 7-inch ergonomic touch screen with large keys provides intuitive control, supported by 40 programmable cycles, a favourites shortcut to the nine most recently used programs, auxiliary operating modes and a dedicated pre-chilling cycle key.

Insulation consists of 60 mm injected polyurethane foam that is entirely free of CFC, HCFC and HFC compounds, and the unit runs on eco-friendly R455A refrigerant, supporting responsible refrigerant management and HACCP compliance. The cabinet measures 770 mm wide by 790 mm deep by 1925 mm high and weighs 380 kg. Its feature set spans Self Adaptive Intelligent Chilling, a 3-point core temperature probe, automatic hold mode and an automatic fan stop triggered whenever the door is opened, making it equally suited to batch cooking workflows and multi-product service environments.

Key Benefits

• Brings food temperatures down rapidly from hot to safe storage levels, protecting food safety and supporting HACCP compliance across high-output service environments.
• Preserves the texture, moisture and shelf life of chilled or frozen product by minimising ice crystal formation through controlled, rapid temperature reduction.
• The 7-inch touch screen with large keys simplifies operation for all kitchen staff, reducing training time and the likelihood of operator error during busy service periods.
• Forty programmable cycles paired with a favourites key giving instant access to the nine most recently run programs allows teams to standardise processes for repeated menu items and improve throughput consistency.
• Self Adaptive Intelligent Chilling automatically adjusts each cycle to the actual load present, reducing energy consumption and ensuring optimal results without requiring manual intervention.
• A 3-point core temperature probe combined with a choice of probe or timer operating mode gives operators precise control over the chilling process regardless of load density or container type.
• The dedicated pre-chilling cycle key brings the cabinet to its ideal operating temperature before loading, maximising cycle accuracy and efficiency during back-to-back batch runs.
• Automatic hold mode activates at the conclusion of every cycle to maintain safe product temperature until staff are ready to transfer goods, preventing any unintended temperature rise.
• Auxiliary functions including ice cream hardening, ventilation drying, raw fish sanitisation and multi-phase customisable timers extend the unit's versatility well beyond standard blast chilling applications.

Key Features

• Capacity: 15 x 1/1 GN trays at 70 mm tray spacing
• Chilling capacity up to 75 kg; freezing capacity up to 35 kg (load capacities vary with food thermal conductivity, product thickness and container type)
• Supplied with 15 pairs of removable GN 1/1 shelf runners
• 7-inch ergonomic touch screen controller with large keys for ease of use
• Operating modes: Soft Chill, Hard Chill, Soft Freeze, Hard Freeze, Self Adaptive Intelligent Chilling, Probe mode and Timer mode
• Auxiliary functions: ice cream hardening, ventilation drying, raw fish sanitisation and multiple timers with customisable phases
• 40 programmable cycles with a favourites key providing shortcuts to the nine most recently used programs
• Pre-chilling cycle key to bring the cabinet to optimal operating temperature and maximise efficiency
• 3-point core temperature probe for accurate load temperature monitoring
• Automatic hold mode activated at the end of each cycle to maintain safe product temperature
• Automatic fan stop triggered when the door is opened
• Air-cooled condensing unit
• Refrigerant evaporator with double air flow for even temperature distribution
• Eco-friendly R455A refrigerant gas
• Manual defrosting with automatic time control
• 60 mm thick injected polyurethane foam insulation, free of CFC, HCFC and HFC
• Reach-in cabinet configuration; dimensions 770 mm wide x 790 mm deep x 1925 mm high
• Unit weight: 380 kg

Specifications

• Width (mm): 770
• Depth (mm): 790
• Height (mm): 1925
• Weight (kg): 380.0
