Overview

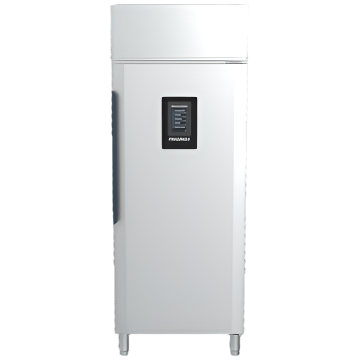

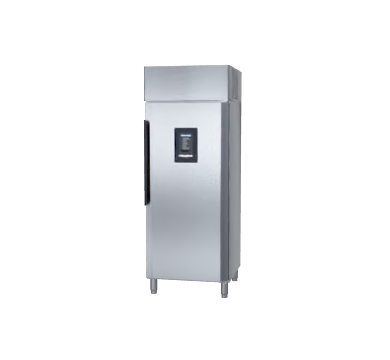

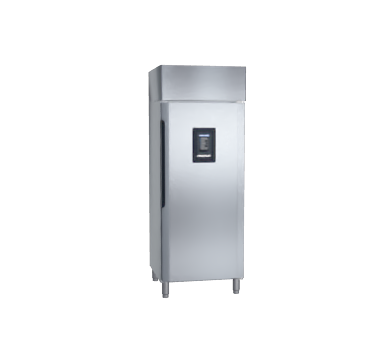

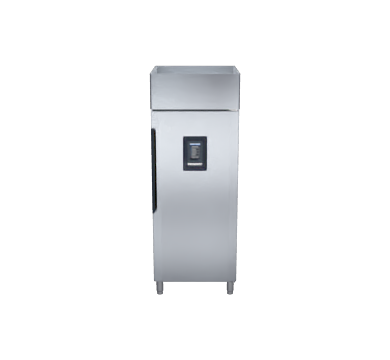

Friginox MX85AT7R 21-Tray Reach-In Blast Chiller and Freezer

The Friginox MX85AT7R is a heavy-duty reach-in blast chiller and freezer engineered for high-volume commercial kitchens, bakeries, hotels, hospitals, catering facilities, and large-scale production operations. The cabinet accommodates 21 full-size 1/1 GN trays on 66 mm-spaced runners, handles an 85 kg blast chilling load and a 40 kg blast freezing load, and is built throughout in 304 stainless steel with 60 mm injected polyurethane foam insulation and eco-friendly R455A refrigerant for durable, energy-efficient performance.

Operator control is delivered through a 7-inch ergonomic touchscreen with large, easy-to-read keys, while Self Adaptive Intelligent Chilling technology automatically tailors the cooling air temperature to each product to preserve texture, moisture, flavour, and shelf life. A broad range of specialist auxiliary functions — including ice cream hardening, ventilation drying, and raw fish sanitisation — together with 40 programmable cycle memory and a favourites key for rapid recall of the nine most recently used programs, make the MX85AT7R one of the most versatile and operator-friendly blast chillers available for professional foodservice environments.

Key Benefits

• Rapidly chills and freezes large batches of hot food, supporting HACCP compliance and reducing the time food spends in the temperature danger zone.
• Self Adaptive Intelligent Chilling continuously adjusts cooling air temperature to match the product being processed, preserving texture, moisture, flavour, and shelf life while minimising food waste.
• A 40-cycle programmable memory combined with a favourites key that gives one-touch access to the nine most recently used programs streamlines repetitive production kitchen workflows.
• Specialist auxiliary functions extending well beyond standard blast chilling include ice cream hardening, ventilation drying, raw fish sanitisation, and multi-phase customisable programmable timers.
• Automatic hold mode activates at the conclusion of every chilling or freezing cycle, maintaining food at a safe holding temperature without any operator intervention.
• A dedicated pre-chilling cycle key brings the cabinet to optimal operating temperature before each load, ensuring consistent chilling and freezing performance across every batch.
• Automatic fan stop whenever the door is opened improves energy efficiency and protects operators from cold air exposure during loading and unloading.
• Double airflow evaporator technology promotes even temperature distribution across all 21 tray positions for consistent results throughout the full cabinet.
• CFC-, HCFC-, and HFC-free insulation combined with R455A refrigerant supports sustainable kitchen operations without any compromise in performance.

Key Features

• Capacity for 21 full-size 1/1 GN trays positioned on 66 mm-spaced runners
• 85 kg blast chilling capacity and 40 kg blast freezing capacity (load capacities vary depending on thermal conductivity, product thickness, and container used)

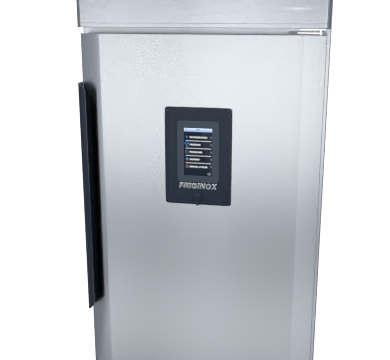

• 7-inch ergonomic touchscreen control panel with large keys for ease of use
• Operating modes: Gentle Chill, Rapid Chill, Gentle Freeze, Rapid Freeze, Self Adaptive Intelligent Chilling, Probe mode, and Timer mode
• Specialist auxiliary functions: ice cream hardening, ventilation drying, raw fish sanitisation, and multiple programmable timers with fully customisable phases
• 40-cycle programmable memory with a favourites key providing one-touch shortcuts to the nine most recently used programs
• Pre-chilling cycle key for bringing the unit to peak efficiency before loading
• Automatic hold mode that activates upon completion of each cycle
• 3-point core temperature probe for precise monitoring of product-centre temperature
• Automatic fan stop triggered by door opening
• Manual defrosting with automatic time control
• Refrigerant evaporator with double airflow technology for even temperature distribution throughout the cabinet
• Air-cooled condensing unit
• Eco-friendly R455A refrigerant gas
• 60 mm injected polyurethane foam insulation, free from CFC, HCFC, and HFC compounds
• 304 stainless steel interior and exterior construction
• Removable and adjustable shelf runners sized for 1/1 GN trays
• Supplied complete with 21 pairs of runners
• Built-in door latch ventilation system designed to promote hygiene within the cabinet interior
• Optional extras (must be specified at time of order): USB connection, printer and data transfer board, UV sterilisation lamp, thawing and defrosting with door closed, reduced fan speed (1 fan), FX39284955 pair of 304 stainless steel U-type runners

Specifications

• Width (mm): 770
• Depth (mm): 790
• Height (mm): 2235
• Weight (kg): 441.0
