Overview

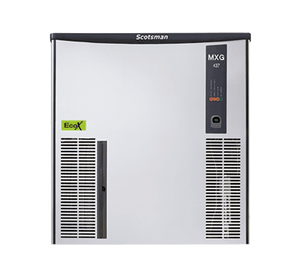

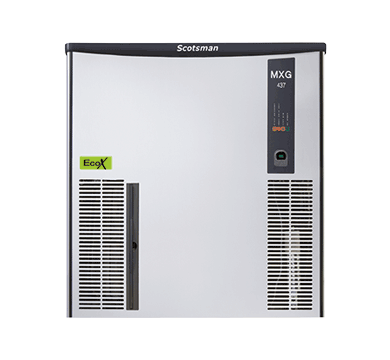

Scotsman MXG L 437 AS OX 165kg EcoX & XSafe Modular Gourmet Ice Maker

The Scotsman MXG L 437 AS OX is a modular, air-cooled gourmet ice maker delivering up to 165 kg of crystal-clear ice per 24 hours, making it a high-capacity solution for restaurants, hotels, bars, and catering operations where ice quality and presentation are critical. Each cube measures 38 mm diameter by 41 mm tall and weighs approximately 39 g, producing a round gourmet shape that melts slowly to keep drinks colder for longer without rapid dilution. The unit operates on the environmentally responsible EcoX R290 hydrocarbon refrigerant, which carries one of the lowest environmental impacts of any refrigerant gas available.

Hygiene is addressed on two fronts: Agion Technology is embedded into components to continuously resist microbial growth and odour development, while the XSafe Natural Sanitation System uses high-power ultraviolet light to generate a reactive oxygen mixture that flows through the machine, actively eliminating bacteria, viruses, mould, and yeast around the clock. A horizontal evaporator spray-system ensures ice is produced free from impurities, resulting in consistently pure, transparent cubes. The head-only design requires a compatible Scotsman storage bin such as the NB 393 or NB 530, allowing flexible configuration to suit available space and storage requirements.

Key Benefits

• Produces up to 165 kg of gourmet-quality ice per 24 hours, sustaining supply during the busiest service periods
• Round, slow-melting cubes reduce drink dilution, preserving flavour and presentation in premium beverage service
• XSafe UV sanitation system operates continuously to destroy bacteria, viruses, mould, and yeast without chemical intervention
• EcoX R290 hydrocarbon refrigerant delivers energy-efficient performance with a minimal environmental footprint
• Agion antimicrobial technology built into components suppresses microbial growth and prevents odour development between cleaning cycles
• Front-access condenser air filter and clean alert indicator simplify routine maintenance and reduce downtime
• Modular head-only format pairs with multiple Scotsman bin options, offering flexibility for different kitchen layouts and storage capacities
• External indicator lights provide clear at-a-glance operational status, helping staff identify issues quickly
• Robust stainless-steel exterior withstands the demands of a commercial kitchen environment while maintaining a professional appearance

Key Features

• 165 kg per 24-hour daily ice production rate
• Gourmet cube dimensions: 38 mm diameter x 41 mm tall, approximately 39 g per cube
• Air-cooled operation suitable for indoor commercial environments with a maximum ambient temperature of 43°C
• EcoX R290 hydrocarbon refrigerant gas for environmentally responsible, energy-efficient refrigeration
• XSafe Natural Sanitation System: high-power UV light generates reactive oxygen mixture to continuously eliminate viruses, bacteria, mould, and yeast
• Agion Technology integrated into components to resist microbial growth and prevent odour development
• Horizontal ice evaporator spray-system technology produces pure, clear, and impurity-free ice cubes
• Simple, reliable electromechanical controls for straightforward day-to-day operation
• Clean alert indicator signals when the filter requires attention
• Easy-access front condenser air filter for quick cleaning without tools
• External indicator lights display operational status at a glance
• Head-only modular unit requiring a compatible storage bin (Scotsman NB 393 or NB 530 recommended)
• Stainless-steel exterior construction for durability, hygiene, and commercial-grade finish
• Includes removable air filter, water hose, and drain hose
• Operates on 230V 50Hz single-phase power supply
• R290 refrigerant rated; unit dimensions 773 mm (W) x 705 mm (D) x 721 mm (H)
• Regular six-monthly water filter cartridge replacement and descaling of the evaporator plate required to maintain ice quality, machine longevity, and food safety compliance

Specifications

• Width (mm): 773
• Depth (mm): 705
• Height (mm): 721
• Weight (kg): 340.0
• Colour: Stainless Steel
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Capacity (Litres): 200
• Ice Production: 200
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Gourmet (Large)
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
