Overview

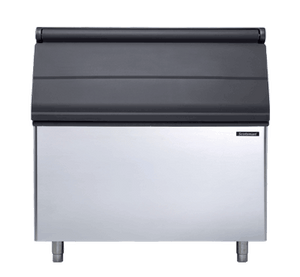

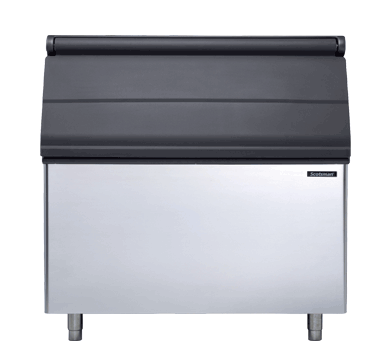

Scotsman NB 948 406kg Ice Storage Bin

The Scotsman NB 948 is a high-capacity 406kg ice storage bin purpose-built for commercial kitchens, hotels, bars, and high-volume beverage operations. Part of Scotsman's NB and UBH Series, which ranges from 109kg to 812kg storage capacity, it is designed to pair with a wide range of Scotsman modular ice maker heads, offering a hygienic, well-insulated holding solution that keeps ice fresh and ready during peak service periods.

Constructed with a stainless steel exterior and a rotocast plastic hinged door, the NB 948 features a slope-front design for straightforward ice access, high-density polyethylene insulation to minimise melt and reduce waste, and removable gaskets for easy cleaning. It ships complete with an ice scoop, scoop holder, water hose, and drain hose, and requires a compatible top cover (sold separately) to connect with Scotsman modular ice makers. This unit is designed for storage bin use only and is not a standalone ice-making unit. Dimensions: 1237mm wide x 868mm deep x 1269mm high.

Key Benefits

• 406kg storage capacity sustains a continuous, ready supply of ice through even the busiest service periods without interruption.
• High-density polyethylene insulation slows ice melt significantly, reducing waste and improving overall operational efficiency.
• Slope-front bin design positions ice at a convenient angle, making retrieval quick and ergonomic for kitchen and bar staff.
• Removable gaskets and a smooth interior liner simplify routine cleaning and sanitation, supporting food safety compliance.
• Built-in scoop holder keeps the ice scoop hygienic and within reach, minimising the risk of contamination during service.
• Compatible with a broad range of Scotsman modular cube, flake, and nugget ice maker heads, giving operators flexible system configuration options.
• Stainless steel exterior withstands the demanding conditions of a commercial kitchen environment while maintaining a clean, professional appearance.
• Arrives with ice scoop, water hose, and drain hose included, reducing additional procurement and simplifying installation.

Key Features

• 406kg maximum ice storage capacity suitable for high-volume foodservice and hospitality applications.
• Slope-front bin configuration for convenient, ergonomic ice access.
• Stainless steel bin exterior for durability and easy surface cleaning.
• Rotocast plastic hinged door providing robust, reliable access.
• High-density polyethylene insulation to minimise ice melt and maintain ice quality.
• Removable gaskets throughout for straightforward deep cleaning and sanitation.
• Built-in scoop holder to keep the ice scoop sanitary and accessible.
• Compatible with the following Scotsman modular ice maker heads: MXG 638, NW 608, NW 1008, NW 1408, and the flake and nugget models MF 36, MF 47, MF 57, MF 59, MF 69, MFN 46, and MFN 56.
• Requires a separately purchased top cover: CBT 48 EAMCD (suits the MXG 638, NW 608, NW 1008, and NW 1408 heads) or CBT 48 FMCD (suits the MF 36, MF 47, MF 57, MF 59, MF 69, MFN 46, and MFN 56 heads).
• Includes ice scoop, water hose, and drain hose as standard.
• Part of the NB and UBH Series, which ranges from 109kg to 812kg storage capacity to suit varying production requirements.
• Designed for storage bin use only; not a standalone ice-making unit.
• Dimensions: 1237mm wide x 868mm deep x 1269mm high.

Specifications

• Width (mm): 1237
• Depth (mm): 868
• Height (mm): 1269
• Weight (kg): 648.0
• Colour: Stainless Steel
• Shipping Weight: 98
• Packed Width (mm): 1300.0
• Packed Height (mm): 1300.0
• Packed Depth (mm): 900.0
• Shipping Cubic: 1.521000000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Capacity (Litres): 406
• Ice Storage: 150
• Installation Type: Storage Bin
