Overview

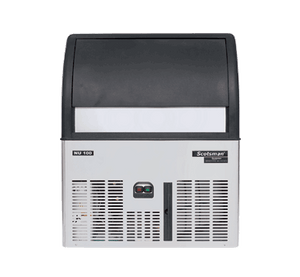

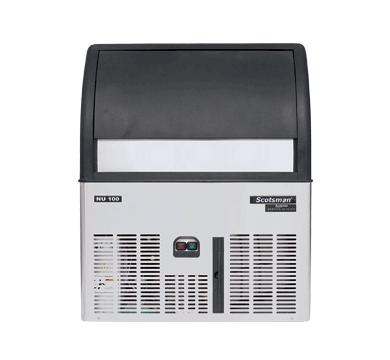

Scotsman NU 100 AS OX 45kg XSafe Self-Contained Dice Ice Maker

The Scotsman NU 100 AS OX is a self-contained dice ice maker producing up to 45kg of crystal-clear, slow-melting dice ice every 24 hours, with a 20kg built-in storage bin to keep a ready supply on hand. Designed for bars, cafés, restaurants, and small hotels, its compact 600mm-wide footprint and front-in, front-out airflow allow installation in tight under-counter spaces without sacrificing output or hygiene.

At the heart of this machine is the XSafe Natural Sanitation System, which uses high-power ultraviolet (UV) light to generate a reactive oxygen mixture that continuously eliminates bacteria, mould, yeast, and viruses around the clock, delivering clean, odour-free ice without manual intervention. Agion antimicrobial technology further resists microbial growth throughout the unit, while the vertical evaporator spray-system produces individual 22mm x 22mm x 22mm, 10g dice cubes with the clarity and density ideal for cocktails, soft drinks, bulk cooling, and ice bagging.

Key Benefits

• Consistent 45kg daily ice output meets high-volume demand in busy hospitality environments without the need for a remote condenser or external bin.
• XSafe UV sanitation runs automatically 24/7, eliminating pathogens and reducing the risk of contaminated ice reaching guests.
• Agion technology actively suppresses microbial growth and odour development throughout the machine, extending intervals between deep cleans.
• Front-to-front airflow means the unit can be installed flush against walls or within tight cabinetry runs where side or rear clearance is unavailable.
• One-touch cleaning mode significantly cuts labour time and simplifies routine maintenance for busy kitchen staff.
• The 20kg integrated storage bin and ergonomic sliding disappearing door provide quick, convenient ice access during peak service periods.
• External indicator lights give operators instant visibility of operational status and maintenance alerts, reducing the risk of unexpected downtime.
• Individual 10g dice cubes offer a large surface area for rapid chilling and slow melt rates, making them versatile for beverages, food display, and bulk cooling.
• Regular six-monthly water filter cartridge replacement and periodic evaporator de-scaling maintain consistent ice shape, thickness, and clarity over the machine's lifetime.

Key Features

• 45kg per 24-hour daily ice production capacity
• 20kg built-in storage bin with ergonomic sliding disappearing door for easy ice access
• Individual dice ice cubes measuring 22mm (W) x 22mm (D) x 22mm (H), weighing approximately 10g each
• XSafe Natural Sanitation System: high-power UV light generates a reactive oxygen mixture to automatically eliminate bacteria, mould, yeast, and viruses continuously
• Agion antimicrobial technology throughout the unit resists microbial growth and odour development, producing pure, clear, transparent ice cubes
• Vertical evaporator spray-system technology for consistent, high-clarity ice formation
• Air-cooled condensing unit with front-in, front-out airflow for installation in confined or under-counter spaces
• R404a refrigerant gas
• One-touch cleaning button for time and labour-saving routine maintenance
• Easy-access front condenser air filter for straightforward cleaning without tools
• Removable air filter for thorough periodic servicing
• Durable stainless-steel exterior construction
• External indicator lights displaying operational status and maintenance alerts
• Simple, reliable electromechanical controls
• Gravity drain only
• 10A cordset supplied; rated 230–240V, 1P+N+E, 50Hz, 450W
• Compressor rated at 780W
• Energy consumption: 9.2kWh per 24 hours
• Water consumption: 3.2 litres per hour
• Maximum ambient operating temperature: 40°C
• Includes removable air filter, ice scoop, water hose, and drain hose
• Optional leg kit available (part SC8700000200), compatible with NU 100, NU 150, and NU 220 models
• Water filter cartridge replacement recommended every six months; periodic evaporator de-scaling required to maintain ice quality
• Dimensions: 600mm (W) x 610mm (D) x 770mm (H)

Specifications

• Width (mm): 22
• Depth (mm): 22
• Height (mm): 22
• Weight (kg): 340.0
• Colour: Stainless Steel
• Water Consumption: 3.2 liters per hour
• Shipping Weight: 60
• Packed Width (mm): 600.0
• Packed Height (mm): 770.0
• Packed Depth (mm): 610.0
• Shipping Cubic: 0.281820000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Energy Consumption (kWh/24h): 9.2kW/hr
• Capacity (Litres): 30
• Ice Production: 100
• Ice Storage: 30
• Refrigeration Type: Air Cooled
• Cooling Type: Air Cooled
• Ice Type: Cube
• Max Ambient Temp (°C): 40
• Refrigerant: R290
• Ice Size: Half Dice
• Installation Type: Self-Contained
• Voltage/Phase: 230V 50Hz
