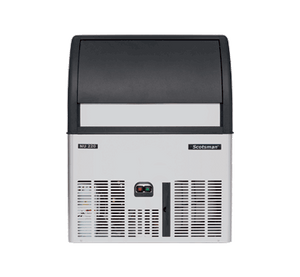

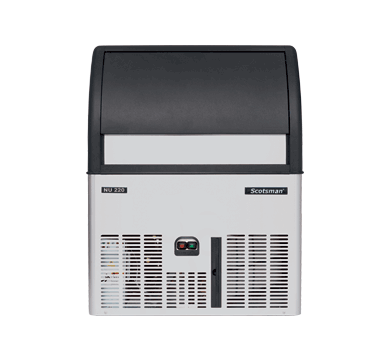

Scotsman NU 227 AS OX 95kg Self-Contained Dice Ice Maker

The Scotsman NU 227 AS OX is a self-contained, air-cooled ice maker capable of producing up to 95kg of crystal-clear dice ice every 24 hours, paired with a built-in 37kg storage bin for continuous, high-volume service across cafés, licensed venues, food service operations, accommodation providers, healthcare settings, and commercial kitchens. Each cube measures 22mm wide by 22mm deep by 22mm high and tips the scales at around 10 grams, delivering rapid cooling, excellent drink presentation, and versatility across soft drinks, cocktails, blended beverages, and food display applications.

Engineered for hygiene and ease of use, the NU 227 AS OX combines AgION antimicrobial technology with the integrated XSafe Natural Sanitation System to continuously inhibit microbial growth and odours, ensuring consistently pure and transparent ice. The front-in/front-out airflow design allows installation in tight spaces, and the unit's storage bin features a smooth sliding door that retracts out of sight, complemented by a single-button cleaning cycle and a front-facing condenser filter that can be removed and cleaned without tools. Operating on EcoX R290 hydrocarbon refrigerant and finished in a robust stainless steel exterior, the machine is built for long-term durability and reduced environmental impact.

Key Benefits

• High-volume 95kg daily ice output sustains demand during busy service periods without interruption.
• The 37kg integrated storage bin provides a ready reserve of ice, reducing gaps in supply during peak trading.
• Front-in/front-out airflow permits placement in confined undercounter or back-of-house spaces where side clearance is limited.
• AgION antimicrobial technology and the XSafe Natural Sanitation System work continuously to suppress microbial growth and odours, protecting ice purity and food safety standards.
• A single-button cleaning cycle reduces labour time and simplifies the maintenance routine for busy kitchen staff.
• Vertical evaporator spray-system technology produces consistently clear, well-formed dice cubes batch after batch.
• The front-facing condenser filter pulls out and wipes clean without any disassembly, helping maintain efficient airflow and extend machine life.
• R290 EcoX hydrocarbon refrigerant offers a low global warming potential, supporting sustainability goals in commercial operations.
• External indicator lights provide at-a-glance status monitoring and maintenance alerts, enabling prompt action before issues escalate.

Key Features

• 95kg daily ice production capacity under rated conditions
• 37kg built-in storage bin with a retractable sliding door that stows out of sight for easy ice access
• Dice ice cube dimensions: 22mm (W) x 22mm (D) x 22mm (H), with each cube weighing approximately 10g
• Air-cooled refrigeration system with front-in/front-out airflow for installation in tight spaces
• EcoX R290 hydrocarbon refrigerant gas for reduced environmental impact
• AgION antimicrobial technology resists microbial growth and odour development for pure, clear, transparent ice
• XSafe Natural Sanitation System provides continuous built-in hygiene protection
• Vertical evaporator spray-system technology for consistent, high-clarity ice cube formation
• Single-button cleaning cycle for time and labour savings during routine maintenance
• Front-access removable condenser air filter for simple cleaning without disassembly
• External indicator lights display operational status and maintenance alerts
• Stainless steel exterior construction for durability and easy cleaning
• Gravity drain only
• Electrical supply: 230-240V, 1P+N+E, 50Hz; 10A cordset supplied
• Maximum ambient operating temperature: 40°C
• Water consumption: 5 litres per hour
• Energy consumption: 15.6kWh per 24 hours
• Unit dimensions: 650mm (W) x 690mm (D) x 870mm (H)
• Packed weight: 77.5kg
• In the box: removable condenser air filter, ice scoop, water supply hose, and drain hose
• Regular descaling of the evaporator plate and six-monthly water filter cartridge replacement recommended to maintain ice quality and extend machine life

Specifications

• Width (mm): 22
• Depth (mm): 22
• Height (mm): 22
• Weight (kg): 340.0
• Colour: Stainless Steel
• Water Consumption: 5 liters per hour
• Shipping Weight: 77.5
• Packed Width (mm): 651.0
• Packed Height (mm): 870.0
• Packed Depth (mm): 690.0
• Shipping Cubic: 0.390795000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Energy Consumption (kWh/24h): 15.6kW/hr
• Capacity (Litres): 30
• Ice Production: 100
• Ice Storage: 30
• Refrigeration Type: Air Cooled
• Cooling Type: Air Cooled
• Ice Type: Dice Cube
• Max Ambient Temp (°C): 40
• Refrigerant: R290
• Ice Size: Half Dice
• Installation Type: Self-Contained
• Voltage/Phase: 230V 50Hz
