Overview

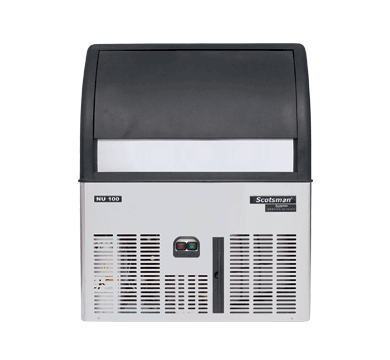

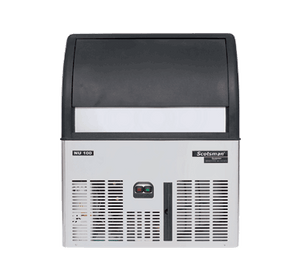

Scotsman NUH 100 AS OX 45kg XSafe Self-Contained Half Dice Ice Maker

The Scotsman NUH 100 AS OX is a self-contained half dice ice maker designed for cafés, bars, restaurants, and boutique hotels that need a reliable, hygienic ice supply in a compact footprint. Producing up to 45 kg of crystal-clear half dice ice per 24 hours and storing up to 20 kg in its built-in bin, this unit delivers a consistent, ready supply without the need for a separate storage unit. Its front-to-front air flow design makes it well suited to under-counter and tight-space installations, while 230V single-phase power on a 10A connection keeps installation straightforward.

Hygiene is central to this machine's design. The XSafe Natural Sanitation System works continuously to eliminate bacteria, mould, and odours, complemented by Agion antimicrobial technology built into the ice-contact components to keep every batch pure, clear, and odour-free. A vertical evaporator spray-system produces solid, slow-melting cubes ideal for cocktails and beverage service, while one-touch cleaning, an easy-access front condenser filter, and an ergonomic sliding disappearing door reduce the time and labour required for routine upkeep. Regular six-monthly water filter cartridge replacement and periodic de-scaling of the evaporator plate are recommended to maintain optimum ice quality and machine performance.

Key Benefits

• Produces up to 45 kg of half dice ice every 24 hours, supporting consistent service across small to medium venues.
• Integrated 20 kg storage bin means ice is always on hand without a separate bin purchase.
• XSafe Natural Sanitation System continuously eliminates bacteria, mould, viruses, and odours for safer, cleaner ice.
• Agion antimicrobial technology in ice-contact surfaces further resists microbial growth and keeps ice tasting fresh.
• Front in-and-out air flow allows installation in tight under-counter spaces without side clearance requirements.
• One-touch cleaning cycle saves significant time and labour compared to manual cleaning routines.
• Solid, crystal-clear, slow-melting cubes improve beverage presentation and reduce ice consumption per serve.
• External indicator lights provide at-a-glance operation status and maintenance alerts, reducing unexpected downtime.
• Ergonomic sliding disappearing door gives easy, hygienic access to the ice bin during busy service periods.

Key Features

• Daily ice production: up to 45 kg per 24 hours
• Integrated storage bin capacity: 20 kg
• Half dice cube dimensions: 10 mm (W) x 22 mm (D) x 28 mm (H), approximately 6 g per cube
• Air-cooled refrigeration, rated for ambient temperatures up to 40°C
• R290 natural refrigerant gas for energy-efficient, low-global-warming-potential operation
• XSafe Natural Sanitation System for continuous elimination of bacteria, mould, viruses, and odours
• Agion antimicrobial technology on ice-contact surfaces resists microbial growth and odour development
• Vertical evaporator spray-system technology produces solid, clear, slow-melting ice cubes
• Front in-and-out air flow design suited to under-counter and recessed installations
• Ergonomic sliding disappearing door for convenient, hygienic access to stored ice
• One-touch cleaning button for fast, labour-saving cleaning cycles
• Easy-access front condenser air filter simplifies routine maintenance
• External indicator lights display operational status and maintenance alerts
• Durable stainless steel exterior construction for a professional finish
• Electrical supply: 230–240 V, 1P+N+E, 50 Hz, 450 W, 10 A cordset supplied
• Dimensions: 600 mm (W) x 610 mm (D) x 770 mm (H)
• Includes removable air filter, ice scoop, water hose, and drain hose
• Optional leg kit available (part SC8700000200, compatible with NU 100, NU 150, and NU 220 models)
• Water filter cartridge should be replaced every six months; evaporator plate de-scaling required periodically to maintain ice quality
• Self-contained installation type; no separate bin or remote condenser required

Specifications

• Width (mm): 10
• Depth (mm): 22
• Height (mm): 28
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 60
• Packed Width (mm): 600.0
• Packed Height (mm): 770.0
• Packed Depth (mm): 610.0
• Shipping Cubic: 0.281820000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Capacity (Litres): 30
• Ice Production: 100
• Ice Storage: 30
• Refrigeration Type: Air Cooled
• Cooling Type: Air Cooled
• Ice Type: Cube
• Max Ambient Temp (°C): 40
• Refrigerant: R290
• Ice Size: Half Dice
• Installation Type: Self-Contained
• Voltage/Phase: 230V 50Hz
