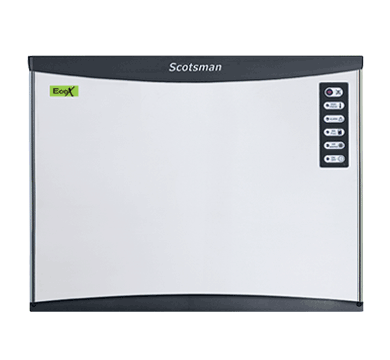

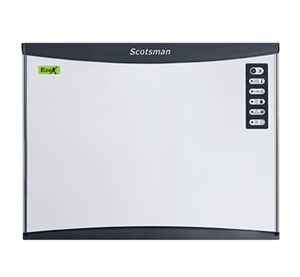

Scotsman NW 608 AS OX 290kg XSafe Modular Dice Ice Maker

The Scotsman NW 608 AS OX is a high-capacity modular dice ice maker producing up to 290 kg of crystal-clear, solid dice cubes every 24 hours, making it well suited to restaurants, bars, hotels, and catering operations with demanding ice requirements. Each cube measures 22 mm x 22 mm x 22 mm and weighs approximately 10 g, offering a large surface area that promotes rapid chilling in beverages, bulk cooling applications, and ice bagging. The air-cooled unit ships as a head-only machine and must be paired with a compatible Scotsman storage bin to form a complete modular ice system.

Hygiene and sustainability sit at the core of the NW 608 AS OX design. The XSafe Natural Sanitation System uses high-power ultraviolet light to generate a reactive oxygen mixture that continuously eliminates bacteria, mould, yeast, and viruses throughout the machine, producing clean and odourless ice around the clock. Agion antimicrobial technology further resists microbial growth and odour development across ice-contact surfaces. The unit is built from T304 grade stainless steel and uses the EcoX R290 natural hydrocarbon refrigerant, reflecting Scotsman's commitment to durable, environmentally responsible commercial equipment.

Key Benefits

• Delivers up to 290 kg of dice ice per 24 hours to keep pace with the demands of high-volume foodservice and beverage service without interruption.
• XSafe UV-based natural sanitation operates automatically 24/7, eliminating bacteria, mould, yeast, and viruses to ensure food-safe, odourless ice at all times.
• Agion antimicrobial technology embedded in ice-contact surfaces provides an additional layer of protection against microbial growth and unpleasant odours.
• Classic 22 mm dice cubes melt slowly and present clearly in glassware, improving drink quality, appearance, and yield for cocktails and soft drinks.
• Large dice cube surface area accelerates heat exchange, chilling beverages and bulk product faster than smaller ice formats.
• One-touch cleaning mode simplifies routine maintenance, saving labour time and helping staff keep the machine in peak hygienic condition.
• Front evaporator access and auto-alert indicator lights make servicing and monitoring operation status straightforward, minimising downtime.
• Top air discharge design allows installation in narrow spaces where side clearance is limited, offering greater flexibility in kitchen layouts.
• EcoX R290 natural hydrocarbon refrigerant delivers energy-efficient operation with a low environmental impact compared to traditional synthetic refrigerants.

Key Features

• Head-only modular ice maker unit; requires a separate compatible storage bin (NB 393, NB 530, or NB 948 with CBT 48 EAMCD cover when NB 948 is used)
• 290 kg per 24-hour daily ice production rate
• Produces individual dice cubes measuring W 22 mm x D 22 mm x H 22 mm, each weighing approximately 10 g
• Air-cooled condensing unit
• XSafe Natural Sanitation System: high-power UV light generates a reactive oxygen mixture that continuously eliminates bacteria, mould, yeast, and viruses
• Agion antimicrobial technology resists microbial growth and odour development to produce pure, clear, and transparent ice cubes
• EcoX R290 natural hydrocarbon refrigerant gas for energy-efficient and environmentally responsible operation
• Vertical evaporator spray-system technology for consistent, clear ice formation
• T304 grade stainless steel exterior for durability, hygiene, and ease of cleaning
• Front evaporator access panel for straightforward servicing and maintenance
• One-touch button for easy cleaning cycles
• Auto-alert indicator lights display operation status and maintenance requirements at a glance
• Top air discharge suitable for installation in narrow or space-constrained locations
• Gravity drain only
• Electrical rating: 230-240 V, 1P+N+E, 50 Hz, 1600 W; 10 A cordset supplied
• Water consumption: 16.9 litres per hour
• Energy consumption: 36.6 kWh per 24 hours
• Dimensions: 760 mm (W) x 620 mm (D) x 575 mm (H)
• Includes removable air filter, water hose, and drain hose
• Optional stacking kit KSC 400-800 (also referenced as KSC 450) available for pairing NW 457 and NW 608 units
• Regular six-monthly water filter cartridge replacement and periodic evaporator de-scaling are required to maintain ice quality, machine longevity, and food safety compliance

Specifications

• Width (mm): 22
• Depth (mm): 22
• Height (mm): 22
• Weight (kg): 340.0
• Colour: Stainless Steel
• Water Consumption: 16.9 liters per hour
• Shipping Weight: 88
• Packed Width (mm): 760.0
• Packed Height (mm): 721.0
• Packed Depth (mm): 704.0
• Shipping Cubic: 0.385763840m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Energy Consumption (kWh/24h): 36.6kW/hr
• Capacity (Litres): 272
• Ice Production: 272
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Nugget/Cubelet
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
