Overview

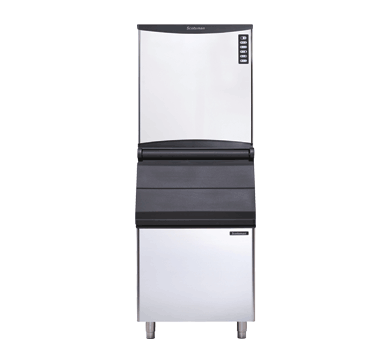

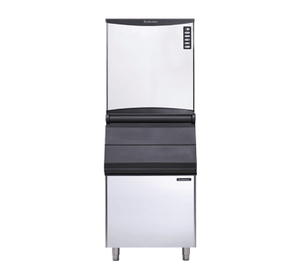

Scotsman NWH 1008 AS OX 456kg XSafe Modular Dice Ice Maker

The Scotsman NWH 1008 AS OX is a high-capacity modular dice ice maker head producing up to 456kg of half dice ice per day, designed for demanding commercial kitchens, bars and hospitality venues. Built with a T304 grade stainless steel exterior and vertical evaporator spray-system technology, it delivers consistently pure, clear and transparent 6g dice cubes using air-cooled refrigeration and R404a refrigerant gas.

This head-only unit pairs with a compatible storage bin and features Scotsman's XSafe Natural Sanitation System, which uses high-power ultraviolet (UV) light to generate a reactive oxygen mixture that continuously eliminates viruses, bacteria, mould and yeast, keeping ice clean, odourless and safe 24/7. Agion antimicrobial technology further inhibits microbial growth on internal surfaces, while front evaporator access, a one-touch cleaning mode and auto-alert indicator lights make routine servicing straightforward and efficient.

Key Benefits

• Up to 456kg daily ice production ensures a reliable, high-volume supply for busy service periods without interruption.
• XSafe UV-based natural sanitation operates automatically around the clock, eliminating bacteria, mould, yeast and viruses without manual intervention.
• Agion antimicrobial technology actively resists microbial growth and odour development, resulting in purer, cleaner-tasting ice.
• Dice ice with a large surface area chills beverages and bulk product rapidly, making it one of the most versatile ice types for drinks service, bulk cooling and ice bagging.
• Top air discharge design allows installation in narrow or confined spaces where side or rear clearance is limited.
• Front evaporator access simplifies routine descaling and maintenance, reducing labour time and keeping the machine performing at full capacity.
• One-touch cleaning mode reduces the time and skill required for regular sanitation cycles, lowering ongoing labour costs.
• Auto-alert indicator lights provide at-a-glance visibility of operational status and maintenance requirements, helping staff respond quickly to service needs.
• Modular head-only configuration offers flexibility to pair with a range of compatible storage bins and stackable arrangements to suit varying venue layouts and storage needs.

Key Features

• Head-only modular ice maker unit; storage bin sold separately
• Daily ice production capacity: up to 456kg
• Ice type: half dice cube, 6g per cube, individual cube dimensions W 10mm x D 22mm x H 28mm
• Air-cooled version
• R404a refrigerant gas
• XSafe Natural Sanitation System: high-power UV light generates reactive oxygen mixture to eliminate viruses, bacteria, mould and yeast continuously
• Agion Technology antimicrobial treatment resists microbial growth and odour development for pure, clear, transparent ice cubes
• Vertical evaporator spray-system technology for consistent, uniform ice formation
• T304 grade stainless steel exterior construction
• Top air discharge suitable for installation in narrow spaces
• Front evaporator access for easy servicing and descaling
• One-touch cleaning button for simplified, time-saving sanitation cycles
• Auto-alert indicator lights display operational status and maintenance requirements
• Includes removable air filter, water hose and drain hose
• Unit dimensions: W 760mm x D 620mm x H 800mm
• Packed weight: 122kg
• Compatible storage bins: SB 293, NB 393, NB 530, NB 948 (requires CBT 48 EAMCD cover when used with NB 948), UBH 1100
• Optional stacking kit: KSC 1000 (for use with NW 1008)
• Regular maintenance required: water filter cartridge replacement every 6 months and evaporator plate descaling to maintain ice quality, shape and thickness, and to extend machine life
• Maximum ambient operating temperature: 43°C
• Power supply: 230V 50Hz

Specifications

• Width (mm): 10
• Depth (mm): 22
• Height (mm): 28
• Weight (kg): 340.0
• Colour: Stainless Steel
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Capacity (Litres): 454
• Ice Production: 454
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Nugget/Cubelet
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
