Overview

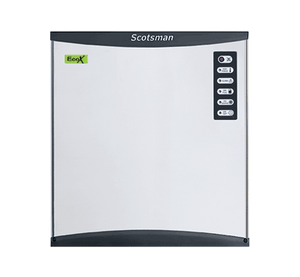

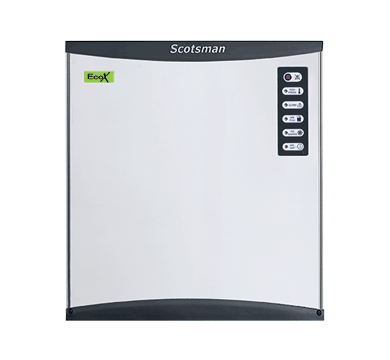

Scotsman NWH 307 AS OX 164kg EcoX & XSafe Modular Dice Ice Maker

The Scotsman NWH 307 AS OX is a modular, head-only dice ice maker producing up to 164 kg of crystal-clear, solid ice cubes per 24 hours, making it well suited to restaurants, bars, hotels, and high-volume catering operations. Each cube measures 10 mm x 22 mm x 28 mm and weighs 6 g, delivering slow-melting, perfectly clear ice that enhances premium beverage presentation. The unit runs on the eco-friendly EcoX R290 hydrocarbon refrigerant and features a vertical evaporator spray-system with top air discharge, allowing installation in narrow spaces where clearance is limited.

Scotsman's integrated XSafe Natural Sanitation System uses high-power ultraviolet (UV) light to generate a highly reactive oxygen mixture that circulates continuously through the machine, effectively eliminating bacteria, viruses, mould, and yeast around the clock without chemicals. Complementing this, Agion antimicrobial technology further resists microbial growth and odour development to ensure consistently pure, odourless ice. The T304 grade stainless steel exterior is built for durability and ease of cleaning, while front evaporator access and a one-touch cleaning button simplify routine servicing. A compatible storage bin (NB 193 or NB 393, with CBT 30 52 AMCD cover when using NB 393) is required and sold separately.

Key Benefits

• Produces up to 164 kg of dice ice per 24 hours, providing a reliable, high-volume supply for busy commercial service periods.
• XSafe UV-based sanitation operates automatically 24/7, continuously destroying bacteria, mould, viruses, and yeast without manual intervention.
• EcoX R290 natural hydrocarbon refrigerant delivers strong energy efficiency and a significantly lower environmental impact compared to synthetic refrigerants.
• Solid, slow-melting 6 g dice cubes stay clear longer in the glass, improving presentation quality for cocktails, soft drinks, and premium beverage service.
• Top air discharge design allows placement in narrow or confined spaces, offering greater flexibility in kitchen and bar layouts.
• Front evaporator access and a one-touch cleaning button reduce servicing time and make routine maintenance straightforward for kitchen staff.
• Agion antimicrobial technology built into the machine resists microbial growth and odour development, extending periods between deep cleans.
• Auto-alert indicator lights notify operators of current operating status and upcoming maintenance requirements, minimising unexpected downtime.
• Removable air filter, water hose, and drain hose are included, supporting easy installation and simplified ongoing filter maintenance.

Key Features

• Modular head-only unit requiring a compatible storage bin (NB 193 or NB 393); CBT 30 52 AMCD cover required when paired with NB 393
• 164 kg per 24-hour daily ice production capacity
• Dice ice cube dimensions: 10 mm (W) x 22 mm (D) x 28 mm (H), approximately 6 g per cube
• Air-cooled configuration
• EcoX R290 natural hydrocarbon refrigerant gas for eco-friendly, energy-efficient operation
• XSafe Natural Sanitation System using high-power UV light to generate reactive oxygen, eliminating bacteria, viruses, mould, and yeast continuously
• Agion antimicrobial technology integrated throughout to resist microbial growth and prevent odour development
• Vertical evaporator spray-system technology for consistent, clear ice production
• Top air discharge suitable for installation in narrow spaces
• Front evaporator access for straightforward servicing without moving the unit
• One-touch button for easy cleaning cycles
• T304 grade stainless steel exterior for durability and hygienic cleaning
• Auto-alert indicator lights displaying operational status and maintenance reminders
• Dimensions: 560 mm (W) x 610 mm (D) x 662 mm (H); packed weight 63 kg
• Includes removable air filter, water hose, and drain hose
• Water filter cartridge replacement recommended every 6 months; regular de-scaling of the refrigeration evaporator plate required to maintain ice quality, shape, and food safety

Specifications

• Width (mm): 10
• Depth (mm): 22
• Height (mm): 28
• Weight (kg): 340.0
• Colour: Stainless Steel
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Capacity (Litres): 200
• Ice Production: 200
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Nugget/Cubelet
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
