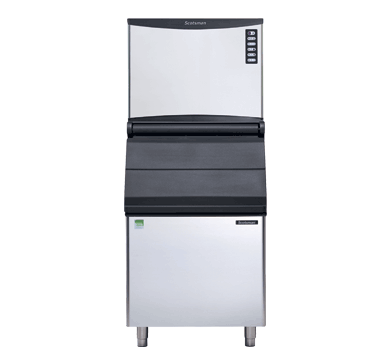

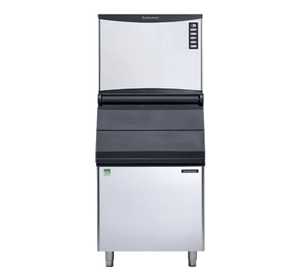

Scotsman NWH 608 AS OX 290kg XSafe Modular Ice Dice Ice Maker

The Scotsman NWH 608 AS OX is a high-capacity modular ice maker producing up to 290 kg of crystal-clear dice ice every 24 hours, making it well suited to restaurants, bars, hotels, and busy catering operations. This head-only unit pairs with a compatible Scotsman NB or UBH series storage bin to form a complete ice-making solution, and its compact 760 mm wide footprint with top air discharge allows installation even in narrow spaces.

At the heart of the NWH 608 AS OX is the integrated XSafe natural sanitation system, which uses high-powered ultraviolet light to generate a reactive oxygen mixture that continuously circulates through the machine, eliminating bacteria, mould, yeast, and viruses to deliver clean, odour-free ice around the clock. Combined with Agion antimicrobial technology on contact surfaces, vertical evaporator spray-system technology, and automatic rinse and purge cycles, this machine is engineered to maintain exceptional ice quality and hygiene with minimal operator intervention.

Key Benefits

• Produces up to 290 kg of solid, slow-melting dice ice per 24 hours to keep high-volume venues consistently supplied during peak service
• XSafe UV-based natural sanitation system runs automatically 24/7, eliminating bacteria, mould, yeast, and viruses without chemical additives for genuinely safe ice
• Agion antimicrobial technology on internal surfaces actively resists microbial growth and odour development, preserving pure, transparent ice cubes
• One-touch cleaning mode reduces labour time and simplifies routine maintenance for kitchen staff
• Top air discharge design allows the unit to be installed in narrower spaces where side or rear ventilation clearance is restricted
• Front evaporator access means technicians can service the refrigeration components quickly without moving the unit, reducing downtime
• Auto-alert indicator lights provide at-a-glance monitoring of operational status and maintenance requirements so issues are caught early
• Modular head-only design offers flexible pairing with multiple compatible Scotsman storage bin sizes and optional stacking kits to suit different venue layouts
• Regular water filter cartridge replacement every six months and periodic de-scaling of the evaporator plate extends machine life, improves ice shape consistency, and reduces bacterial risk

Key Features

• 290 kg per 24-hour daily ice production capacity
• Produces half dice cube ice: 10 mm wide x 22 mm deep x 28 mm high, approximately 6 g per cube
• Head-only (modular) configuration; requires a separate storage bin
• Compatible storage bins: NB 393, NB 530, NB 948 (NB 948 requires CBT 48 EAMCD cover); also compatible with UBH series bins
• XSafe natural sanitation system using high-powered UV light to generate reactive oxygen that eliminates viruses, bacteria, mould, and yeast
• Agion antimicrobial technology on contact surfaces resists microbial growth and odour development
• Vertical evaporator spray-system technology for consistent, clear ice formation
• Air-cooled operation
• Top air discharge suitable for narrow space installation
• Automatic rinse and purge cycles maintain ice clarity and internal hygiene
• One-touch button for easy cleaning cycle initiation
• Front evaporator access for straightforward servicing
• Auto-alert indicator lights display operational status and maintenance alerts
• T304 grade stainless steel exterior for durability and professional appearance
• R404a refrigerant gas
• Removable air filter, water hose, and drain hose included
• Optional stacking kit KSC 400-800 (KSC 450) for use with NW 457 / NW 608 series
• Dimensions: 760 mm wide x 620 mm deep x 575 mm high
• Packed weight: 92 kg
• Power supply: 230 V, 50 Hz (10 A)
• Country of manufacture: Italy/USA

Specifications

• Width (mm): 10
• Depth (mm): 22
• Height (mm): 28
• Weight (kg): 340.0
• Colour: Stainless Steel
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Capacity (Litres): 272
• Ice Production: 272
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Nugget/Cubelet
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
