Overview

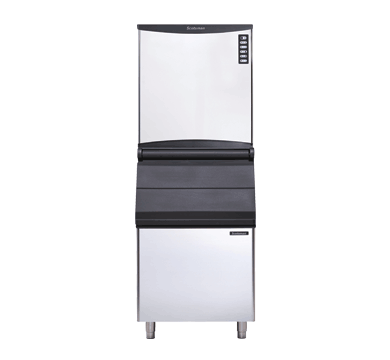

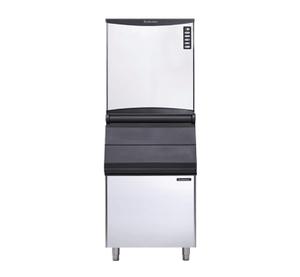

Scotsman NWL 1008 AS OX 456kg XSafe Modular Dice Ice Maker

The Scotsman NWL 1008 AS OX is a high-output modular dice ice maker producing up to 456 kg of crystal-clear ice cubes every 24 hours, purpose-built for large hospitality venues, hotels, restaurants, and busy beverage operations. Constructed with a T304 grade stainless steel exterior and featuring vertical evaporator spray-system technology, this head-only unit pairs with a compatible Scotsman NB or UBH series storage bin to form a complete, professional ice production setup.

At the heart of this machine is the XSafe Natural Sanitation System, which uses high-powered ultraviolet (UV) light to generate a highly reactive oxygen mixture that continuously circulates through the unit, eliminating bacteria, viruses, mould, and yeast around the clock without manual intervention. Agion Technology further resists microbial growth and odour development, ensuring every cube produced is pure, clear, and hygienic. A one-touch cleaning mode, front evaporator access, and auto-alert indicator lights make routine servicing and maintenance straightforward for any kitchen team.

Key Benefits

• Delivers up to 456 kg of dice ice per 24 hours, keeping pace with the highest-demand service periods in large venues.
• XSafe UV-based sanitation and Agion antimicrobial technology work continuously to eliminate bacteria, mould, viruses, and yeast, producing clean, odourless ice without extra labour.
• Classic 29 mm x 22 mm x 29 mm dice cubes weighing approximately 15 g each offer a large surface area for rapid chilling, making them ideal for cocktails, soft drinks, bulk cooling, and food display.
• One-touch cleaning mode and front evaporator access significantly reduce the time and effort required for routine servicing and deep cleaning.
• Top air discharge design allows installation in narrow or confined spaces where clearance around the unit is limited.
• Auto-alert indicator lights provide clear, at-a-glance feedback on operational status and upcoming maintenance needs, reducing the risk of unexpected downtime.
• Removable air filter, water hose, and drain hose are included, simplifying initial installation and ongoing filter maintenance.
• Modular configuration offers flexibility to match the unit with the most appropriate Scotsman storage bin (NB 393, NB 530, NB 948, or UBH 1100) for the venue's storage requirements.
• Regular six-monthly water filter cartridge replacement and evaporator de-scaling extend machine life, preserve ice shape and thickness, and reduce bacterial risk over time.

Key Features

• Head-only modular ice maker unit requiring a separate compatible storage bin.
• Daily ice production capacity: 456 kg per 24 hours.
• Individual dice cube dimensions: W 29 mm x D 22 mm x H 29 mm, approximately 15 g per cube.
• Air-cooled system with top air discharge, suitable for installation in narrow spaces.
• XSafe Natural Sanitation System: high-powered UV light generates a reactive oxygen mixture that continuously eliminates viruses, bacteria, mould, and yeast inside the machine.
• Agion Technology integrated into the ice-contact surfaces to resist microbial growth and prevent odour development, producing pure, clear, and transparent ice cubes.
• Vertical evaporator spray-system technology for efficient and consistent ice formation.
• T304 grade stainless steel exterior for durability, hygiene, and professional appearance.
• One-touch button for easy, time-saving cleaning cycle initiation.
• Front evaporator access panel for straightforward servicing and maintenance without moving the unit.
• Auto-alert indicator lights display real-time operational status and maintenance alerts.
• Compatible storage bins: NB 393, NB 530, NB 948 (requires CBT 48 EAMCD cover when used with NB 948), and UBH 1100.
• Includes removable air filter, water hose, and drain hose.
• Optional stacking kit KSC 1000 available for NW 1008 series installations.
• Unit dimensions: W 760 mm x D 620 mm x H 800 mm.
• Packed weight: 122 kg.
• Power supply: 230 V, 50 Hz.
• Water filter cartridge requires replacement every six months; evaporator plate requires periodic de-scaling to maintain ice quality and machine longevity.

Specifications

• Width (mm): 29
• Depth (mm): 22
• Height (mm): 29
• Weight (kg): 340.0
• Colour: Stainless Steel
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Capacity (Litres): 454
• Ice Production: 454
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Nugget/Cubelet
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
