Overview

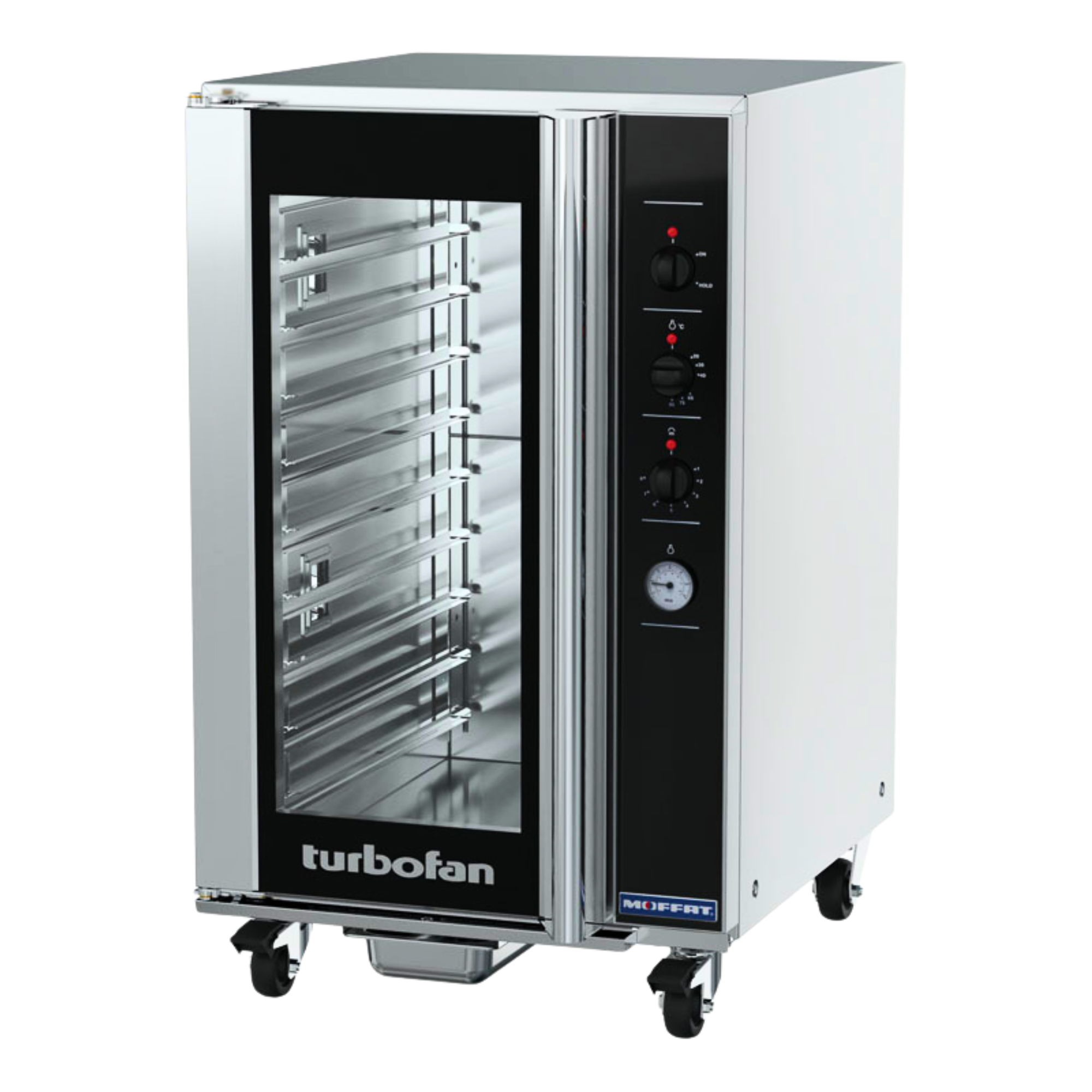

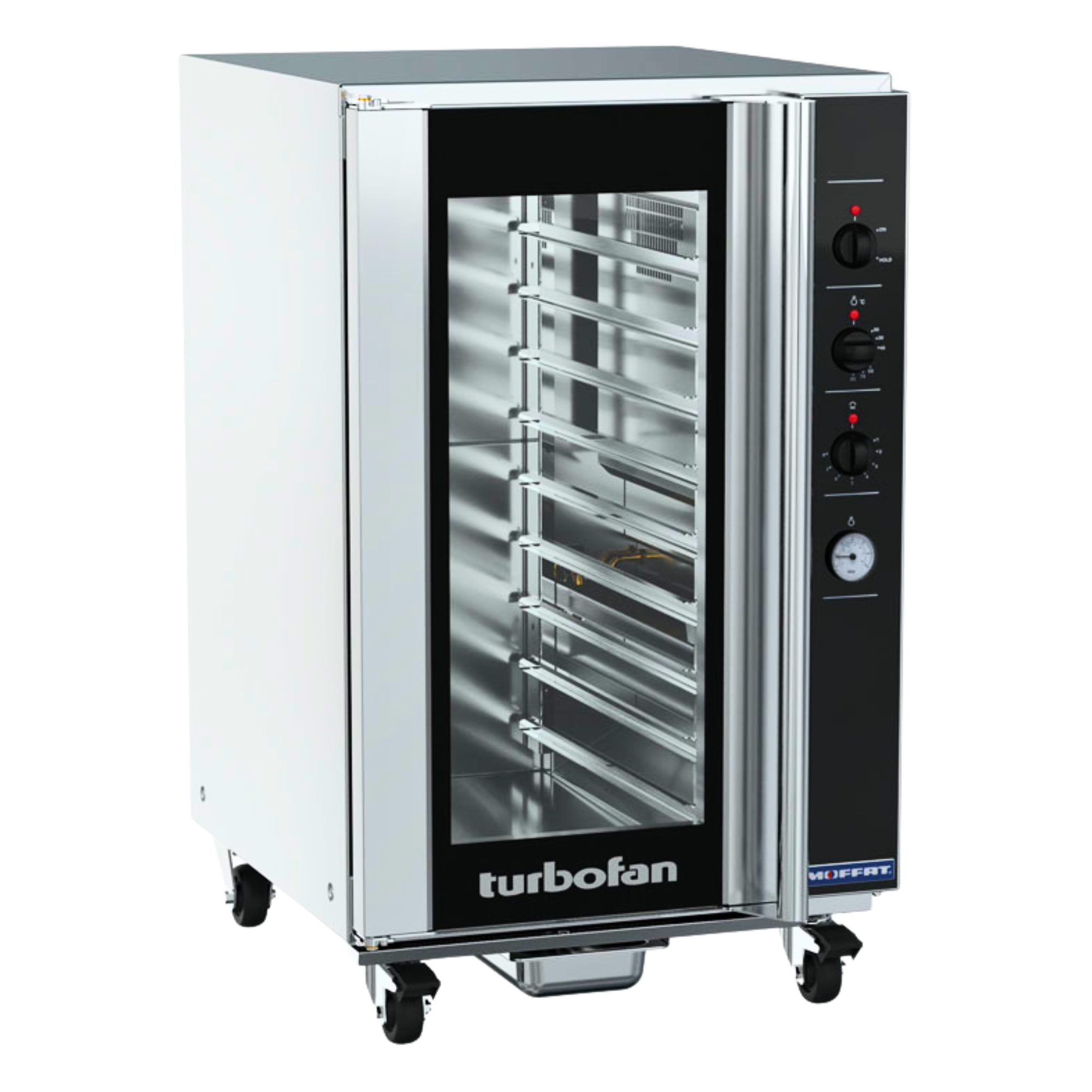

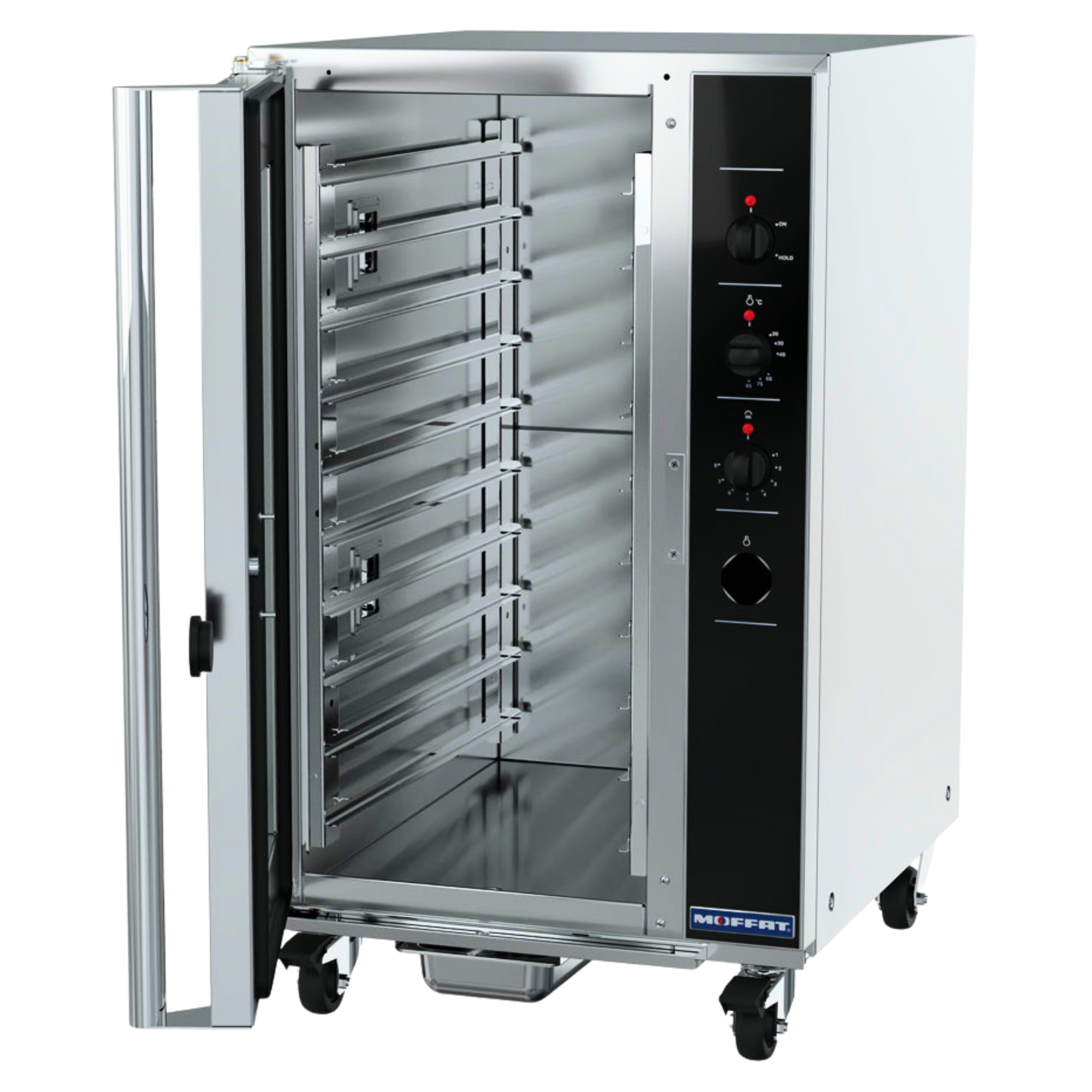

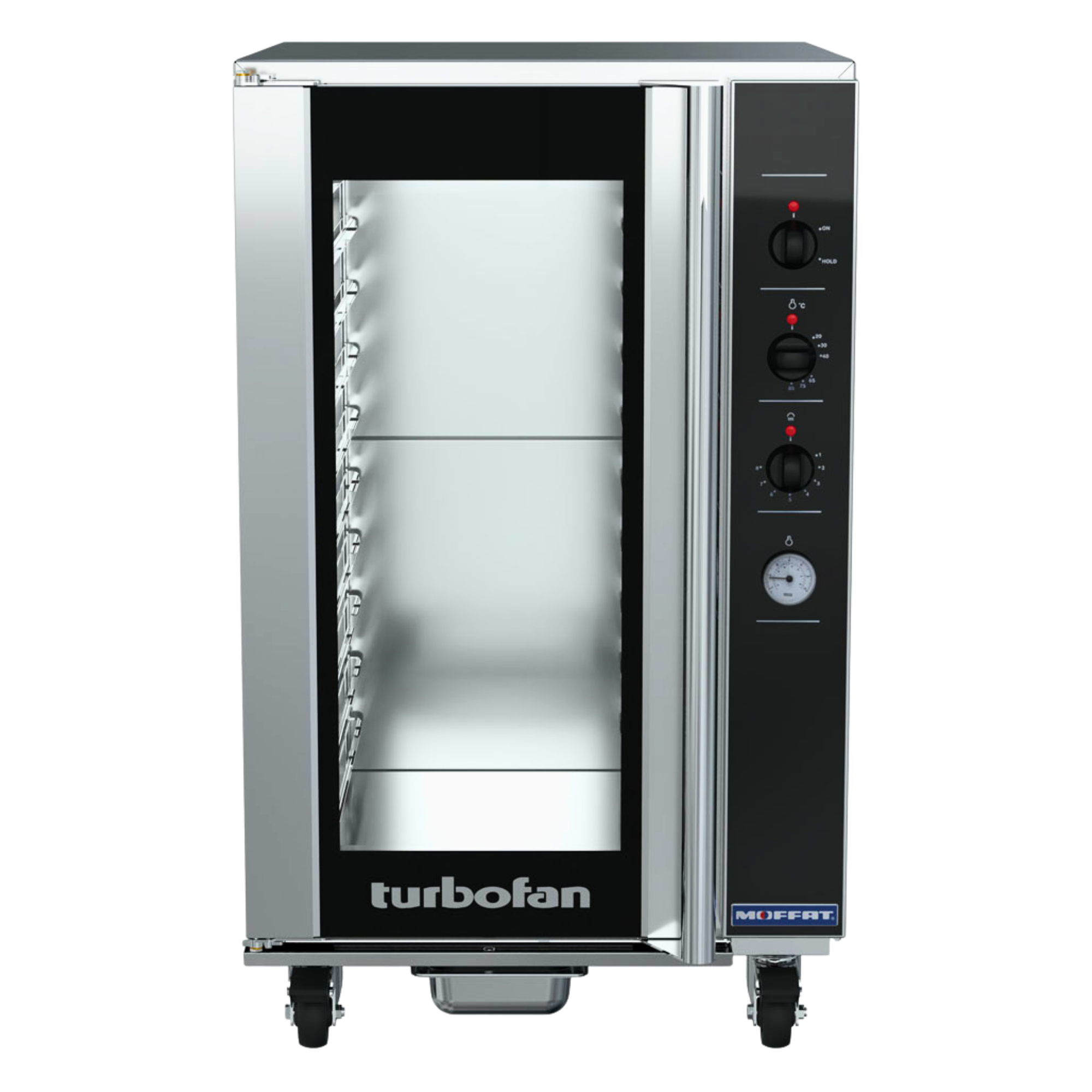

Turbofan P10M Half Size Tray Manual Electric Prover and Holding Cabinet

The Turbofan P10M is a compact manual electric prover and holding cabinet built from 304 stainless steel in New Zealand, delivering a generous 10 x 1/1 GN (12" x 20") tray capacity within a 610mm wide footprint. Its fully insulated double-skin construction retains heat efficiently, while the auto-fill humidity generator maintains ideal moisture levels throughout both proving and holding cycles. The unit connects via a standard single-phase plug-in cord set, making installation straightforward in any commercial bakery or kitchen environment.

Designed for standalone use or stacking directly with Turbofan E33 series convection ovens, the P10M integrates seamlessly into cook-prove-hold workflows. A simple Off/Prover/Hold mode selection dial and mechanical thermostat covering 20–85°C give operators clear, reliable control over temperature and humidity without complex programming. The cabinet is fitted with castors for easy repositioning and includes dual halogen interior lamps for at-a-glance product inspection without opening the door.

Key Benefits

• Compact 610mm width maximises usable floor space while still accommodating a full 10-tray GN load, ideal for kitchens where benchtop and floor space is limited.
• Three-mode dial (Off/Prover/Hold) lets staff switch between proving dough and holding finished baked goods with a single control, streamlining production workflows.
• Auto-fill water system maintains consistent humidity automatically, reducing manual monitoring and the risk of product drying out during long proving or holding periods.
• Fully insulated double-skin cabinet construction minimises heat loss, lowering running costs and maintaining stable internal temperatures even during busy service.
• Low-velocity circulation fan distributes warm, humid air gently around product, preventing surface skinning on dough and preserving texture and moisture in held items.
• Plug-in single-phase cord set means no hardwiring is required, allowing the unit to be operational immediately after delivery with minimal installation cost.
• Stacks compatibly with Turbofan E33 series convection ovens, enabling a compact, integrated prove-and-bake system that suits high-throughput bakery production.
• Castors with swivel-lock front wheels and rigid rear wheels allow safe, effortless repositioning for cleaning or reconfiguration of the kitchen layout.
• Cabinet temperature thermometer and control panel indicator lights provide clear, real-time feedback on heating and humidity status, reducing the chance of operator error.

Key Features

• 10 x 1/1 GN (12" x 20") steam pan tray capacity
• 74mm tray spacing accommodates a range of product heights
• Compact 610mm width footprint
• 304 stainless steel construction, manufactured in New Zealand
• Full double-skin cabinet construction for energy-efficient insulation
• Low-velocity circulation fan for gentle, even air distribution
• Off / Prover / Hold mode selection dial for simple operation
• Mechanical thermostat with 20–85°C temperature range
• Humidity level control with humidity tank ON indicator light on control panel
• Air heating ON control panel indicator light
• Cabinet temperature display thermometer
• Auto-fill water system standard; optional integrated water filter kit available
• Dual halogen cabinet interior lamps for product visibility without opening the door
• Continuous door seal retains heat and humidity
• Side-hinged door
• 4 x 76mm diameter castors: 2 swivel-lock dual-wheel front castors and 2 rigid rear castors
• Single-phase plug-in connection: 230–240V, 50Hz, 1P+N+E, 1.5kW, 6.3A, 10A cord set fitted
• Suitable for standalone use or stacking with Turbofan E33 series convection ovens
• 100% recyclable packaging

Specifications

• Width (mm): 610
• Depth (mm): 680
• Height (mm): 1015
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 95.3
• Packed Width (mm): 655.0
• Packed Height (mm): 830.0
• Packed Depth (mm): 1180.0
• Shipping Cubic: 0.641507000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Power Rating: 1.5kW|10A cordset fitted|1P+N+E|230-240V|50Hz|6.3A
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
• Voltage/Phase: 230-240V, 50Hz, 1P+N+E, 1.5kW, 6.3A
