Overview

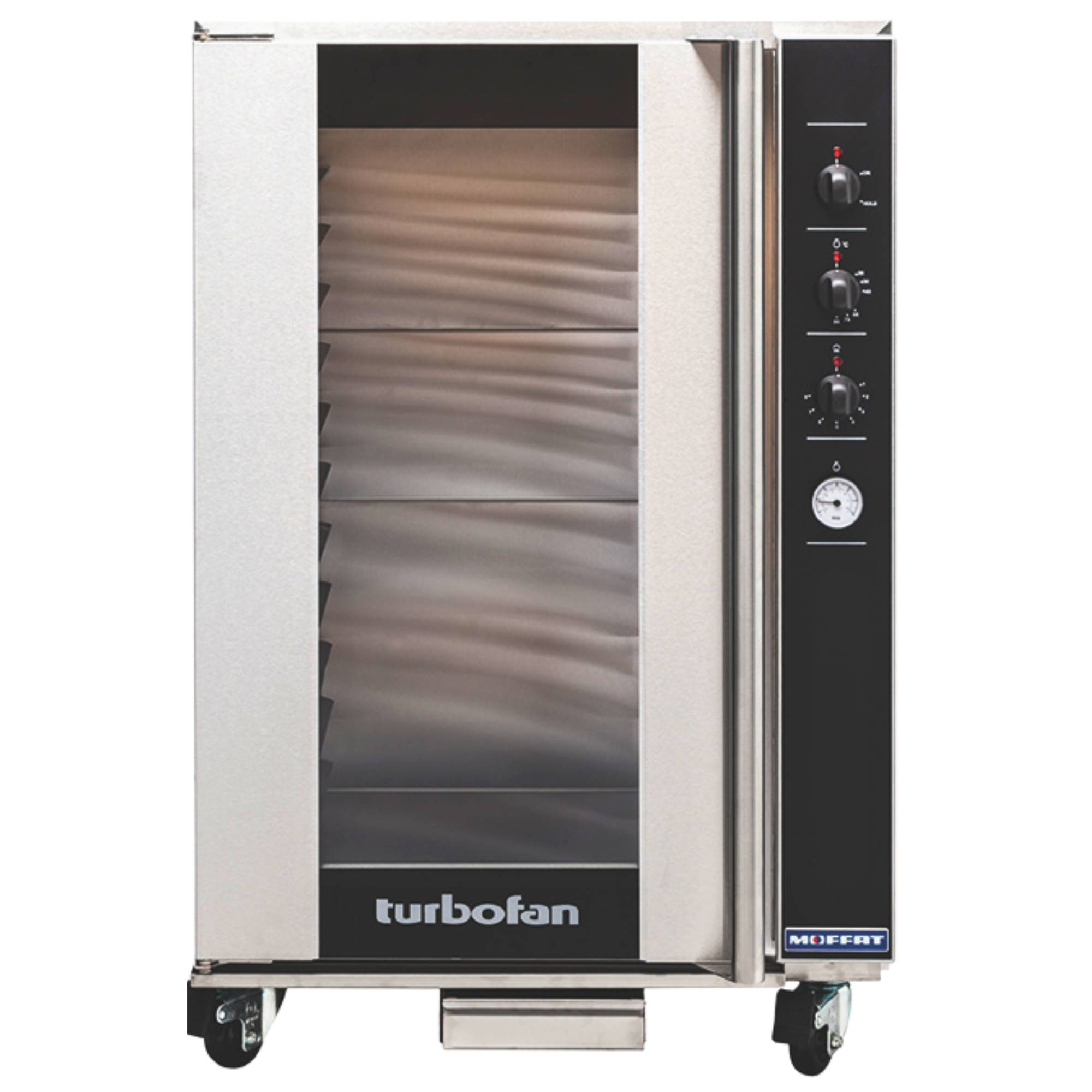

Turbofan P12M Full Size Tray Manual Electric Prover and Holding Cabinet

The Turbofan P12M is a dual-function electric prover and holding cabinet designed for busy commercial bakeries, restaurants, cafés, and catering operations. Built in New Zealand from 304 stainless steel with a fully insulated double-skin construction, it accommodates 12 full-size sheet pans (460 x 660mm) or 24 half-size pans (460 x 330mm) across 74mm-spaced runners, delivering consistent proving and holding results within a compact 735mm footprint.

The P12M operates as a standalone unit or stacks seamlessly with Turbofan E32 convection ovens to form an integrated bake-and-hold system. A simple Off/Prover/Hold mode dial, mechanical thermostat covering 20–85°C, and standard auto-fill humidity generation make it straightforward to switch between precise dough proofing and safe food holding, while a plug-in single-phase cord set means installation is quick and hassle-free.

Key Benefits

• Dual proving and holding capability in one cabinet reduces the need for separate equipment and saves valuable kitchen floor space.
• Stacks directly with Turbofan E32 convection ovens to create a compact, efficient bake-and-hold workflow without additional bench or floor space.
• Auto-fill water system maintains humidity automatically, reducing manual monitoring and helping operators focus on other kitchen tasks.
• Adjustable temperature range of 20–85°C covers the full spectrum from gentle dough proving through to safe hot food holding at serving temperature.
• Field-reversible door hinge accommodates left- or right-hand opening, making installation flexible regardless of kitchen layout.
• Plug-in 10A cord set provides straightforward single-phase installation with no hardwiring required, minimising setup time and cost.
• Low-velocity circulation fan distributes heat evenly throughout the cabinet, protecting delicate dough and cooked food from surface drying or temperature variation.
• Dual halogen interior lamps allow operators to check contents at a glance without opening the door and disrupting the internal environment.
• 100% recyclable packaging supports sustainability commitments without compromising the protection of the unit during transit.

Key Features

• 12 x 460mm x 660mm full-size sheet pan capacity
• 24 x 460mm x 330mm half-size sheet pan capacity
• 12 x 400mm x 600mm tray capacity available via optional racking kit
• 74mm tray spacing throughout
• Internal dimensions: W465 x D700 x H945mm
• Full double-skin insulated cabinet construction for efficient, consistent heating
• Off / Prover / Hold mode selection dial for straightforward operation
• Mechanical thermostat with temperature range of 20–85°C
• Auto-fill water system standard for automated humidity generation
• Optional integrated 3M Cuno water filter kit (cartridge and connection fittings included) with flush rear installation in pre-fitted housing
• Humidity level control on the control panel
• Humidity tank ON indicator light on control panel
• Air heating ON indicator light on control panel
• Cabinet temperature thermometer for at-a-glance monitoring
• Low-velocity circulation fan for gentle, even heat distribution
• Dual halogen interior cabinet lamps
• Glass door for visual monitoring of contents without opening the cabinet
• Field-reversible door for left- or right-hand hinge configuration
• 4 x 76mm diameter castors: 2 front dual-wheel swivel-lock castors and 2 rigid rear castors for easy manoeuvrability and stability
• Designed for standalone use or to stack with Turbofan E32 convection ovens
• 10A plug-in cord set fitted for single-phase connection (230–240V, 50Hz, 1P+N+E, 1.9kW, 8.0A)
• Compact 735mm width suitable for space-constrained kitchens
• Constructed from 304 stainless steel for durability, hygiene, and ease of cleaning
• Manufactured in New Zealand
• 100% recyclable packaging

Specifications

• Width (mm): 735
• Depth (mm): 810
• Height (mm): 1129
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 88
• Packed Width (mm): 760.0
• Packed Height (mm): 925.0
• Packed Depth (mm): 1295.0
• Shipping Cubic: 0.910385000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Power Rating: 1.9kW|10A cordset fitted|1P+N+E|230-240V|50Hz|8.0A
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
• Voltage/Phase: 230-240V, 50Hz, 1P+N+E, 1.9kW, 8.0A
