Overview

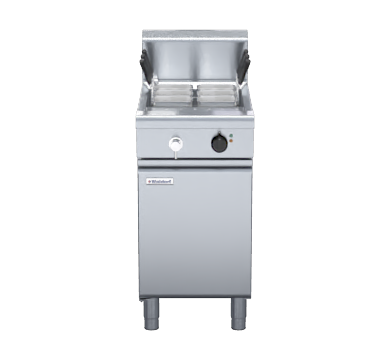

Waldorf PC8140E 800 Series 450mm Electric Pasta Cooker

The Waldorf PC8140E is a 450mm single-pan electric pasta cooker from the 800 Series, purpose-built for high-volume commercial kitchens. Its 40-litre open pan is constructed from easy-clean 316-grade stainless steel and is powered by a 10.5kW Incology 825 heating element, delivering fast heat recovery and consistent water temperatures to keep service running at pace.

Designed with a modular construction and a range of practical built-in features, the PC8140E simplifies pasta cookery from filling through to service. An integrated water faucet handles both pan filling and starch skimming, while the incorporated basket drain stand and six included stainless steel baskets make portion-controlled service straightforward. Adjustable feet and rear rollers allow easy positioning within a busy kitchen lineup.

Key Benefits

• High-output 10.5kW Incology 825 element delivers rapid heat recovery, reducing wait times between successive pasta batches during peak service.
• The 40-litre pan capacity supports continuous high-volume output, making the unit well suited to pasta bars and high-throughput restaurants.
• 316-grade stainless steel open pan resists corrosion and is easy to clean, helping maintain hygiene standards and reducing between-service downtime.
• Integrated water faucet with fine adjustment serves dual duty for pan filling and starch skimming, eliminating the need for separate equipment and streamlining workflow.
• Safety cut-out thermostat protects the element from damage caused by an empty pan or water boil-out, reducing the risk of costly repairs.
• Six stainless steel pasta baskets are included in the box, providing immediate portion-control capability without additional outlay.
• Incorporated basket drain stand keeps wet baskets off the benchtop, supporting a tidy and safe work area during service.
• Adjustable feet combined with rear rollers make installation and repositioning straightforward, accommodating varied kitchen floor configurations.
• Mechanical thermostat with variable high-to-low temperature control gives operators precise heat management for different pasta types and sauces.

Key Features

• 450mm wide single-pan configuration within the Waldorf 800 Series modular lineup
• 40-litre water capacity open pan
• 10.5kW Incology 825 heating element
• Pan constructed from 316-grade stainless steel for superior corrosion resistance and easy cleaning
• Unique pan design optimised for efficient heat transfer and consistent cooking results
• Integrated water faucet with fine flow adjustment for precise pan filling
• Same faucet provides starch skimming functionality, removing surface starch during service
• Safety cut-out thermostat activates on empty-pan or water boil-out conditions to protect the element
• Mechanical thermostat with variable high-to-low temperature control
• Incorporated basket drain stand built into the unit
• Supplied with 6 stainless steel pasta baskets
• Adjustable feet for levelling on uneven floors
• Additional rear rollers for easy repositioning
• Splashback included
• Electrical supply: 10.5kW, 400-415V, 50/60Hz, 3P+N+E (L1/L2/L3 each 14.6A)
• Body constructed from 304 stainless steel
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 124
• Packed Width (mm): 865.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 490.0
• Shipping Cubic: 0.531932000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 40
• Temperature Range: Boil to Simmer
• Fuel Type: Electric
• Power Rating: 10.5kW|3P+N+E|400-415V|50/60Hz|L1 14.6A|L2 14.6A|L3 14.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Voltage/Phase: 10.5kW, 400-415V, 50/60Hz, 3P+N+E
• Temperature Control: Variable High-Low
