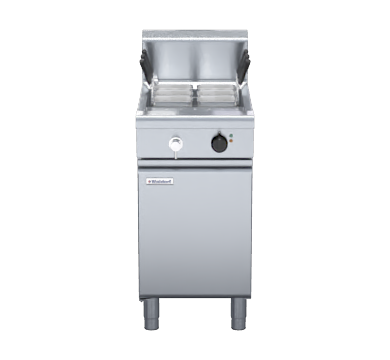

Waldorf PC8140E7 800 Series 450mm Electric Pasta Cooker

The Waldorf PC8140E7 is a high-performance single-phase electric pasta cooker from the Waldorf 800 Series, designed to meet the rigorous demands of busy commercial pasta bars, restaurants and catering operations. Built in New Zealand from 316 grade stainless steel, its 40-litre open pan and powerful 7kW Incology 825 heating element deliver rapid boiling and consistent heat recovery throughout service.

Thoughtfully engineered for ease of use and hygiene, the PC8140E7 features an integrated water fill and starch-skimming faucet, a fine-adjustment fill tap, an incorporated basket drain stand, and a safety cut-out thermostat that protects against empty-pan or water boil-out situations. Supplied complete with six stainless steel pasta baskets, this unit is ready to deliver portioned, consistent results from the moment it is installed.

Key Benefits

• Rapid heat recovery from the 7kW Incology 825 element keeps service moving during peak periods without delays between batches.
• Six included stainless steel pasta baskets allow simultaneous cooking of multiple pasta portions, improving throughput and portion control.
• The incorporated basket drain stand lets staff drain and hold cooked pasta directly above the pan, reducing mess and streamlining workflow.
• An integrated water fill and starch-skimming faucet simplifies pan management, allowing operators to top up water and remove surface starch without interrupting service.
• The safety cut-out thermostat automatically protects the unit if the pan runs dry or water boils out, reducing the risk of equipment damage and improving kitchen safety.
• Single-phase electrical connection (220-240V) offers straightforward installation without the need for three-phase power infrastructure.
• Adjustable feet and additional rear rollers make levelling and repositioning the unit quick and practical during kitchen setup or cleaning.
• The easy-clean 316 grade stainless steel open pan resists corrosion and starch build-up, minimising cleaning time at the end of service.

Key Features

• 450mm wide high-performance single pan pasta cooker from the Waldorf 800 Series
• 40-litre water capacity open pan in easy-clean 316 grade stainless steel
• 7kW Incology 825 heating element for fast heat-up and strong recovery
• Single-phase electrical supply: 220-240V, 1P+N+E, 50/60Hz
• Unique open pan design for unrestricted basket access and efficient starch management
• Integrated water fill faucet with fine adjustment for precise pan filling
• Integrated starch-skimming water faucet to maintain water quality during service
• Safety cut-out thermostat activates on empty pan or water boil-out to protect the unit
• Incorporated basket drain stand positioned above the pan for easy draining and holding
• Supplied with 6 stainless steel pasta baskets
• Adjustable feet for levelling on uneven floors
• Additional rear rollers for easier repositioning
• Splashback included
• Constructed from 304 stainless steel (exterior/structure) and 316 stainless steel (pan)
• Country of origin: New Zealand
• 24-month parts and labour warranty
• Dimensions: 450mm W x 805mm D x 1130mm H

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Shipping Weight: 120
• Packed Width (mm): 800.0
• Packed Height (mm): 1200.0
• Packed Depth (mm): 450.0
• Shipping Cubic: 0.432000000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 40
• Temperature Range: Boil to Simmer
• Fuel Type: Electric
• Power Rating: 220-240V|1P+N+E|50/60Hz|7.0kW|L1 29.2A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
