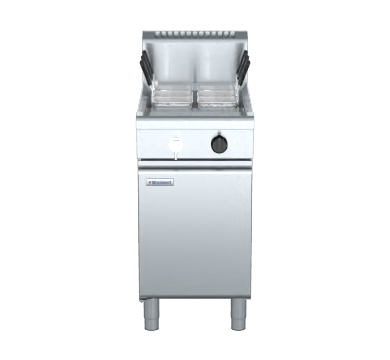

Waldorf PC8140G 800 Series 450mm Gas Pasta Cooker

The Waldorf PC8140G is a high-performance 450mm single-pan gas pasta cooker from the 800 Series, designed for the demands of busy commercial kitchens, pasta bars and high-volume food service operations. Built on a fully modular platform and manufactured in New Zealand, it features a patented infrared burner system that delivers a consistent 47MJ/hr of heat output, maintaining steady water temperature to minimise recovery times between batches and keep service moving without interruption.

The unit holds 40 litres in an easy-clean 316 grade stainless steel open pan and comes supplied with six stainless steel pasta baskets for efficient portion control. Practical design details include an integrated water fill and starch-skimming faucet, a fine-adjustment faucet for precise pan filling, a safety cut-out thermostat to protect against empty-pan or boil-out conditions, an incorporated basket drain stand, adjustable feet, and additional rear rollers for repositioning. Available in both natural gas and LPG configurations with a 3/4 BSP male gas connection.

Key Benefits

• Patented infrared burner technology maintains consistent water temperature, reducing batch recovery times and supporting faster product turnover during peak service
• Six included stainless steel pasta baskets enable accurate portion control and simultaneous cooking of multiple pasta varieties
• Integrated water fill and starch-skimming faucet streamlines pan management and helps maintain water quality throughout service
• Safety cut-out thermostat automatically shuts down the burner if the pan runs dry, protecting the equipment and kitchen staff
• 316 grade stainless steel open pan resists corrosion from constant water and starch exposure and wipes down quickly between services
• Incorporated basket drain stand keeps wet baskets off bench surfaces and allows draining without leaving the unit
• Adjustable feet combined with rear rollers make levelling straightforward and allow the unit to be repositioned easily for cleaning or reconfiguration
• Modular 800 Series design allows the cooker to be integrated into a suite of matching Waldorf equipment for a cohesive, space-efficient kitchen layout
• Available in both natural gas and LPG configurations, offering flexibility across different site requirements

Key Features

• 450mm wide high-performance single-pan pasta cooker, part of the Waldorf 800 Series modular range
• 40-litre water capacity open pan
• Patented infrared burner system rated at 47MJ/hr for rapid heating and stable temperature maintenance
• Pan constructed from easy-clean 316 grade stainless steel for superior corrosion resistance
• Integrated dual-function water faucet for pan filling and starch skimming
• Fine-adjustment water faucet for precise control when filling the pan
• Safety cut-out thermostat activates on empty-pan or water boil-out detection
• Incorporated basket drain stand built into the unit
• Supplied with 6 stainless steel pasta baskets
• Adjustable feet for levelling on uneven floors
• Additional rear rollers to assist with repositioning
• Splashback included; no undershelf
• Available in natural gas and LPG configurations
• Gas connection: R 3/4 (BSP) male
• Fully modular design for integration with other Waldorf 800 Series equipment
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 90
• Shipping Weight: 124
• Packed Width (mm): 865.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 490.0
• Shipping Cubic: 0.531932000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 40
• Temperature Range: Boil to Simmer
• Fuel Type: Gas
• Number of Burners: 2
• Power Rating: 25.0 kW
• Temperature Control: Variable High-Low
