Overview

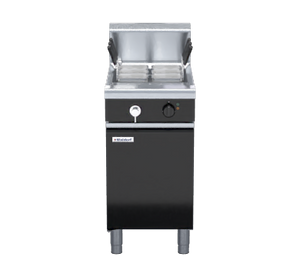

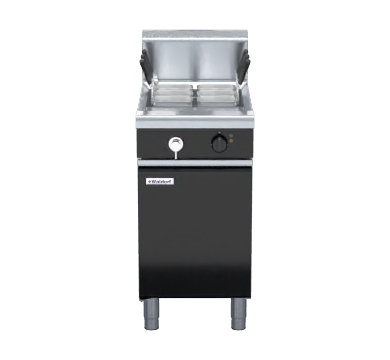

Waldorf PCB8140E Bold 450mm Electric Pasta Cooker

The Waldorf PCB8140E is a high-performance 450mm single-pan electric pasta cooker from the Bold range, purpose-built for busy commercial kitchens, pasta bars and high-volume food service operations. Powered by a heavy-duty 3-coil Incoloy 825 heating element rated at 10.5kW on 3-phase power, the unit holds 40 litres and delivers fast heat recovery to keep service moving without interruption.

Constructed with a 316-grade stainless steel open pan for superior corrosion resistance and easy cleaning, the PCB8140E features an integrated water fill and starch-skimming faucet, an incorporated basket drain stand, and a comprehensive suite of safety controls including a fail-safe over-temperature cut-out and an element tilt switch. The unit ships ready for service with six stainless steel pasta baskets fitted with moulded handle grips, making it a complete, modular solution from day one.

Key Benefits

• 40-litre pan capacity and fast heat recovery support continuous high-volume pasta cooking throughout service periods.
• Three power settings (boil, simmer and standby) allow precise energy management and keep pasta at the correct holding temperature between orders.
• Integrated starch-skimming and water-fill faucet simplifies water refreshing and pan maintenance without interrupting service.
• The incorporated basket drain stand lets staff drain and rest baskets efficiently, reducing handling time and splash hazards.
• A fail-safe over-temperature safety cut-out and element tilt switch protect the unit and kitchen staff if the pan runs dry or is tilted for servicing.
• 316-grade stainless steel open pan resists corrosion from starchy water and is straightforward to clean at the end of service.
• Fully modular design with adjustable feet and rear rollers makes installation, repositioning and servicing simple in any commercial kitchen layout.
• Six stainless steel baskets with moulded handle grips are included as standard, enabling portion-controlled cooking of multiple pasta varieties simultaneously.
• Available in custom colours beyond the default black finish, allowing the unit to complement a range of front-of-house or open-kitchen aesthetics.

Key Features

• 450mm-wide single-pan pasta cooker from the Waldorf Bold range.
• 40-litre water capacity open pan fabricated from 1.5mm 316-grade stainless steel for corrosion resistance and easy cleaning.
• Heavy-duty 3-coil Incoloy 825 heating element rated at 10.5kW; also available in a 7.0kW single-phase variant (PCB8140E7).
• 3-phase electrical supply: 400-415V, 50/60Hz, L1/L2/L3 each at 14.6A.
• Three power settings: boil, simmer and standby.
• Mechanical thermostat with a range of 30°C to 110°C and a large, heat-resistant reinforced control knob.
• Fail-safe over-temperature safety cut-out protects against dry-running or water boil-out.
• Element tilt switch cuts heating when the element is raised for servicing.
• Indicator lights for power and heating status.
• Fine-adjustment water faucet for precise pan filling and water refreshing or starch skimming.
• 25mm (1") skimming overflow and pan drain with drain valve.
• 304 stainless steel wire basket support grid inside the pan.
• Incorporated basket drain stand for safe, efficient basket draining.
• Six stainless steel pasta baskets with moulded handle grips supplied as standard.
• Bull nose welded from 1.5mm 304-grade stainless steel; splashback in 1.5mm 304 stainless steel.
• Side panels in 1.2mm 304-grade stainless steel; double-skin door with 0.9mm 304 stainless steel exterior.
• 150mm legs in 63mm-diameter heavy-duty 1.2mm 304 stainless steel with adjustable feet.
• Additional rear rollers for easy repositioning.
• Fully modular construction for straightforward servicing and integration into a Bold suite.
• Default colour is black; additional colour options available.
• Country of origin: New Zealand.
• 24-month warranty.

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 40
• Temperature Range: Boil to Simmer
• Fuel Type: Electric
• Power Rating: 10.5kW|3P+N+E|400-415V|50/60Hz|L1 14.6A|L2 14.6A|L3 14.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
