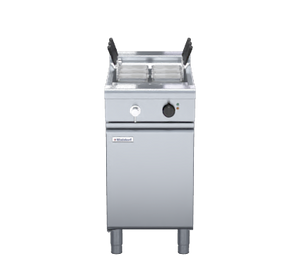

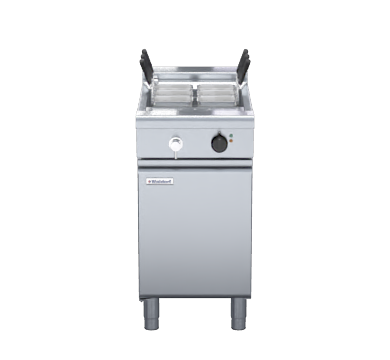

Waldorf PCL8140E 800 Series 450mm Electric Pasta Cooker

The Waldorf PCL8140E is a high-performance single pan electric pasta cooker from the 800 Series, designed for demanding commercial kitchen environments. Built to a 450mm wide footprint, it features a 40-litre open pan fabricated from 1.5mm 316-grade stainless steel and powered by a heavy-duty 3-coil Incoloy 825 heating element rated at 10.5kW, delivering rapid boil-up and reliable heat recovery throughout continuous service.

Every detail of the PCL8140E is engineered for efficiency and ease of use, from the integrated water fill and starch skimming faucet to the incorporated basket drain stand and fail-safe safety cut-out thermostat. The unit ships with stainless steel pasta baskets with moulded handle grips, adjustable feet and rear rollers for easy positioning, and a fully modular stainless steel construction that simplifies cleaning and servicing.

Key Benefits

• Rapid heat recovery from the 10.5kW Incoloy 825 element keeps service moving during high-volume pasta production.
• The 316-grade stainless steel open pan resists corrosion from starch-laden water and wipes down quickly between services.
• Integrated water fill and starch skimming faucet reduces the need for manual water management, saving time during busy service periods.
• Incorporated basket drain stand keeps drained baskets contained and off the bench, improving workflow and safety.
• The fail-safe over-temperature safety cut-out and element tilt switch protect the unit from dry-boil damage, extending equipment life.
• Three power settings (boil, simmer, standby) with a mechanical thermostat ranging from 30°C to 110°C give operators precise control over cooking conditions.
• Adjustable feet and rear rollers make repositioning straightforward for cleaning or reconfiguring the kitchen layout.
• A fully modular design simplifies access for routine servicing and maintenance, reducing downtime.

Key Features

• 450mm wide high-performance single pan pasta cooker from the Waldorf 800 Series
• 40-litre water capacity open pan, fabricated from 1.5mm 316-grade stainless steel for superior corrosion resistance
• Heavy-duty 3-coil Incoloy 825 heating element, rated 10.5kW, 3-phase (400–415V, 50/60Hz, 3P+N+E)
• Bull nose welded 1.5mm 304 stainless steel body construction; 1.2mm 304 stainless steel side panels
• Splashback in 1.5mm 304 stainless steel
• Double skin door with 0.9mm 304 stainless steel exterior
• 150mm legs in 63mm diameter 1.2mm 304 stainless steel tube with adjustable feet and additional rear rollers
• 304 stainless steel wire basket support grid inside the pan
• Integrated water fill and starch skimming water faucet with fine adjustment for pan filling and water refreshing
• 25mm (1") skimming overflow and pan drain valve
• Incorporated basket drain stand for safe, contained draining
• Supplied with stainless steel pasta baskets featuring moulded handle grips (no lid supplied)
• Large heat-resistant reinforced control knob with three power settings: boil, simmer and standby
• Mechanical thermostat with a range of 30°C to 110°C
• Fail-safe over-temperature safety cut-out thermostat for empty pan and water boil-out protection
• Element tilt switch that cuts heating when element is tilted
• Indicator lights for power and heating status
• Fully modular construction for easy servicing
• Splashback included; no undershelf
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 40
• Temperature Range: Boil to Simmer
• Fuel Type: Electric
• Power Rating: 10.5kW|3P+N+E|400-415V|50/60Hz|L1 14.6A|L2 14.6A|L3 14.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
