Overview

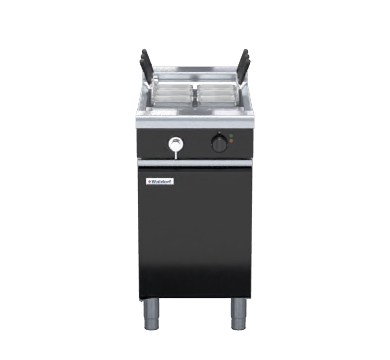

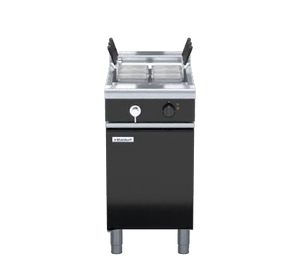

Waldorf PCLB8140E Bold 450mm Electric Pasta Cooker – Low Back, Single Pan

The Waldorf PCLB8140E is a high-performance 450mm single-pan electric pasta cooker from the Bold range, designed for the demands of busy commercial kitchens, pasta bars and high-volume food service operations. Built in New Zealand to exacting standards, it features a 40-litre 316 grade stainless steel open pan heated by a heavy-duty 3-coil Incoloy 825 element rated at 10.5kW, delivering rapid heat recovery and consistent boiling performance throughout service.

The unit ships with six stainless steel pasta baskets complete with moulded handle grips and an incorporated basket drain stand, enabling efficient portioned cooking and fast turnaround between batches. An integrated water fill and starch-skimming faucet with fine adjustment simplifies pan maintenance during service, while a safety cut-out thermostat protects against empty-pan and boil-out conditions. The fully modular construction, adjustable feet, rear rollers and low-back splashback configuration make this cooker straightforward to install, service and clean in a commercial line-up.

Key Benefits

• Heavy-duty Incoloy 825 heating element provides fast heat recovery so back-to-back pasta batches keep pace with peak service demand.
• Forty-litre open pan capacity accommodates multiple baskets simultaneously, supporting high-volume output without sacrificing portion control.
• Integrated starch-skimming and water-fill faucet allows operators to refresh pan water and skim starch build-up mid-service with minimal interruption.
• Six stainless steel baskets with moulded handle grips supplied as standard, so the unit is ready for immediate production without additional outlay.
• Safety cut-out thermostat and element tilt switch automatically cut heating power if the pan runs dry, protecting both the element and kitchen staff.
• Three power settings (boil, simmer, standby) plus a mechanical thermostat ranging 30°C to 110°C give operators precise control over cooking and holding temperatures.
• Adjustable feet and additional rear rollers make levelling and repositioning straightforward, reducing setup time during kitchen fitouts or reconfiguration.
• Fully modular design simplifies servicing and integration into Waldorf Bold suite line-ups, minimising downtime in commercial operations.

Key Features

• 450mm wide single-pan pasta cooker from the Waldorf Bold range
• 40-litre water capacity open pan constructed from 1.5mm 316 grade stainless steel for superior corrosion resistance
• Heavy-duty 3-coil Incoloy 825 heating element rated 10.5kW, 3-phase (400–415V, 50/60Hz, 3P+N+E; L1/L2/L3 each 14.6A)
• Bull nose welded splashback in 1.5mm 304 stainless steel; low-back configuration
• Side panels in 1.2mm 304 stainless steel; double-skin door with 0.9mm 304 stainless steel exterior
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel tube with adjustable feet and additional rear rollers
• 304 stainless steel wire basket support grid fitted inside the pan
• Six stainless steel pasta baskets with moulded handle grips included as standard (no lid on pasta cooker)
• Incorporated basket drain stand for draining and resting baskets between batches
• Integrated water fill and starch-skimming water faucet with fine adjustment for pan filling and water refreshing
• 25mm (1 inch) skimming overflow and pan drain valve
• Mechanical thermostat with range of 30°C to 110°C
• Three power settings: boil, simmer and standby
• Large heat-resistant reinforced control knob
• Indicator lights for power and heating status
• Fail-safe over-temperature safety cut-out thermostat for empty pan and water boil-out protection
• Element tilt switch that cuts heating power when element is raised
• Unique pan design for easy cleaning
• Fully modular construction for straightforward servicing and suite integration
• Default exterior colour is black; additional colour options available
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 40
• Temperature Range: Boil to Simmer
• Fuel Type: Electric
• Power Rating: 10.5kW|3P+N+E|400-415V|50/60Hz|L1 14.6A|L2 14.6A|L3 14.6A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
