Overview

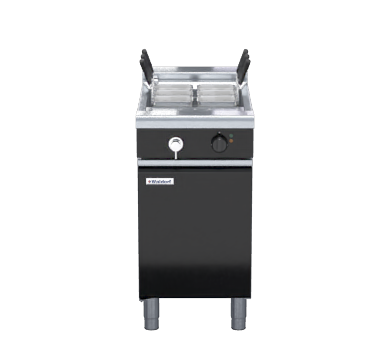

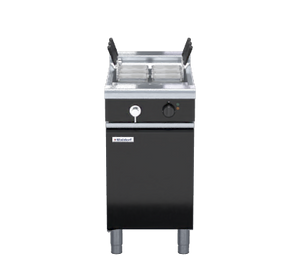

Waldorf PCLB8140E7 Bold 450mm Electric Pasta Cooker - Low Back

The Waldorf PCLB8140E7 Bold is a 450mm single pan electric pasta cooker designed for high-output commercial kitchens, pasta bars and busy food service operations. Built in New Zealand to Waldorf's robust Bold range standards, it features a 40-litre open pan fabricated from 316 grade stainless steel with a heavy-duty 3-coil Incoloy 825 heating element rated at 7.0kW on single phase power, delivering rapid heat recovery to keep service moving without interruption.

The unit ships with six stainless steel pasta baskets with moulded handle grips and an incorporated basket drain stand, making portion control and rapid turnaround straightforward during peak service. An integrated water fill and starch-skimming faucet with fine adjustment simplifies pan maintenance, while a safety cut-out thermostat protects the element against empty-pan or boil-out conditions. The fully modular design and easy-service construction make the PCLB8140E7 a practical long-term investment for any high-volume kitchen.

Key Benefits

• The 7.0kW Incoloy 825 heating element delivers fast heat recovery, minimising wait times between consecutive pasta batches during busy service periods.
• A 40-litre pan capacity supports continuous high-volume output, suitable for pasta bars, hotel kitchens and busy restaurants.
• Six stainless steel pasta baskets with moulded handle grips are included as standard, enabling simultaneous cooking of multiple portions and easy individual basket removal.
• The integrated water fill and starch-skimming faucet with fine adjustment allows hands-free pan topping and ongoing water quality management without interrupting service.
• A safety cut-out thermostat and element tilt switch prevent element damage from low water or boil-out conditions, reducing the risk of costly downtime.
• Fully modular construction simplifies installation alongside other Waldorf Bold series equipment and allows straightforward access for routine servicing.
• Adjustable feet and additional rear rollers make positioning and levelling on uneven kitchen floors quick and easy.
• 316 grade stainless steel open pan construction resists corrosion from hot starchy water and is simple to clean at the end of service.
• Three power settings (boil, simmer, standby) with a mechanical thermostat ranging from 30°C to 110°C give operators precise control over cooking conditions.

Key Features

• 450mm wide single pan pasta cooker from the Waldorf Bold modular range
• 40-litre water capacity 316 grade stainless steel open pan (1.5mm thickness)
• Heavy-duty 3-coil Incoloy 825 heating element, 7.0kW, single phase (220-240V, 1P+N+E, 50/60Hz, L1 29.2A)
• Three power settings: boil, simmer and standby
• Mechanical thermostat with range of 30°C to 110°C
• Fail-safe over-temperature safety cut-out thermostat for empty pan or water boil-out protection
• Element tilt switch provides additional heating cut-out safety
• Indicator lights for power and heating status
• Large heat-resistant reinforced control knob
• Integrated fine-adjustment water faucet for pan filling, water refreshing and starch skimming
• 25mm (1") skimming overflow and pan drain valve
• 304 stainless steel wire basket support grid inside pan
• Incorporated basket drain stand for easy basket management during service
• Six stainless steel pasta baskets with moulded handle grips supplied as standard (no lid on pasta cooker)
• Bull nose welded 1.5mm 304 stainless steel body construction
• 1.5mm 304 stainless steel splashback
• 1.2mm 304 stainless steel side panels
• Double skin door with 0.9mm 304 stainless steel exterior
• 150mm legs in 63mm diameter heavy-duty 1.2mm 304 stainless steel
• Adjustable feet and additional rear rollers for easy positioning and levelling
• Fully modular design compatible with other Waldorf Bold series units
• Default colour is black; other colour options available
• Country of origin: New Zealand
• 24-month warranty

Specifications

• Width (mm): 450
• Depth (mm): 805
• Height (mm): 970
• Weight (kg): 340.0
• Colour: Custom
• Gas Type: LPG / Natural Gas
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Capacity (Litres): 40
• Temperature Range: Boil to Simmer
• Fuel Type: Electric
• Power Rating: 220-240V|1P+N+E|50/60Hz|7.0kW|L1 29.2A
• Power Supply: 415V 3 Phase
• Voltage (V): 415
• Temperature Control: Variable High-Low
