Overview

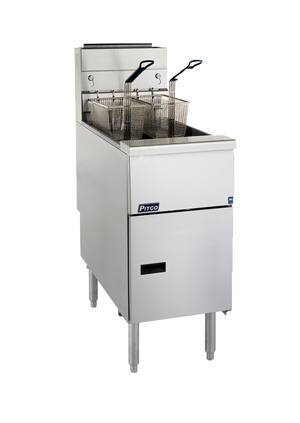

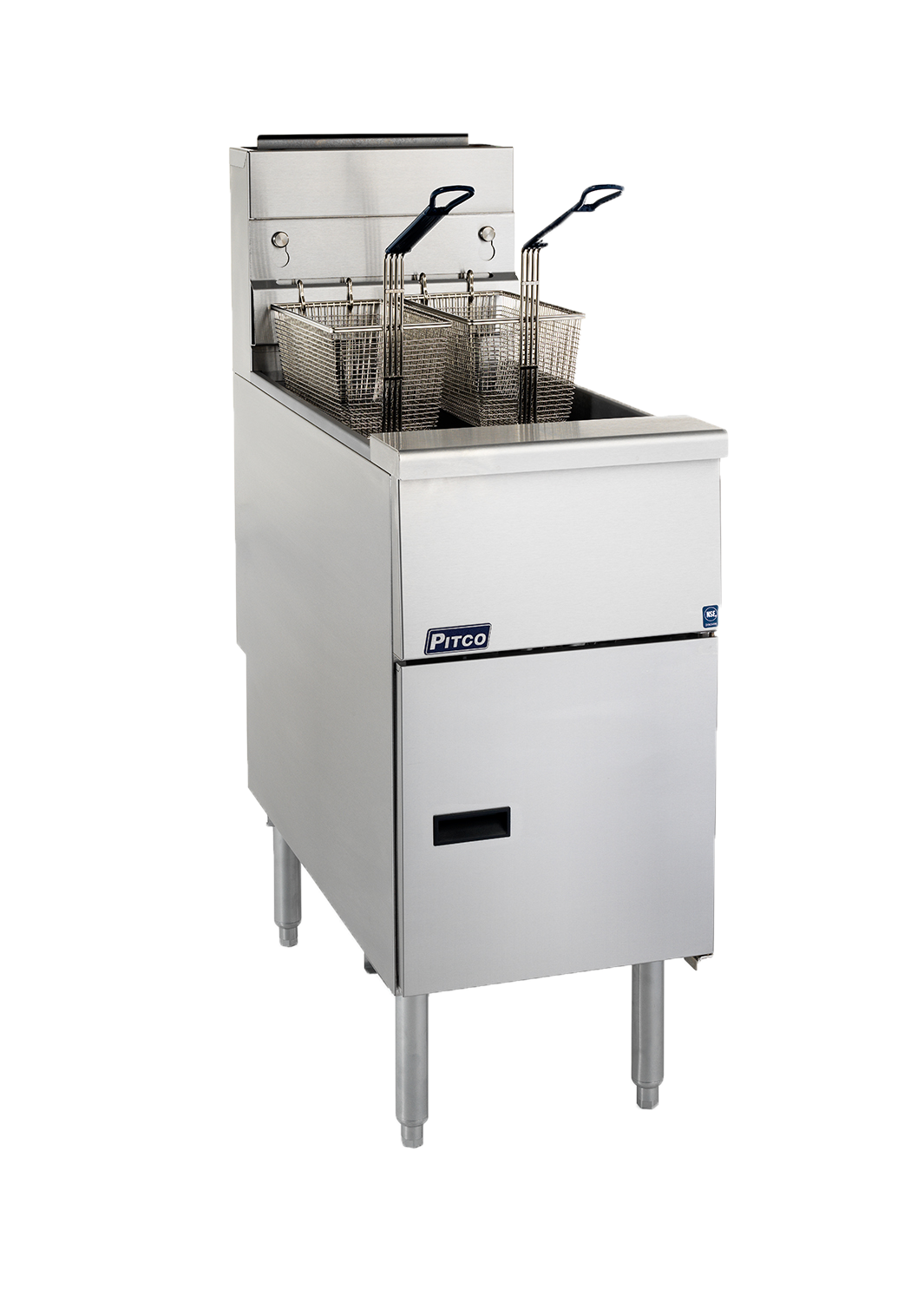

Pitco SG14S Millivolt Gas Fryer

The Pitco SG14S is a single-tank commercial gas fryer built around Pitco's patented Solstice Burner Technology, delivering a 119 MJ gas input and a production capacity of 40 kg of food per hour. The blower-free atmospheric heating system provides fast heat recovery without the complexity of ceramics or powered components, making it a dependable workhorse for high-volume commercial kitchens.

Constructed with stainless steel on the tank, cabinet front, door and sides, the SG14S is designed for durability, hygiene and ease of servicing. A millivolt thermostat with a thermo-safety pilot means the fryer operates independently of mains electricity, and the full-port drain valve, removable basket hanger and tube rack are all engineered to reduce cleaning time and keep downtime to a minimum.

Key Benefits

• High 40 kg per hour production output sustains continuous service during peak periods without lengthy delays between batches.
• Blower-free Solstice burner technology simplifies maintenance by eliminating powered components, reducing potential failure points in a busy kitchen.
• Millivolt thermostat operation requires no mains electrical connection for controls, providing reliable ignition and temperature management even during power disruptions.
• Fast heat recovery after each load keeps oil at the correct frying temperature, maintaining consistent food quality across consecutive batches.
• The 1¼-inch full-port drain valve allows rapid oil drainage, speeding up oil changes and reducing labour during cleaning routines.
• Nine-inch adjustable legs elevate the unit for easier cleaning underneath and allow height adjustment to suit different kitchen configurations.
• Front-access manual gas shutoffs and a tool-free removable basket hanger simplify routine servicing and reduce technician time on site.
• The integrated flue deflector and unique baffle design lower flue temperatures and improve the surrounding working environment compared to earlier fryer models.
• A tube rack channels crumbs and debris into the cool zone, extending oil life and reducing the frequency of full oil changes.

Key Features

• Solstice Burner Technology with patented burner and baffle design for improved cooking efficiency and lower flue temperatures.
• Blower-free atmospheric heating system with no ceramics required.
• 22 L oil capacity single stainless steel tank.
• Millivolt thermostat with temperature range 93°C to 190°C.
• Thermo-safety pilot with built-in regulator.
• High-temperature safety limit switch for added protection.
• Stainless steel construction throughout: tank, cabinet front, sides and door.
• Two fry baskets included for simultaneous cooking of multiple items.
• Lid included to contain oil splatter and improve safety.
• 1¼-inch (3.2 cm) full-port drain valve for fast oil draining.
• Tube rack design directs crumbs and sediment into the cool zone to protect oil quality.
• Removable basket hanger requires no tools for removal or reattachment.
• Separate manual gas shutoffs positioned at the front for straightforward servicing.
• Integrated flue deflector.
• Heavy-duty 3/16-inch bottom door hinge.
• 9-inch (22.9 cm) adjustable legs for easier under-unit access and cleaning.
• Drain line clean-out rod included.
• Drain extension included.
• Gas input rating of 119 MJ.
• Production capacity of 40 kg per hour.
• Overall dimensions: 397 mm wide x 875 mm deep x 1172 mm high.
• Unit weight: 95 kg.

Specifications

• Width (mm): 397
• Depth (mm): 875
• Height (mm): 1172
• Weight (kg): 95
• Shipping Weight: 95
• Packed Width (mm): 700.0
• Packed Height (mm): 1300.0
• Packed Depth (mm): 800.0
• Shipping Cubic: 0.728000000m3
• Capacity (Litres): 22 L oil
• Power / Gas Input: 119 MJ
