Overview

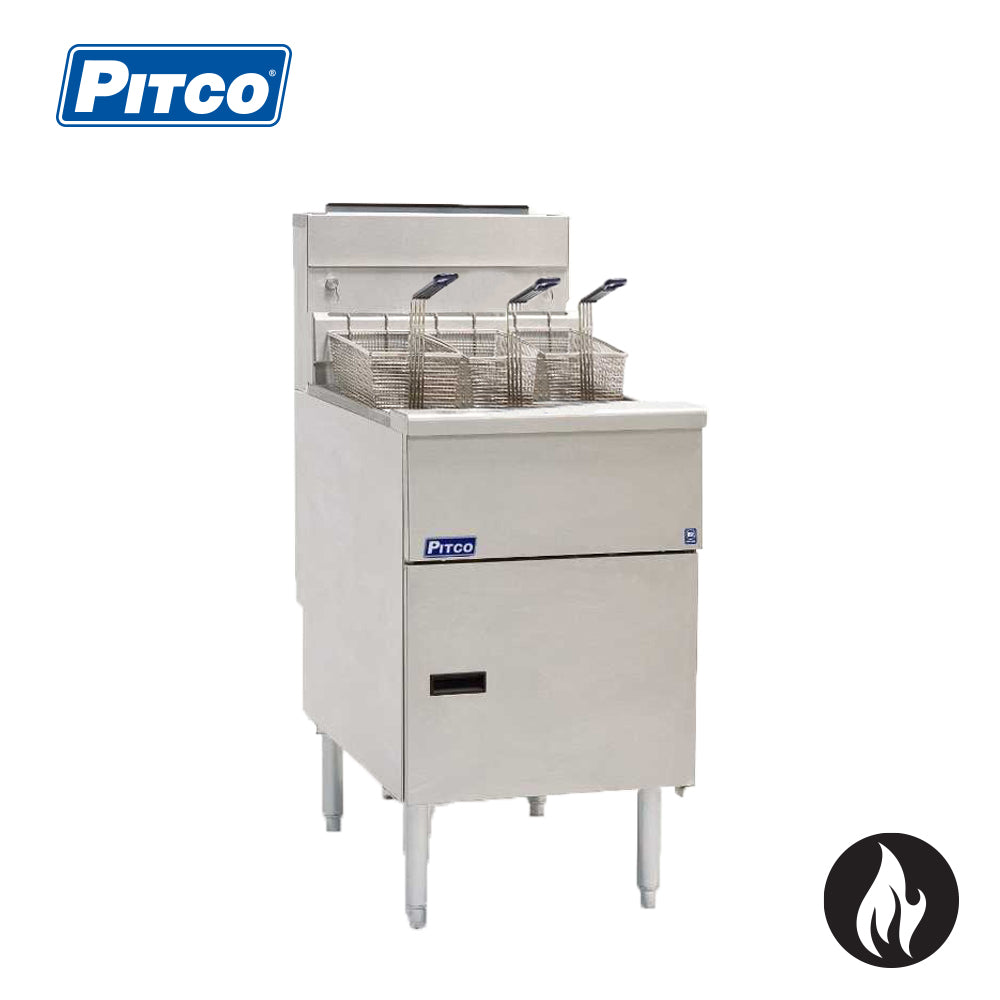

Pitco SG18S Millivolt Gas Fryer 38L

The Pitco SG18S is a high-production single-vat millivolt gas fryer built on Pitco's Solstice platform, delivering a reliable blower-free atmospheric heating system that provides fast heat recovery for continuous frying output. Patented Solstice burner and baffle technology increases cooking production, lowers flue temperatures, and creates a more comfortable working environment compared to previous fryer designs.

Holding 38 litres of oil and rated at 148 MJ gas input, the SG18S achieves a frying throughput of 70 kg per hour, making it well suited to high-volume commercial kitchens. Standard equipment includes three fry baskets, a night lid, and 9-inch adjustable legs, while the full stainless steel cabinet and tank construction ensures long-term durability, hygiene, and ease of cleaning.

Key Benefits

• Blower-free atmospheric heating delivers fast heat recovery so production keeps pace with peak service demand without the maintenance complexity of powered systems.
• Patented Solstice burner and baffle design boosts cooking output while reducing flue temperatures, improving comfort for kitchen staff working nearby.
• A 70 kg per hour frying capacity supports high-volume operations, reducing bottlenecks during busy service periods.
• Three included fry baskets allow different food products to be cooked simultaneously, improving kitchen efficiency and reducing wait times.
• The 1¼-inch full-port drain valve enables fast oil draining, simplifying oil changes and filtration to reduce downtime between services.
• Separate manual gas shut-offs accessible from the front make routine servicing and maintenance straightforward without moving the unit.
• Adjustable 9-inch legs elevate the fryer for easier cleaning underneath and allow height adjustment to suit the installation environment.
• The millivolt thermostat requires no external electrical connection for operation, making installation simpler and providing reliable performance even during power outages.
• A tube rack design directs crumbs and food debris into the cool zone, protecting oil quality and extending usable oil life.

Key Features

• Patented Solstice burner technology with blower-free atmospheric heating system; no blower motor or ceramics required
• 148 MJ gas input rating
• 38-litre oil capacity
• Frying production capacity of 70 kg per hour
• Millivolt thermostat with temperature range of 93°C to 190°C
• Thermo-safety pilot with built-in regulator
• High-temperature safety limit switch
• Stainless steel cabinet including front, sides and door
• Stainless steel tank for hygienic, corrosion-resistant frying
• Includes three fry baskets for simultaneous multi-product cooking
• Night lid included for safety and to minimise oil contamination during idle periods
• 9-inch (22.9 cm) adjustable legs for easier under-fryer cleaning and ventilation
• 1¼-inch (3.2 cm) full-port drain valve for rapid oil drainage
• Separate manual gas shut-offs positioned for front-access servicing
• Heavy-duty 3/16-inch bottom door hinge
• Tube rack allows crumbs and debris to fall into the cool zone, protecting oil quality
• Removable basket hanger requires no tools for removal
• Integrated flue deflector
• Drain line clean-out rod included
• Drain extension included
• Dimensions: 498 mm wide x 875 mm deep x 1172 mm high

Specifications

• Width (mm): 498
• Depth (mm): 875
• Height (mm): 1172
• Weight (kg): 103
• Shipping Weight: 103
• Packed Width (mm): 700.0
• Packed Height (mm): 1300.0
• Packed Depth (mm): 800.0
• Shipping Cubic: 0.728000000m3
• Capacity (Litres): 38 L oil
• Power / Gas Input: 148 MJ
