Overview

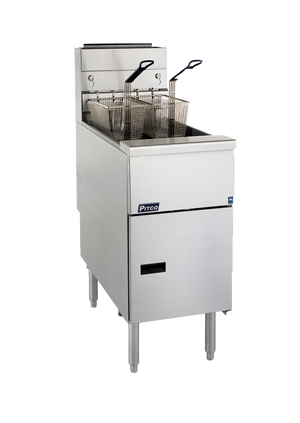

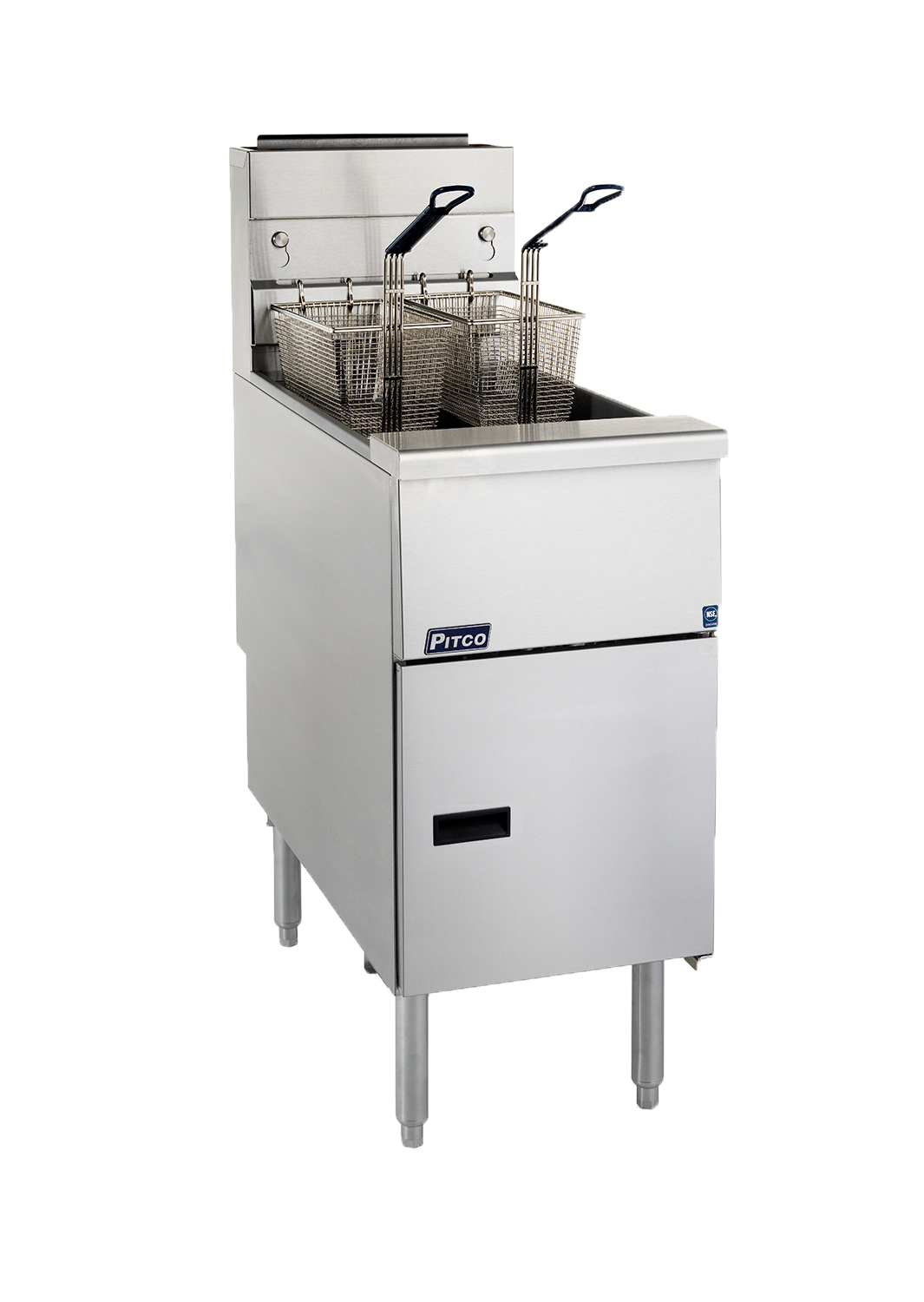

Pitco SG14TS Millivolt Gas Fryer (Split Tank)

The Pitco SG14TS is a high-production split-tank gas fryer built around the patented Solstice Burner Technology, delivering a blower-free atmospheric heating system that recovers temperature rapidly to maintain consistent output across a wide variety of fried foods. With a combined 2 x 11 litre oil capacity and a production rate of 35 kg per hour, it suits busy commercial kitchens that need reliable, continuous frying without complexity.

Constructed with stainless steel on the front, door and sides, the SG14TS is built to withstand the demands of heavy daily use. The millivolt thermostat requires no external electrical supply to operate, and the unique Solstice burner and baffle design reduces flue temperatures while improving the working environment compared to older tube fryer models.

Key Benefits

• Blower-free atmospheric heating system means no blower motor or ceramics to maintain, reducing ongoing servicing requirements.
• Fast heat recovery supports high-volume continuous frying at up to 35 kg per hour, keeping pace with busy service periods.
• Millivolt thermostat operates independently of mains electricity, making the fryer suitable for locations where electrical supply to cooking equipment is limited.
• Split-tank configuration allows two different products to be fried simultaneously, preventing flavour cross-contamination and maximising menu flexibility.
• The 1¼ inch full-port drain valve enables fast, efficient oil changes, reducing downtime between services.
• Separate manual gas shutoffs on the front of the unit allow servicing without moving the fryer out of its installed position.
• Tube rack design channels crumbs and debris into the cool zone, extending oil life and improving food quality.
• Adjustable 9 inch legs elevate the unit for easier cleaning underneath and around the fryer.

Key Features

• Split-tank design with 2 x 11 litre oil capacity (22 litres total)
• Patented Solstice Burner Technology with unique burner and baffle design for increased cooking production and lower flue temperatures
• Blower-free atmospheric heating system — no blower or ceramics required
• Millivolt thermostat with temperature range 93°C to 190°C
• Thermo-safety pilot with built-in regulator
• High-temperature safety limit switch
• Stainless steel construction: front, door and sides
• Gas input rating: 105 MJ (supplier) / 100 MJ (competitor reference)
• Production capacity: 35 kg per hour
• 1¼ inch (3.2 cm) full-port drain valve for fast oil draining
• Separate manual gas shutoffs for front-access servicing
• Integrated flue deflector
• Heavy-duty 3/16 inch bottom door hinge
• Tube rack directs crumbs and debris into the cool zone
• Removable basket hanger — no tools required for removal
• Adjustable legs: 9 inches (22.9 cm) for easier underfryer cleaning
• 2 fry baskets included
• Drain line clean-out rod included
• Drain extension included
• Dimensions: 397 mm wide x 875 mm deep x 1172 mm high
• Weight: 104 kg

Specifications

• Width (mm): 397
• Depth (mm): 875
• Height (mm): 1172
• Weight (kg): 104
• Shipping Weight: 104
• Packed Width (mm): 700.0
• Packed Height (mm): 1300.0
• Packed Depth (mm): 800.0
• Shipping Cubic: 0.728000000m3
• Capacity (Litres): 2 x 11 L oil
• Power / Gas Input: 105 MJ
