Overview

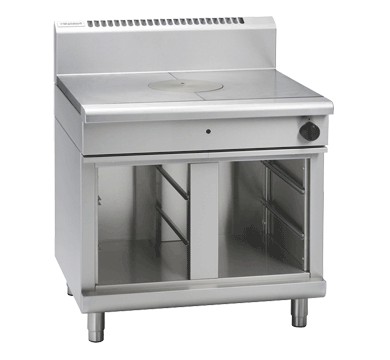

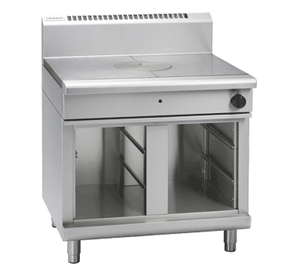

Waldorf RN8100G-CB 800 Series 900mm Gas Target Top with Cabinet Base

The Waldorf RN8100G-CB is a 900mm gas target top unit from the heavy-duty 800 Series, built in New Zealand from 304 stainless steel and designed for the rigorous demands of commercial kitchens. It features a single dual ring cast iron burner rated at 45 MJ/hr, delivering intense, focused heat suited to wok cooking, stock reduction, and high-output applications, all housed above a convenient cabinet base for underbench storage.

Compatible with both natural gas and LPG via an R 3/4 BSP male connection, the RN8100G-CB includes flame failure protection with a continuous pilot burner for safe, reliable ignition every time. Adjustable feet and two additional rollers allow flexible positioning on the kitchen floor, while the splashback, reinforced control knobs, and straightforward access points make daily cleaning, installation, and servicing genuinely practical.

Key Benefits

• 45 MJ/hr dual ring cast iron burner delivers high, concentrated heat ideal for wok cooking, rapid boiling, and sauce reduction in busy service environments.
• Flame failure protection combined with a continuous pilot burner improves operational safety by automatically cutting gas if the flame is extinguished.
• Variable high-low temperature control gives chefs precise heat adjustment without switching burners, supporting a wider range of cooking techniques.
• Cabinet base provides enclosed underbench storage directly beneath the cooking surface, keeping utensils and cookware within easy reach during service.
• Dual natural gas and LPG compatibility via a standard R 3/4 BSP male connection simplifies installation across different kitchen setups.
• Adjustable feet and two integrated rollers allow the unit to be levelled accurately and repositioned without heavy lifting, reducing kitchen reconfiguration effort.
• 304 stainless steel construction throughout resists corrosion, tolerates heavy daily use, and is straightforward to wipe down between services.
• Heavy-duty reinforced control knobs withstand repeated handling in demanding kitchen conditions, reducing wear and maintenance over time.
• Two-year parts and labour warranty backed by Waldorf's established commercial kitchen pedigree provides confidence in long-term reliability.

Key Features

• 900mm wide gas target top configuration on an enclosed cabinet base
• Single dual ring cast iron burner rated at 45 MJ/hr (15.3 kW)
• Flame failure safety device with continuous pilot burner for reliable re-ignition
• Variable high-low heat control via heavy-duty reinforced control knobs
• Compatible with natural gas and LPG; R 3/4 BSP male gas connection
• 304 stainless steel body and splashback included
• Cabinet base with door provides enclosed underbench storage
• Adjustable feet for levelling plus 2 additional rollers for repositioning
• Designed for easy cleaning, installation, and servicing
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 55
• Shipping Weight: 287
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Door Type: Cabinet Door
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable
• Fuel Type: Gas
• Number of Burners: 1
• Power Rating: 15.3 kW
• Temperature Control: Variable High-Low
