Overview

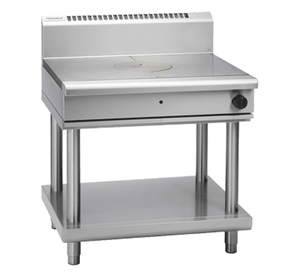

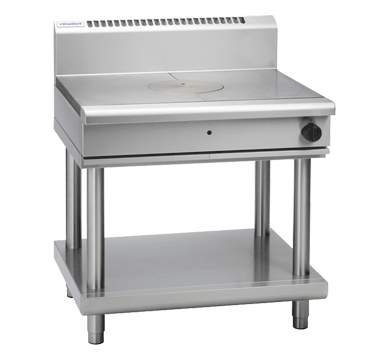

Waldorf RN8100G-LS 800 Series 900mm Gas Target Top with Leg Stand

The Waldorf RN8100G-LS is a heavy-duty 900mm gas target top from the Waldorf 800 Series, mounted on a leg stand for freestanding installation in commercial kitchens. It features a single dual-ring cast iron burner rated at 45 MJ/hr, designed to deliver intense, concentrated heat ideal for large stockpots, woks, and high-volume cooking tasks. Compatible with both natural gas and LPG, it suits a wide range of Australian commercial kitchen setups.

Built from 304 stainless steel throughout, this unit is engineered for demanding professional environments where durability, hygiene, and ease of maintenance are essential. Safety is addressed through flame failure protection and a continuous pilot burner, while practical inclusions such as adjustable feet, two additional rollers, and heavy-duty reinforced control knobs make daily operation straightforward. The removable centre ring adds further versatility for different cookware configurations.

Key Benefits

• The 45 MJ/hr dual-ring cast iron burner delivers powerful, even heat for high-output cooking tasks such as large-batch stock and sauce production.
• Flame failure protection automatically cuts gas flow if the flame extinguishes, reducing the risk of gas build-up and improving kitchen safety.
• A continuous pilot burner ensures quick, reliable re-ignition without the need for separate ignition tools during a busy service.
• The removable centre ring allows use with both flat-bottomed and round-bottomed cookware, adding versatility for different menu requirements.
• Adjustable feet and two additional rollers make positioning and levelling straightforward, even on uneven kitchen floors.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use and provide precise flame adjustment.
• 304 stainless steel construction resists corrosion and is easy to sanitise, supporting food safety and reducing cleaning time.
• Compatibility with both natural gas and LPG gives operators flexibility when installing in venues with different gas supply infrastructure.
• The leg stand configuration keeps the unit at a comfortable working height and allows easy access beneath for cleaning and servicing.

Key Features

• Single 45 MJ/hr dual-ring cast iron burner providing concentrated, high-intensity heat output
• Removable centre ring for compatibility with a broader range of cookware types
• Flame failure protection cuts gas supply if the flame is accidentally extinguished
• Continuous pilot burner for consistent and reliable ignition during service
• Heavy-duty reinforced control knobs built to endure heavy commercial use
• Variable high-low temperature control for precise heat management
• Leg stand mount with adjustable feet for stable, level installation
• Two additional rollers included to assist with unit positioning and movement
• 304 stainless steel construction throughout for durability and hygiene
• Stainless steel splashback included as standard
• Undershelf included for additional storage or equipment placement
• Compatible with both natural gas and LPG via R 3/4 BSP male gas connection
• Designed for easy cleaning, installation, and servicing
• Part of the modular Waldorf 800 Series for flexible kitchen configuration
• Manufactured in New Zealand
• 24-month parts and labour warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 55
• Shipping Weight: 223
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Yes
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable
• Fuel Type: Gas
• Number of Burners: 1
• Power Rating: 15.3 kW
• Temperature Control: Variable High-Low
