Overview

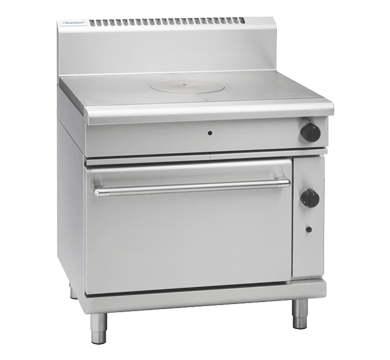

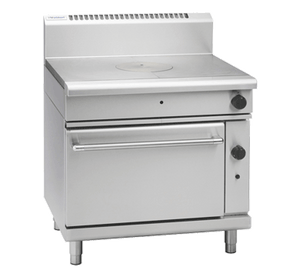

Waldorf RN8110G 800 Series 900mm Gas Target Top Static Oven Range

The Waldorf RN8110G is a 900mm commercial gas range from the 800 Series, combining a high-performance target top hob with a 2/1 GN gas static oven. The dual-ring cast iron burner delivers 45MJ/hr with excellent heat recovery and precise control, while a burner box lined with 50mm refractory ceramic blocks maximises thermal efficiency. Constructed from 304 stainless steel and manufactured in New Zealand, this unit is built to endure the rigours of continuous commercial kitchen operation.

Designed with practicality in mind, the RN8110G offers a generous 900mm x 625mm cooking surface, flame failure protection with a continuous pilot burner, and a vitreous enamel-lined welded oven cavity for straightforward cleaning. The unit is available in both natural gas and LPG configurations and is compatible with the Waldorf 800 Series modular system, allowing it to be paired with a cabinet base, leg stand, refrigeration base, or an alternative oven base to suit the specific demands of any professional kitchen.

Key Benefits

• Dual-ring cast iron burner with 50mm refractory ceramic block lining delivers rapid heat recovery and consistent, precise temperature control across the full cooking surface.
• A 2/1 GN capacity static oven provides ample space for high-volume roasting and baking, supporting efficient commercial output during peak service periods.
• Flame failure protection combined with a continuous pilot burner enhances operational safety, automatically cutting gas supply if the flame is extinguished.
• Vitreous enamel-lined welded oven interior resists staining and grease build-up, making post-service cleaning faster and more thorough.
• Cool-touch stainless steel door handle and drop-down oven door with welded frame allow safe, ergonomic access to the oven cavity even during extended cooking sessions.
• Adjustable feet and two additional rollers simplify repositioning during cleaning or kitchen reconfiguration without requiring additional tools or labour.
• Modular 800 Series compatibility allows the unit to be configured as a standalone hob or combined with multiple base options, adapting to changing kitchen layouts or menu requirements.
• Available in both natural gas and LPG configurations, providing installation flexibility across a wide range of commercial venues.

Key Features

• 900mm wide gas target top oven range from the Waldorf 800 Series modular platform
• 45MJ/hr dual-ring cast iron burner with 900mm x 625mm cooking surface area (5,625cm²)
• Centre burner ring diameter of 280mm; maximum plate temperature at centre reaches 500°C
• Burner box lined with 50mm refractory ceramic blocks for enhanced thermal efficiency
• 2/1 GN gas static oven with welded lining finished in vitreous enamel for durability and easy cleaning
• Flame failure protection and continuous pilot burner as standard safety features
• Drop-down oven door with welded frame construction for rigidity and longevity
• Cool-touch stainless steel oven door handle
• Heavy-duty reinforced control knobs for reliable, long-term use in demanding environments
• Adjustable feet plus two additional rollers for levelling and ease of movement
• Splashback included; no undershelf
• 304 stainless steel construction throughout
• Compatible with cabinet base, leg stand, refrigeration base, or alternative static/convection oven bases within the 800 Series modular system
• Available in natural gas and LPG configurations; R 3/4 (BSP) male gas connection
• Variable high-low temperature control
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 55
• Shipping Weight: 324
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable
• Fuel Type: Gas
• Number of Burners: 1
• Cooking Surface Area (mm): 900mm x 625mm, 5625cm2
• Power Rating: 15.3 kW
• Temperature Control: Variable High-Low
