Overview

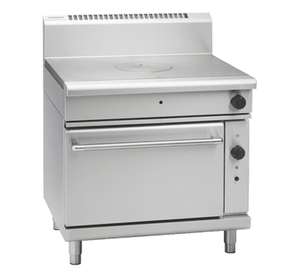

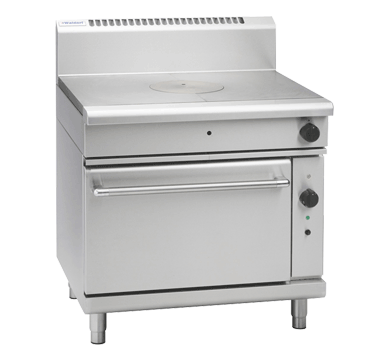

Waldorf RN8110GC 800 Series 900mm Gas Target Top Convection Oven Range

The Waldorf RN8110GC is a 900mm modular gas range from the renowned 800 Series, combining a high-output dual-ring cast iron target top burner with a 2/1 GN gas convection oven beneath. Designed and manufactured in New Zealand from 304 stainless steel, it suits busy commercial kitchens, bakeries, and catering operations requiring consistent, high-volume cooking performance across both the hob and oven simultaneously.

The target top burner delivers 45MJ/hr of intense, even radiant heat, making it ideal for wok-style cooking, large stockpots, and heat-intensive preparations. The unit is compatible with a range of 800 Series base configurations, including cabinet base, leg stand, refrigeration base, or oven base, giving operators the flexibility to build a modular cooking suite tailored to their workflow. Both natural gas and LPG connections are supported via a 3/4" BSP male fitting.

Key Benefits

• The 45MJ/hr dual-ring cast iron burner provides exceptional heat recovery and precise temperature management, reducing wait times during high-demand service periods.
• Fan-forced convection heat in the 2/1 GN oven ensures even temperature distribution across multiple trays, supporting consistent batch baking and roasting results.
• A burner box lined with 50mm refractory ceramic blocks improves thermal efficiency, retaining heat within the cooking zone and reducing gas consumption.
• Flame failure protection and a continuous pilot burner deliver an important safety safeguard in busy kitchen environments where burners may be accidentally extinguished.
• The drop-down oven door with welded frame allows easy, full access to the oven cavity for loading and unloading large gastronorm trays without obstruction.
• Vitreous enamel-lined welded oven internals resist staining and grease buildup, simplifying routine cleaning and maintaining hygienic cooking conditions.
• Adjustable feet and two additional rollers make positioning straightforward during installation and allow the unit to be moved for cleaning or reconfiguration as kitchen needs evolve.
• Modular compatibility with multiple 800 Series base options gives operators the ability to expand or reconfigure their cooking line without replacing the range itself.
• A cool-touch stainless steel door handle and heavy-duty reinforced control knobs improve operator comfort and durability under the demands of continuous commercial use.

Key Features

• 900mm wide 800 Series modular gas range with target top and integrated convection oven
• 45MJ/hr dual-ring cast iron burner delivering high heat output and superior heat recovery
• 900mm x 625mm cooking surface area (5,625cm2) with a 280mm diameter centre ring
• Maximum plate temperature at centre reaches 500°C
• Burner box insulated with 50mm refractory ceramic block lining for improved thermal efficiency
• 2/1 GN capacity gas convection oven with fan-forced heat distribution
• Flame failure protection and continuous pilot burner for safe, reliable operation
• Drop-down oven door with welded frame for unobstructed tray access
• Welded oven lining finished with vitreous enamel for easy cleaning and durability
• Cool-touch stainless steel oven door handle for operator comfort
• Heavy-duty reinforced control knobs designed for repeated commercial use
• Variable high-low temperature control
• Adjustable feet plus two additional rollers for levelling and repositioning
• Compatible with cabinet base, leg stand, refrigeration base, and static or convection oven base configurations
• Accepts both natural gas and LPG via R 3/4" BSP male gas connection
• Electrical supply: 0.13kW, 0.6A, 1P+N+E, 230-240Vac, 50/60Hz (for convection fan motor)
• Constructed from 304 stainless steel with splashback included
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Burner Output (MJ/h): 55
• Shipping Weight: 330
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: No
• Splash Back: Yes
• Country of Origin: New Zealand
• Warranty (months): 24
• Temperature Range: Variable
• Fuel Type: Gas / Electric
• Number of Burners: 1
• Cooking Surface Area (mm): 900mm x 625mm, 5625cm2
• Power Rating: 0.13kW|0.6A|1P+N+E|230-240Vac|50/60Hz
• Temperature Control: Variable High-Low
