Overview

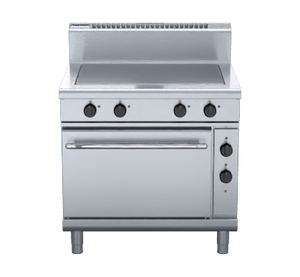

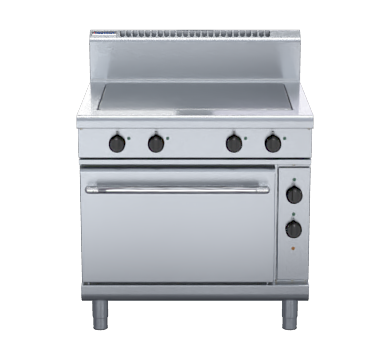

Waldorf RN8114E 800 Series 900mm Electric Solid Top Static Oven Range

The Waldorf RN8114E is a 900mm wide commercial range from the Waldorf 800 Series, combining a high-output electric solid top with a full-size GN 2/1 static oven. The solid hot plate delivers 10.8kW across a 750mm x 570mm cooking area divided into four independently controlled zones, each rated at 2.7kW with a six-position switch, giving chefs precise control over different cooking tasks simultaneously.

The oven cavity is powered by a 6.5kW electric static element and features a fully welded, vitreous enamelled liner for easy cleaning and long-term durability. A cast iron sole plate promotes even heat distribution throughout the cavity, while thermostatic control spanning 50 to 320°C with a Lo-Hi top heat setting suits a wide range of baking, roasting and holding applications. The unit is fully modular in design, and a low-back model (RNL) is available for installations requiring a reduced height profile.

Key Benefits

• Four independently controlled 2.7kW heating zones allow multiple cooking tasks to run simultaneously at different temperatures, improving kitchen efficiency.
• The 16mm thick 16Mo3 chrome moly steel plate retains and distributes heat evenly across the cooktop surface, reducing hot spots and supporting consistent cooking results.
• A 6.5kW GN 2/1 static oven accommodates full gastronorm trays, maximising batch cooking capacity for busy service periods.
• Thermostatic control from 50 to 320°C with Lo-Hi top heat adjustment gives operators a broad cooking range suitable for delicate bakes through to high-heat roasting.
• Cast iron oven sole plate ensures even bottom heat distribution, benefiting baked goods and roasts that require consistent base temperatures.
• Individual power indicator lights for each element control let kitchen staff monitor active zones at a glance, reducing energy waste and the risk of leaving elements on unintentionally.
• Vitreous enamelled, fully welded oven liner resists staining and is straightforward to wipe down, reducing cleaning time between services.
• Fully modular construction simplifies servicing and allows the unit to integrate into a broader Waldorf 800 Series suite.
• A low-back variant (RNL) is available for venues with overhead clearance restrictions or specific ventilation requirements.

Key Features

• 900mm wide electric solid top on static oven configuration
• 10.8kW total solid hot plate output
• 750mm x 570mm cooktop cooking area
• Four independent heating zones, each rated at 2.7kW
• Four six-position switches for individual heating zone temperature control
• 16mm thick 16Mo3 chrome moly steel solid plate
• GN 2/1 capacity electric static oven rated at 6.5kW
• Drop-down oven door for easy access and tray loading
• Thermostatic oven control ranging from 50°C to 320°C
• Lo-Hi top heat control for additional flexibility
• Fully welded and vitreous enamelled oven liner
• Cast iron even-heat oven sole plate
• Individual power indicator light for each element control
• Heavy-duty stainless steel exterior finish
• Fully modular design for straightforward cleaning and servicing
• Low-back model (RNL) available as an alternative configuration

Specifications

• Width (mm): 900
• Depth (mm): 805
• Height (mm): 1130
• Weight (kg): 340.0
